Brand: Hubbell

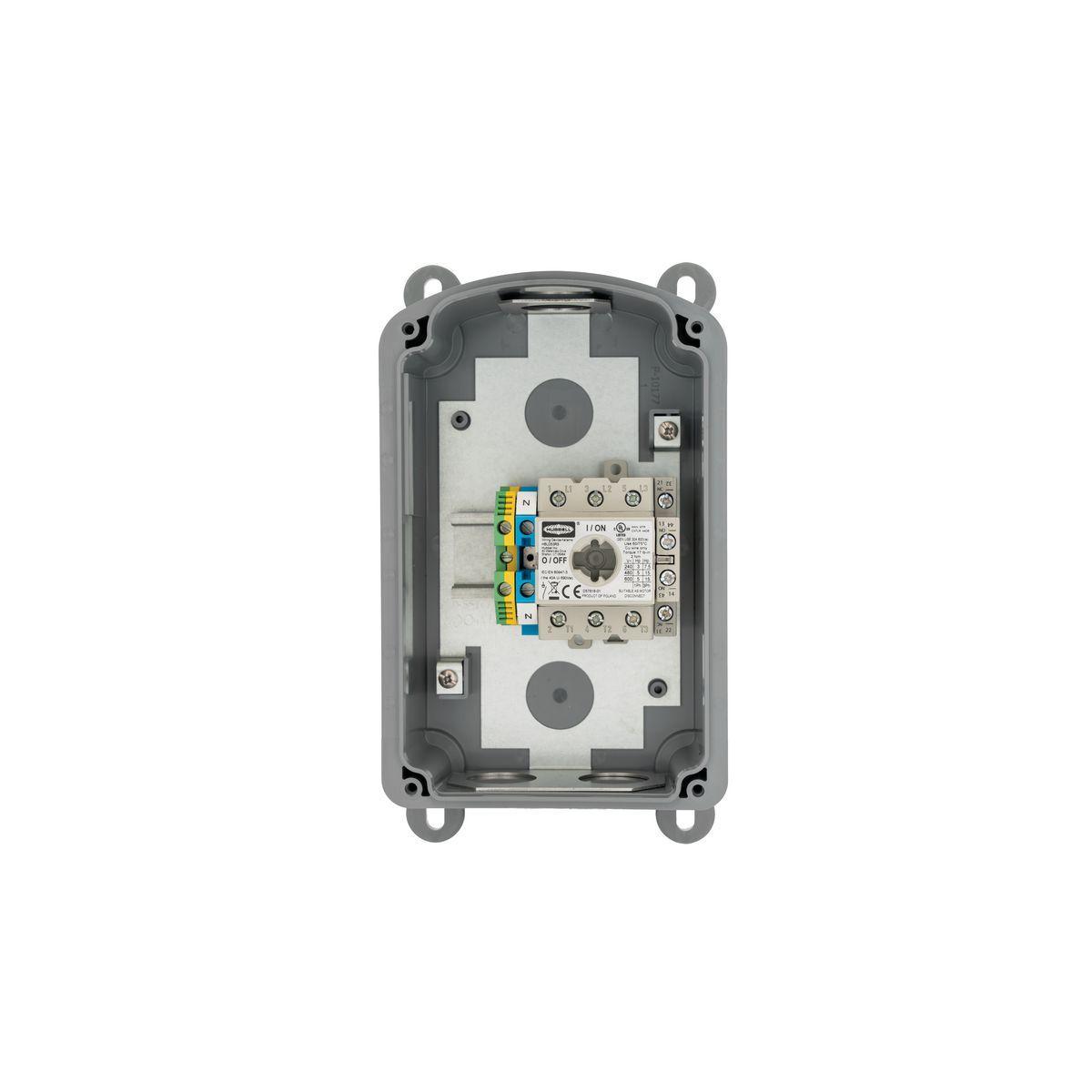

Hubbell HBLDS30VFD
Image Disclaimers Message
Brand: Hubbell
Hubbell HBLDS30VFD
Brand: Hubbell
Hubbell HBLDS30VFD
Part #:HBLDS30VFD
SKU #: 2438810
$307.14/EA
Key Features
Part #:HBLDS30VFD
SKU #: 2438810
Brand: Hubbell
Actuator Type: Handle
Amperage Rating: 30 A
Contact Form: 3PST
Dimensions: 4.12 in H x 6 in W x 8.5 in L
Enclosure Type: NEMA 4X/12/IP69K
$307.14/EA
Only 5 left in stock order soon
Ships in 1 Business Day
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
- IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
- Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
- Product rating are permanently laser-marked and will not wash off
- Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
- Factory installed HBLAC2 auxiliary contact is "Break Before Main Break", 1 set of N/O contacts for VFD applications
Specifications
Brand: Hubbell
Actuator Type: Handle
Amperage Rating: 30 A
Contact Form: 3PST
Dimensions: 4.12 in H x 6 in W x 8.5 in L
Enclosure Type: NEMA 4X/12/IP69K
Horsepower: 15 hp
Insulation Type: Neoprene
Number of Poles: 3
Number of Wires: 5
Phase: 3
Short Circuit Current Rating (kA): 65 kA
Temperature Rating (Degrees F): -40 to 75 deg F
Terminal Type: Screw
Type: Heavy Duty
Voltage Rating: 600 VAC
Color: Gray
Material: Stainless Steel
Mounting type: External Fully Adjustable Feet
Manufacturer Name: Hubbell
UNSPSC: 39121521
UPC: 00078358576306
Hubbell HBLDS30VFD
Additional Description: HUBW-HBLDS30VFD NM SLOPED DISC, 30A UNFUSED, 4X,VFD AUX
Catalog Description: Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12, Non-Metallic Sloped Top Enclosure, HBLAC2 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A
Item FeaturesHeavy Duty Industrial and/or Washdown
Item Features
