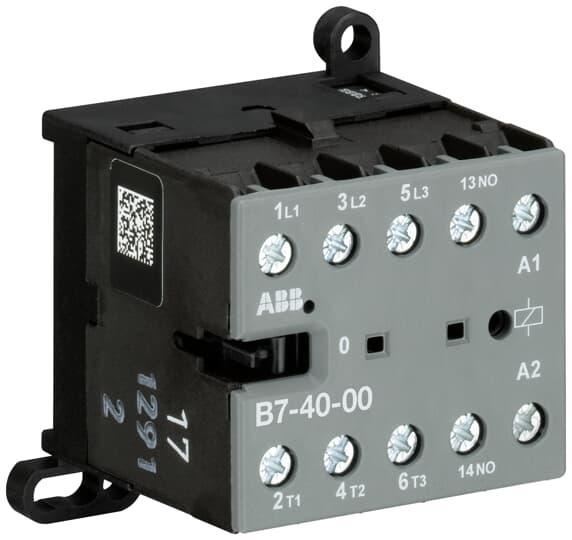

ABB B7-40-00-84 Miniature Contactor
ABB B7-40-00-84 Miniature Contactor
Part #:B7-40-00-84
SKU #: 2213697
Key Features
Part #:B7-40-00-84
SKU #: 2213697
Brand: ABB
Coil Power Rating: 3 hp, 1-1/2 hp, 5 hp
Coil Voltage: 110 to 127, 110 to 127 VAC
Contact Configuration: 4NO
Contact Rating: 20 A at 380/440 V
Dimensions: 52.5 mm W x 46.5 mm D x 57.5 mm H
- Noiseless and hum-free coil
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 3 hp at 208 VAC 3 ph, 1.5 hp at 220 to 240 VAC 1 ph, 3 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 5 hp at 550 to 600 VAC 3 ph
- 3 kW at 220/230/240 V, 5.5 kW at 400 V, 5.5 kW at 400 V 3 ph, 5.5 kW at 440 V, 5.5 kW at 500 V, 3 kW at 690 V
ABB B7-40-00-84 Miniature Contactor
ABB Miniature Contactor, Series: B7, 110 to 127 VAC Coil, 16 A Maximum Load Current, 3 hp, 1-1/2 hp, 5 hp Coil, 4 Pole, 50/60 Hz Frequency, 3/5.5 kW Wattage, 4NO Contact Configuration, 20 A at 380/440 V Contact, B7 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 52.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
Additional Description: ABB -B7-40-00-84 4P MINI CONTR,110-127V COIL
Catalog Description: The B7-40-00 mini contactor is a compact 4 pole contactor with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
