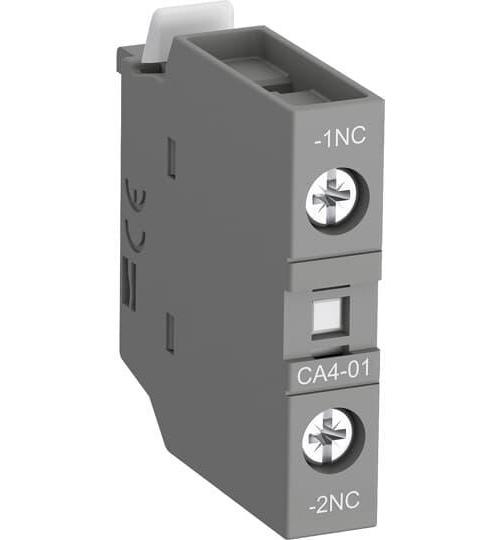

ABB CA4-01-T Auxiliary Contact Block
Image Disclaimers Message
ABB CA4-01-T Auxiliary Contact Block
ABB CA4-01-T Auxiliary Contact Block
Part #:CA4-01-T
SKU #: 2353655
Key Features
Part #:CA4-01-T
SKU #: 2353655
Brand: ABB
Amperage Rating: 6, 6 A
Dimensions: 39.5 mm L x 9.9 mm W x 43 mm H
Frequency Rating: 50/60, 50/60 Hz
Number of Contacts: 1NC
Suitable For Use With: Model AS09/AS12/AS16/ASL09/ASL12 Block Contactors
- 4 A at 220/240 V, 6 A at 24/127 V, 2 A at 500 V, 2 A at 690 V, 3 A at 400/440 V rated operational current AC-15 and 0.55 A/69 W at 125 V, 6 A/144 W at 24 V, 0.27 A/68 W at 250 V, 2.8 A/134 W at 48 V, 1 A/72 W at 72 V, 0.55 A/60 W at 110 V, 0.27 A/60 W at 220 V, 0.15 A/60 W at 400 V, 0.13 A/65 W at 500 V, 0.1 A/60 W at 600 V rated operational current DC-13
ABB CA4-01-T Auxiliary Contact Block
ABB Auxiliary Contact Block, 24 to 690 VAC, 6 A, 50/60 Hz Frequency, 1NC Contacts, DIN Rail Mounting, For Use With: Model AS09/AS12/AS16/ASL09/ASL12 Block Contactors, 39.5 mm L x 9.9 mm W x 43 mm H Dimensions
Additional Description: ABB -CA4-01-T AUXILIARY CONTACT BLOCK (10PK)
Catalog Description: For clipping onto the right- and/or left-hand side of the contactors. The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected against accidental direct contact and bear the corresponding function marking.
