Brand: ABB

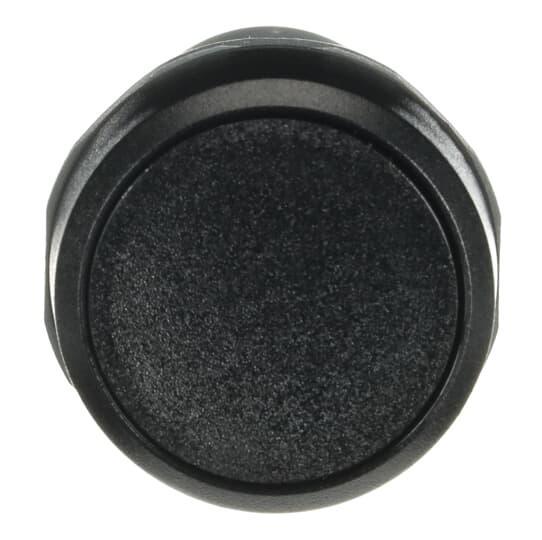

ABB CP1-10B-11 Push Button Switch
Image Disclaimers Message
Brand: ABB
ABB CP1-10B-11 Push Button Switch
Brand: ABB
ABB CP1-10B-11 Push Button Switch
Part #:CP1-10B-11
SKU #: 1116124
Sale Price: $16.34/EA
Key Features
Part #:CP1-10B-11
SKU #: 1116124
Brand: ABB
Actuator: Flush
Bezel/Housing: Black Plastic, Plastic
Contact Configuration: 1NO-1NC, 1NO/1NC
Contact Rating: 1 A at 220/240 VAC
Enclosure Type: NEMA 1/3R/4/4X/12/13/66/67/69K
Sale Price: $16.34/EA
- 220/240 VAC at 1 A, 24/127 VAC at 1.5 A, 125 VDC at 0.2 A, 24 VDC at 0.3 A contact rating
- Compact Pushbutton
- Non-illuminated
Specifications
Brand: ABB
Actuator: Flush
Bezel/Housing: Black Plastic, Plastic
Contact Configuration: 1NO-1NC, 1NO/1NC
Contact Rating: 1 A at 220/240 VAC
Enclosure Type: NEMA 1/3R/4/4X/12/13/66/67/69K
Environmental Conditions: -25 to 70 deg C Operating, -40 to 85 deg Storage
Operator Type: Momentary
Series: Compact
Size: 22 mm
Terminal Type: Screw Terminal
Type: Compact
Color: Black
Connection type: Screw Clamp
Country of origin: CN
Material: Plastic
Mounting type: Panel
Manufacturer Name: ABB
UNSPSC: 39122216
UPC: 07320500241042
ABB CP1-10B-11 Push Button Switch
ABB Non-Illuminated Pushbutton, Series: Compact, 1NO/1NC, 1 A at 220/240 VAC Contact, Momentary Operator, Bezel/Housing: Plastic, Flush, Black
Additional Description: ABB -CP1-10B-11 COMPACT FLUSH PB MOM. BLACK 1NO+1NC
Catalog Description: Compact Pushbutton - Momentary - Flush - Black - Non-illuminated - Black plastic - 1NO+1NC
Item Features
Item FeaturesMainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC and The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits
Item Features
Item FeaturesCSA Certified|cUL Listed|CE|GOST|RoHS 2CMT2015-005451|CB Certified CQC_CN_CN50749|CE 2CMT2015-005451|CCC 2020980305001187, 2019|UKCA2CMT2020-006121|CQC Certified CQC2003010305054693|DNV GL Certified 9AKK107046A3749|cURus Certified UL_E496500-20171020|RoHS Following EU Directive 2011/65/EU and Amendment 2015/863 July 22|IP20 Rated
