Part #:HF9-DOLE
SKU #: 2335208
Sale Price: $311.21/EA
Key Features
Part #:HF9-DOLE
SKU #: 2335208
Brand: ABB
Action: Direct On-Line Contactor
Amperage Rating: 9 A
Coil Voltage: 24 VDC
Control Type: Electronic
Dimensions: 99 mm H x 22.5 mm W x 114.5 mm D
Sale Price: $311.21/EA
- The HF-DOLE-range is our safety range with emergency stop function
- Used for the direct-on-line start of motors and the switching of non-resistive loads
- With contactor and overload relay functionalities integrated into one device, the results are faster wiring times and fewer faults
Specifications
Brand: ABB
Action: Direct On-Line Contactor
Amperage Rating: 9 A
Coil Voltage: 24 VDC
Control Type: Electronic
Dimensions: 99 mm H x 22.5 mm W x 114.5 mm D
Enclosure Type: IP20
Frequency Rating: 50/60 Hz
Number of Poles: 3
Operating Cycles: 10000/30000000 Cycles
Operating Temperature: -25 to 70 deg C
Overload Relay: Class 10 Adjustable
Series: HF
Setting: 1.5 to 9 A
Type: Compact Motor Combination
Voltage Rating: 500 VAC
Wattage: 1.1 to 14.6 W
Connection type: Screw
Manufacturer Name: ABB
UNSPSC: 39121521
UPC: 04013614515620

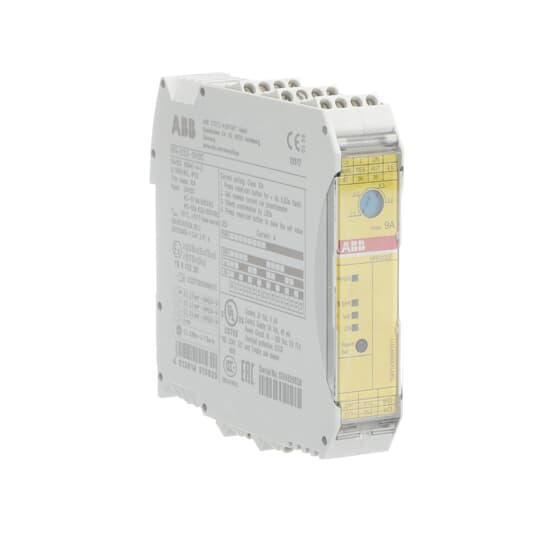

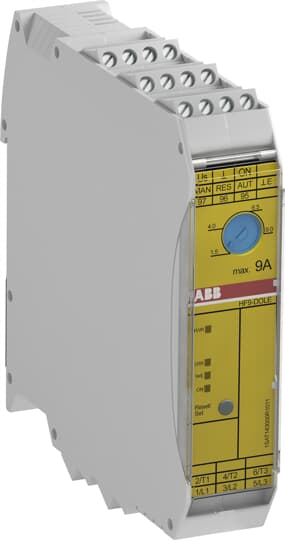

ABB HF9-DOLE Starters
Additional Description: ABB -HF9-DOLE HF9 ELEC COMP STARTER W ESTOP
Catalog Description: The control supply voltage is 24 V DC. For the control and main connection points ABB offers screw connections. Safety Integrity Level 3 in accordance with functional safety standard IEC 61508-1 and Performance Level 'e' in accordance with ISO 13849-1 are certified. Also ATEX has been certified.
Item Featuresused for the direct-on-line start of motors and the switching of non-resistive loads
Item Features
Item FeaturesIEC 61508-1|ISO 13849-1|ATEX certified|PROP65
