Brand: ABB

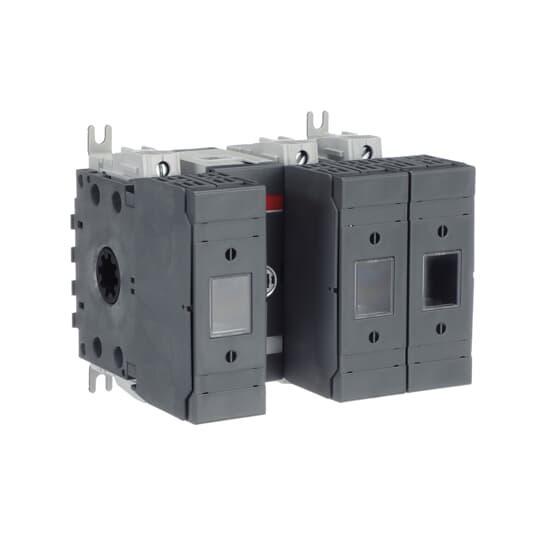

ABB OS60GJ12 Disconnect Switch
Image Disclaimers Message
Brand: ABB
ABB OS60GJ12 Disconnect Switch
Brand: ABB
ABB OS60GJ12 Disconnect Switch
Part #:OS60GJ12
SKU #: 2212287
Sale Price: $306.03/EA
Key Features
Part #:OS60GJ12
SKU #: 2212287
Brand: ABB
Amperage Rating: 60 A
Contact Form: 1NC-1NO, 1NO-1NC
Dimensions: 112 mm H x 145 mm W x 118 mm D
Enclosure Type: IP20
Horsepower: 50, 50 hp
Sale Price: $306.03/EA
62 In Stock
Ships in 1 Business Day
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- Front operated mode
- Class J fuse compatible
- Without handle and shaft
- 1-pole to left of mechanism, 2-poles to right
Specifications
Brand: ABB
Amperage Rating: 60 A
Contact Form: 1NC-1NO, 1NO-1NC
Dimensions: 112 mm H x 145 mm W x 118 mm D
Enclosure Type: IP20
Horsepower: 50, 50 hp
Number of Poles: 3
Series: OS Series
Short Circuit Current Rating (kA): 200, 200 kA
Temperature Rating (Degrees F): 40, 40 deg C
Terminal Type: Screw
Type: Front Operated Fusible Open
Voltage Rating: 600, 600 VAC
Country of origin: FI
Mounting type: Surface
Manufacturer Name: ABB
UNSPSC: 39122233
UPC: 06417019538662
ABB OS60GJ12 Disconnect Switch
Brand: ABB
Part Number: OS60GJ12
ABB Disconnect Switch, Front Operated Fusible Open, Series: OS Series, 600 VAC, 60 A, 50 hp, 3 Pole, 200 kA Short Circuit, 1NC-1NO Contact Form, IP20 Enclosure, Surface Mounting, Screw Terminal, 40 deg C, 112 mm H x 145 mm W x 118 mm D Dimensions
Additional Description: ABB -OS60GJ12 3P SW 60A J FUSE 600V UL98
Catalog Description: Switch Fuses,Front Operated,3-pole,12 (Between the Poles),Class J,60 A,Handle and shaft not included
Item FeaturesFor motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centers
Item FeaturesProtected Tunnel Terminal
Item Features
Item FeaturesUL 98|CSA C22.2 No. 4|IEC 60947-1/60947-3
