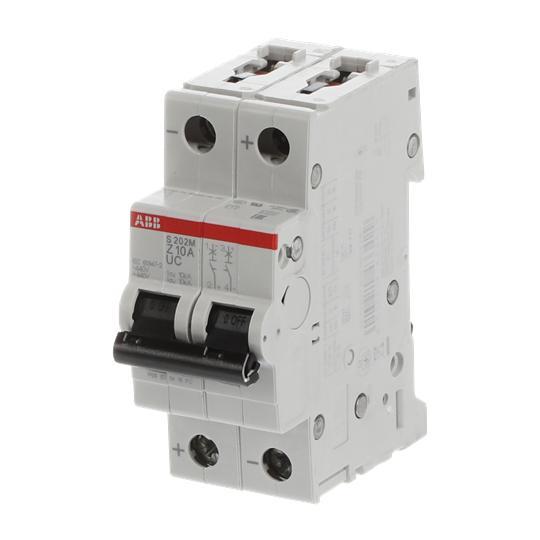

ABB S202MUC-Z10 System pro M Miniature Circuit Breaker
Part Number # S202MUC-Z10
SKU # 2293130
$140.30 / Each
$411.57/Each
74 In Stock
Ships in 1 Business Day
ABB S202MUC-Z10 Key Features
Brand: ABB
Part Number # S202MUC-Z10
SKU #2293130
Amperage Rating: 10, 10 A
Dimensions: 69 mm L x 35 mm W x 88 mm H
Enclosure Type: IP20/IP40
Frequency Rating: 50/60, 50/60 Hz
Insulation Type: Class II
Interrupt Rating: 10, 10 kA
Number of Poles: 2
Series: S200MUC
Temperature Rating (Degrees F): -25 to 55, -25 to 55 deg C
Trip Type: Z-Curve/Thermal Magnetic
Type: High Performance
Voltage Rating: 277 to 480Y VAC/250 to 500 VDC, 277/480Y VAC, 250/500 VDC
Wire Size: 14 to 4, 14 to 4 AWG
Color: Light gray
Connection type: Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: ABB
UNSPSC: 39121603
UPC: 04013614433429
$140.30 / Each
$411.57/Each
- ABB System pro M compact Miniature Circuit Breaker, High Performance, Series: S200MUC, 277/480Y VAC, 250/500 VDC, 10 A, 50/60 Hz Frequency, 10 kA Interrupt, Z-Curve/Thermal Magnetic Trip, 2 Pole, Screw Connection, 14 to 4 AWG Wire, Class II Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 35 mm W x 88 mm H Dimensions, Light Gray
S202MUC-Z10 Application
For supplementary protective devices, protection and control of the electronic circuits against weak and long duration overloads and short-circuitsS202MUC-Z10 Item Features
- High performance MCB provides compact supplementary, energy limiting, circuit protection
- Equipped with permanent magnets that assist in the forced extinguishing of the arc
- Failsafe bi-directional cylinder-lift screw terminal
- Auxiliary contact
S202MUC-Z10 Standards
UL 1077|CSA C22.2 No. 235SKU #2293130Part Number #S202MUC-Z10UNSPSC39121603UPC04013614433429
