Brand: Acme Electric

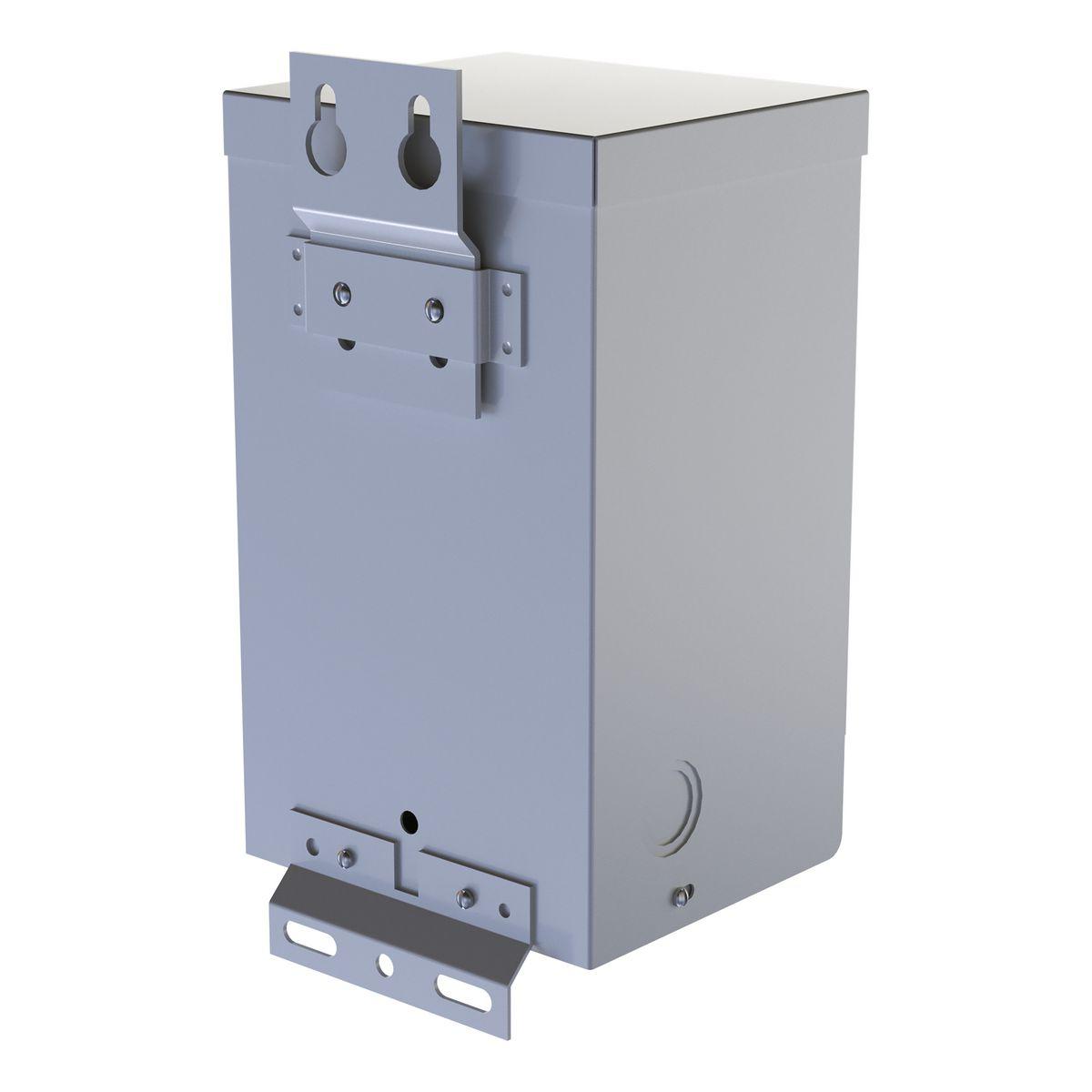

Acme Electric T181063 Buck Boost Transformer
Image Disclaimers Message
Brand: Acme Electric
Acme Electric T181063 Buck Boost Transformer
Brand: Acme Electric
Acme Electric T181063 Buck Boost Transformer
Part #:T181063
SKU #: 2238497
$185.54/EA
Key Features
Part #:T181063
SKU #: 2238497
Brand: Acme Electric
Dimensions: 5.13 in L x 5.5 in W x 11.62 in H, 7.16 in H x 3.89 in W x 3.67 in D
Enclosure Type: NEMA 3R/IP54
Frequency Rating: 50/60, 50/60 Hz, 60
Insulation: Class H/180 deg C
Maximum Amperage Rating: 6.24/3.12, 6.24/3.12 A
$185.54/EA
- Encapsulated core and coil
- Buck boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20%
- The most common example is boosting 208 to 230 VAC, usually to operate a 230 VAC motor such as an air conditioner compressor, from a 208 VAC supply line
- Anytime a line voltage change in the 5 to 20% range is required, a buck boost transformer should be considered as your first line-of defense
- Buck boost transformers are an economical way to correct a potentially very serious problem
- https://youtu.be/90eTKtIzAtQ
Specifications
Brand: Acme Electric
Dimensions: 5.13 in L x 5.5 in W x 11.62 in H, 7.16 in H x 3.89 in W x 3.67 in D
Enclosure Type: NEMA 3R/IP54
Frequency Rating: 50/60, 50/60 Hz, 60
Insulation: Class H/180 deg C
Maximum Amperage Rating: 6.24/3.12, 6.24/3.12 A
Phase: 1, 1 ph
Power Rating: 0.15, 150, 150 VA
Primary Voltage: 240/480, 240/480 VAC
Secondary Voltage: 24/48, 24/48 VDC
Temperature Rating (Degrees F): 115, 115 deg C
Type: Encapsulated Isolation
Connection type: Lead Wire, Wire Lead
Country of origin: MX
Mounting type: Wall
Manufacturer Name: Hubbell
UNSPSC: 39121025
UPC: 00047503183502
Item FeaturesFor low voltage lighting or control circuitry applications
Item Features
Item FeaturesUL 506/50B8/B3223 File No. E79947V1|CSA Certified|OSHA Compliant|ANSI Specified|IEEE Certified|PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
