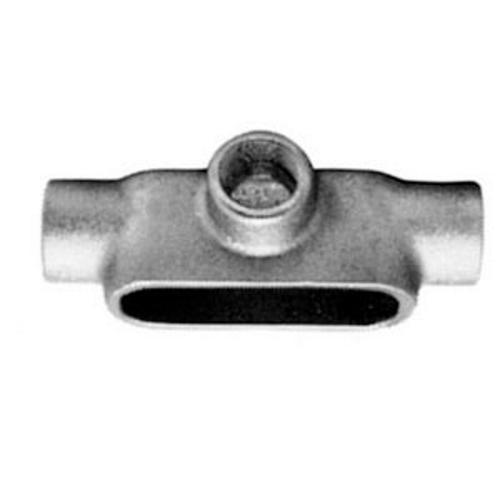

Appleton APPT27 Conduit Outlet Body
Appleton APPT27 Conduit Outlet Body
Part Number # APPT27
SKU # 3818
$19.67 / Each
$24.84/Each
Appleton APPT27 Key Features
Brand: Appleton
Capacity: 10, 10 cu-in
Dimensions: 6.25 in L x 2.63 in W x 2 in H
Enclosure: NEMA FB-1
Finish: Triple Coated
Form: Form 7
Hub Size: 3/4, 3/4 in
Type: Type T
Color: Gray
Connection type: Tapered FNPT
Country of origin: MX
Material: Grayloy Iron
Mounting type: Surface
Manufacturer Name: Emerson Electric
UNSPSC: 39131708
UPC: 00781381507073
$19.67 / Each
$24.84/Each
Appleton APPT27 Conduit Outlet Body
Brand: Appleton
Part Number: APPT27
Appleton UNILETS Conduit Outlet Body, Type T, 3/4 in Hub, 3 Hubs, 10 cu-in Capacity, Form 7 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Grayloy Iron, Triple Coated, Gray, 6.25 in L x 2.63 in W x 2 in H Dimensions
Additional Description: APLE-APPT27 3/4 FM7 BODY
Catalog Description: FM7 UNILETS Type T Conduit Outlet Body, Hub Size: 3/4 IN, Form: 7, Length: 6-1/4 IN, Width: 2.63 IN, Height: 2 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Connection: Taper
ApplicationFor Rigid Steel/Aluminum and IMC ConduitItem Features- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Wedge-Lok form-in-place covers with integral gasket are approved for use in wet locations
- Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
- Unique Wedge-Lok clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7 and Form 7 units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
- Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
- Cover screws and clips are captive to prevent loss
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
StandardsARRA Compliant|UL 514A|UL 514B File No. E2527|CSA C22.2 No. 18.3/065183SKU #3818Part Number #APPT27UNSPSC39131708UPC00781381507073
