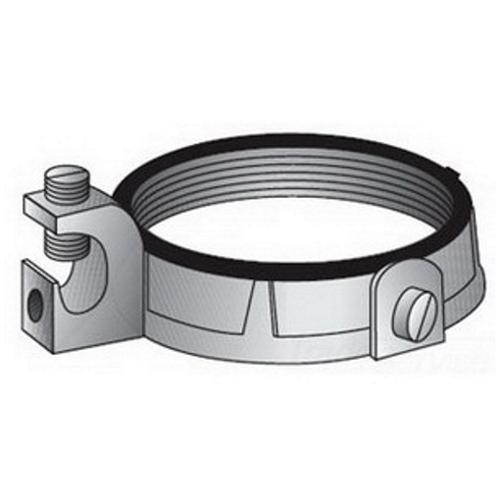

Appleton IBC150L4AC Grounding Bushing
Part Number # IBC150L4AC
SKU # 2274256
$286.00 / 25Each
$459.50/Each
Appleton IBC150L4AC Key Features
Brand: Appleton
Part Number # IBC150L4AC
SKU #2274256
AC Cable Size: 14 to 4, 14 to 4 AWG
Dimensions: 2-5/16 in OD x 11/16 in W
Finish: Zinc Plated, Zinc/Tin Plated
Insulated/Non-Insulated: Insulated
Temperature Rating (Degrees F): 150, 150 deg F
Trade Size: 1-1/2, 1-1/2 in
Type: Type IBC-L-AC
Country of origin: MX
Material: Aluminum/Malleable Iron/Steel
Manufacturer Name: Emerson Electric
UNSPSC: 39121312
UPC: 00783126303124
$286.00 / 25Each
$459.50/Each
Appleton IBC150L4AC Grounding Bushing
Brand: Appleton
Part Number: IBC150L4AC
O-Z/Gedney Grounding Bushing, Type IBC-L-AC, 14 to 4 AWG AC Cable Size, 1-1/2 in Trade, Insulated, 150 deg F, Aluminum/Malleable Iron/Steel, Zinc/Tin Plated, 2-5/16 in OD x 11/16 in W Dimensions
Additional Description: APLE-IBC150L4AC 1-1/2 IN GNDG INSUL BSHG W/LUG
Catalog Description: OZ-Gedney Type IBC-L-AC Insulated Grounding Bushing With Lug, Size: 1-1/2 IN, Malleable Iron Body, Aluminum Lug, Steel Clamping Screw And Set Screws, Finish: Zinc Plated Body, Tin Plated Lug, Zinc Plated Clamping Screw And Set Screws, Connect
IBC150L4AC Application
Rigid/IMC Conduit ApplicationsIBC150L4AC Item Features
- O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug
- They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit
- Insulating liner material is UL V-0 rated (self-extinguishing)
- The plastic liner is tough, it wont chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes
- Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
- Setscrew provided with each fitting locks bushing in any desired position
- UL listed for use with copper or aluminum grounding conductors
- Lugs not sold separately
- Zinc-plated clamping screw and set screws, Tin-plated lug finish
IBC150L4AC Standards
ARRA Compliant|CSA C22.2 No. 41 File No. 009795|Federal Specification W-F-408E|NEMA FB-1 Rated|UL 467|UL Listed File No. E24264SKU #2274256Part Number #IBC150L4ACUNSPSC39121312UPC00783126303124
