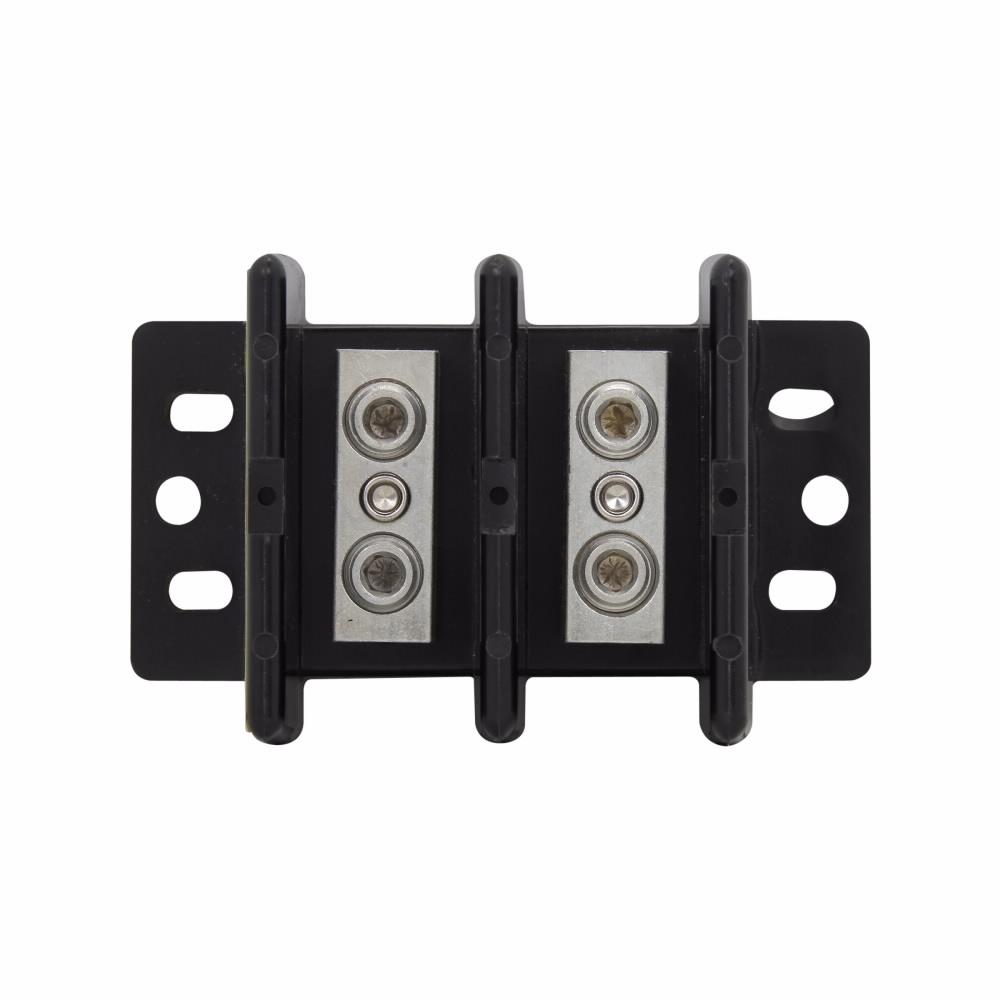

Bussmann 16000-2 Power Terminal Block
Part Number # 16000-2
SKU # 2341845
$89.37 / Each
$131.38/Each
Bussmann 16000-2 Key Features
Brand: Bussmann
Part Number # 16000-2
SKU #2341845
Amperage Rating: 175, 175 A
Dimensions: 4.12 in L x 2.8 in W x 2.12 in H
Finish: Tin Plated
Number of Poles: 2
Series: 160
Short Circuit Current Rating (kA): 10, 10 kA
Type: 0, Splicer
Voltage Rating: 600, 600 VAC/VDC
Wire Size: 8 to 2/0, 8 to 2/0 AWG Cu/Al Line/Load
Color: Black
Material: Thermoplastic
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712734813
$89.37 / Each
$131.38/Each
- Bussmann Power Splicer Block, Series: 160, 600 VAC/VDC, 175 A, 2 Pole, (1) Screw Primary Connections/Pole, (1) Screw Secondary Connection/Pole, 8 to 2/0 AWG Cu/Al Line/Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 4.12 in L x 2.8 in W x 2.12 in H
16000-2 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications16000-2 Item Features
- Rated for dual wire port application to increase the possible number of line side and load side connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin plated aluminum connector
- SMD/SMT style mounting
- https://www.youtube.com/watch?v=YMvqUyoETXk
16000-2 Standards
CE Certified|CSA 53787 Guide XCFR2|RoHS Compliant|UL 1059 File No. E221592SKU #2341845Part Number #16000-2UNSPSC39121629UPC00051712734813
