Brand: Bussmann

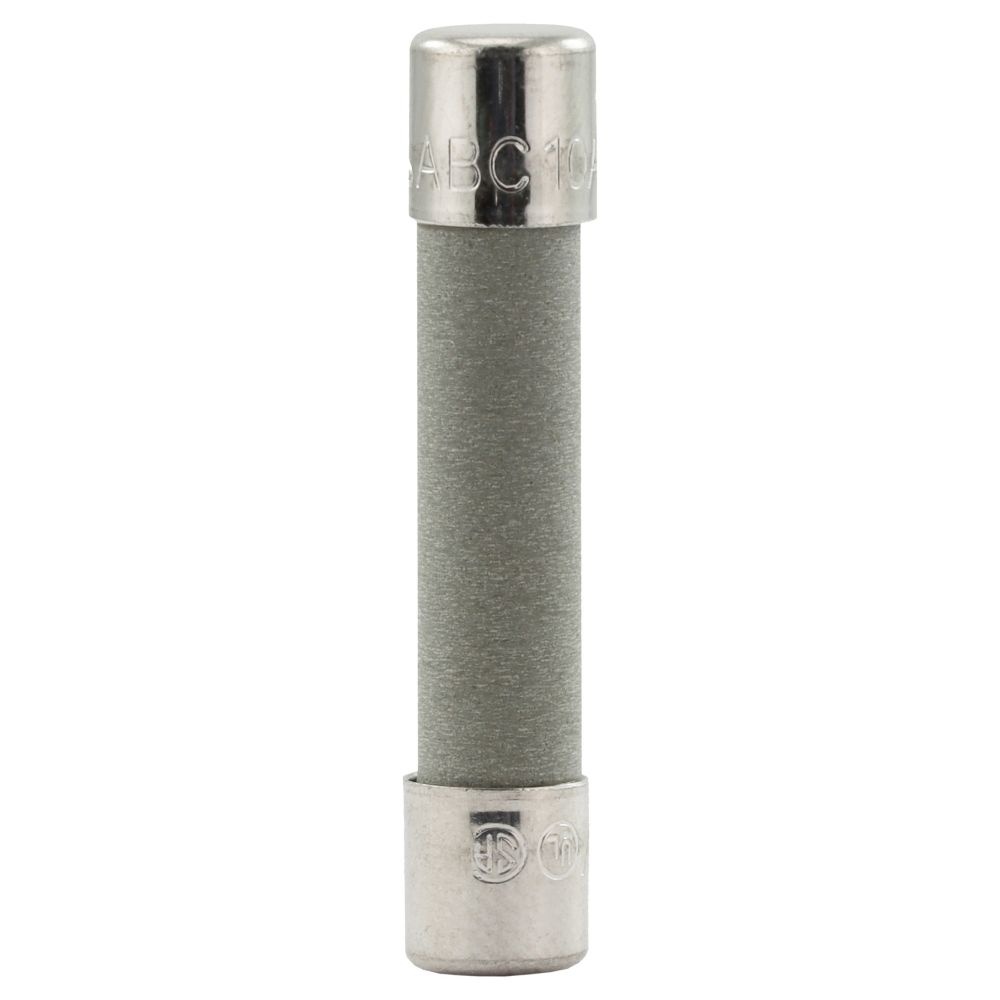

Bussmann ABC-10-R Fast Acting Fuse
Image Disclaimers Message
Brand: Bussmann
Bussmann ABC-10-R Fast Acting Fuse
Brand: Bussmann
Bussmann ABC-10-R Fast Acting Fuse
Part #:ABC-10-R
SKU #: 2221655
$11.85/5EA
Key Features
Part #:ABC-10-R
SKU #: 2221655
Brand: Bussmann
Amperage Rating: 10, 10 A
Body Type: Cylindrical
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200 A, 10 kA
Rejection/Non-Rejection: Non-Rejection
$11.85/5EA
- Ceramic body allows for higher amp/volt rating combinations
- 200 A at 250 VAC, 10 kA at 125 VAC/VDC interrupt rating
- 4 hr minimum at 100%, 60 min maximum at 135%, 120 sec maximum at 200% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 10, 10 A
Body Type: Cylindrical
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200 A, 10 kA
Rejection/Non-Rejection: Non-Rejection
Response Time: 4 hr, 60 min, 120 s
Series: ABC
Terminal Type: Ferrule
Type: Small Dimension
Voltage Rating: 250 VAC, 125 VDC, 250 VAC/125 VDC
Country of origin: TW
Material: Ceramic
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121611
UPC: 00051712646161
Bussmann ABC-10-R Fast Acting Fuse
Bussmann Fast Acting Fuse, Small Dimension, Series: ABC, Non-Indicating, Non-Rejection, 10 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, 4 hr, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body
Additional Description: BUSS-ABC-10-R ABC 10A BUSS FA 5-IN BOX -R
Catalog Description: Eaton ABC series Fast-acting fuse, 10A, 250 Vac, 125 Vdc, 32 Vac (self certified), R
Item FeaturesElectronic Circuit Applications
Item Features
Item FeaturesRoHS Compliant|CE Certified|Standard 248-14|UL Listed|Guide JDYX UL File No. E19180|CSA Class 1422-01/1422-30|CSA File No. 53787
