Brand: Bussmann

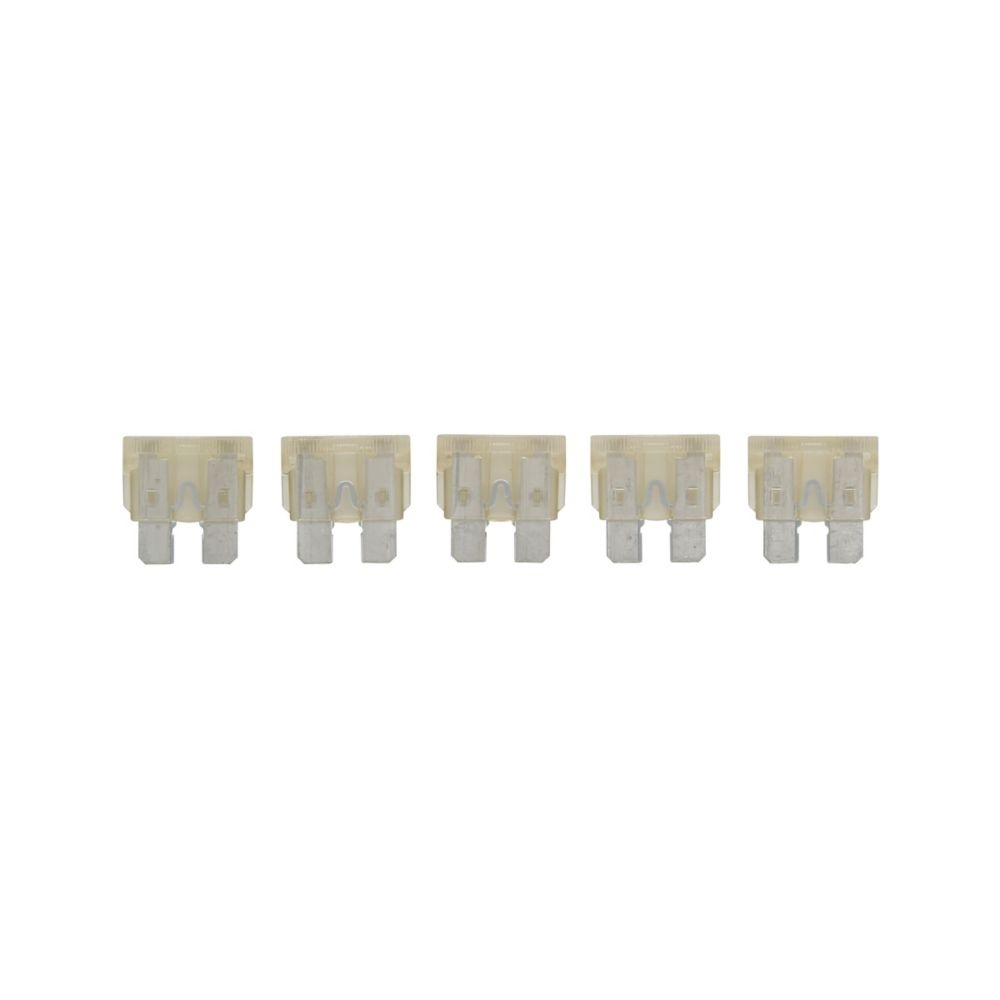

Bussmann ATC-25 Fast Acting Fuse
Image Disclaimers Message
Brand: Bussmann
Bussmann ATC-25 Fast Acting Fuse
Brand: Bussmann
Bussmann ATC-25 Fast Acting Fuse
Part #:ATC-25
SKU #: 7427
$6.90/5EA
Key Features
Part #:ATC-25
SKU #: 7427
Brand: Bussmann
Amperage Rating: 25, 25 A
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 1, 1 kA
Rejection/Non-Rejection: Non-Rejection
Response Time: 0.75 to 120
$6.90/5EA
- Industry standard color coding for quick identification of amperage rating
- Tin plated zinc terminals for corrosion resistance and enhanced conductivity
- Wide -40 to 100 deg C operating temperature range meets the needs of extreme environments
- Lead free and halogen free
- Test points on specific part/package numbers may speed up circuit troubleshooting
- UL recognized for use in low voltage control circuits
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 25, 25 A
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 1, 1 kA
Rejection/Non-Rejection: Non-Rejection
Response Time: 0.75 to 120
Series: ATC
Terminal Type: Blade
Type: Fast Acting Fast Blow, Standard
Voltage Rating: 32, 32 VDC
Color: Clear
Depth: 0.207, 0.207 in
Length: 0.752, 0.752 in
Material: Plastic
Mounting type: Holder
Width: 0.76, 0.76 in
Manufacturer Name: Eaton
UNSPSC: 39121612
UPC: 00051712703277
Bussmann ATC-25 Fast Acting Fuse
Bussmann Fast Acting Fuse, Standard, Series: ATC, Non-Indicating, Non-Rejection, 25 A, 32 VDC, 1 kA Interrupt, Blade Terminal, Holder Mount, Single Element, 0.752 in Length, 0.76 in Width, 0.207 in D, Plastic, Clear

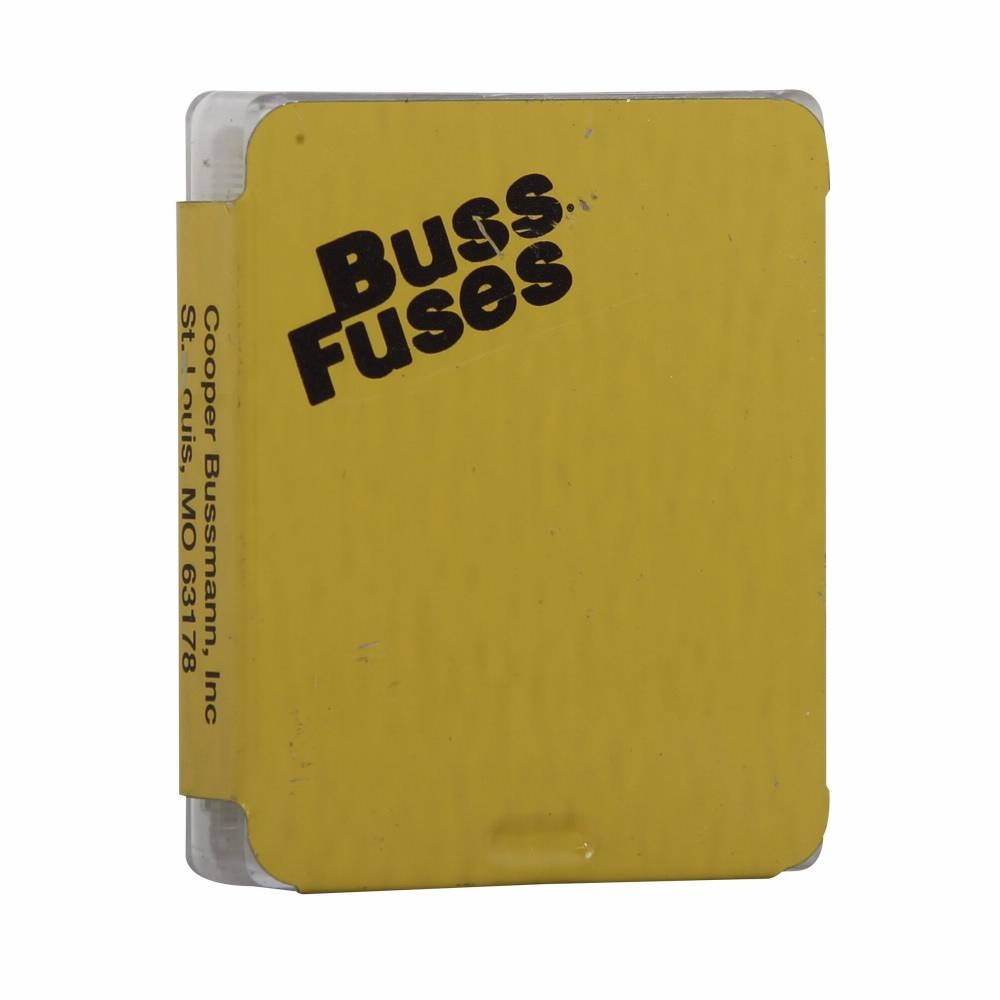

Additional Description: BUSS-ATC-25 ATC BLADE FUSE - 25 AMP (5 in TIN)
Catalog Description: Eaton Bussmann series ATC blade fuse, 32 Vdc, 25A, 1 kAIC, Non Indicating, Blade fuse, Clear
Item Features
Item FeaturesAutomotive and Low Voltage Control Circuit Applications
Item Features
Item FeaturesUL JFHR2 File NO E56412|SAE J1284
