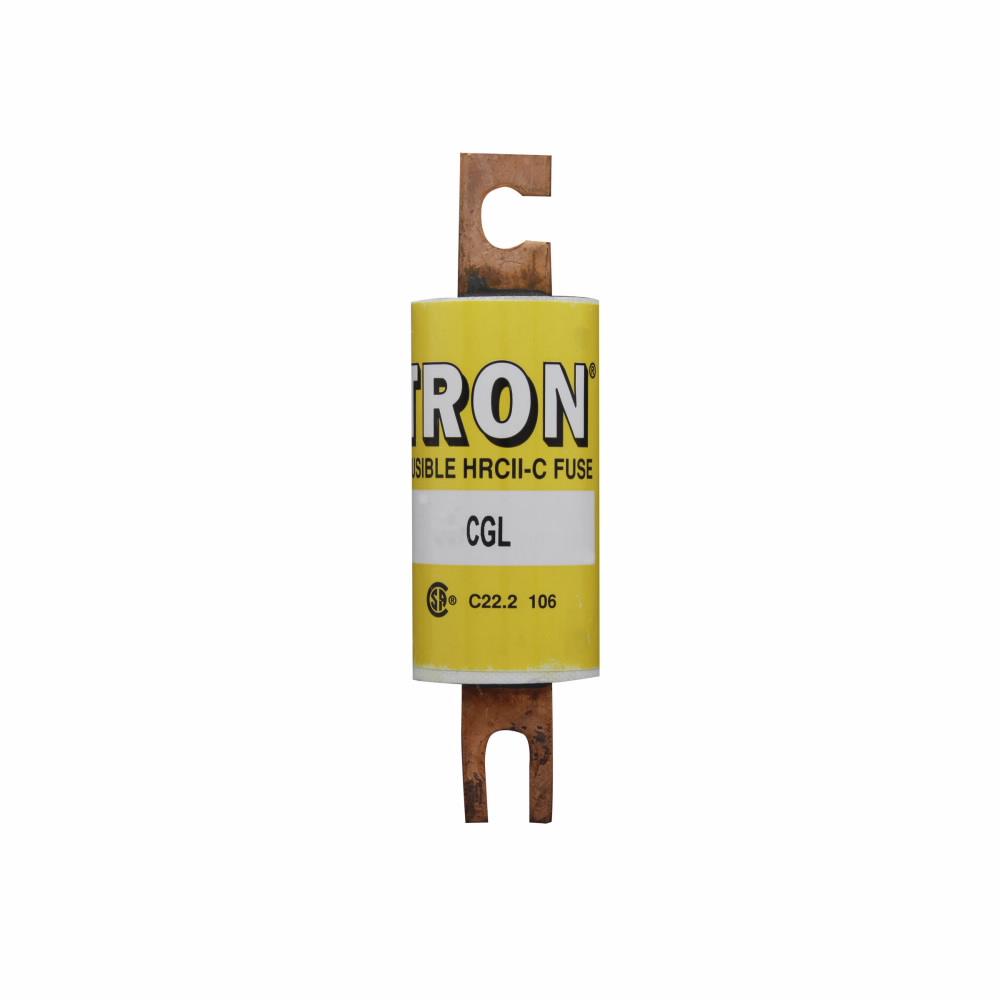

Bussmann CGL-125 Fuse
Bussmann CGL-125 Fuse
Part Number # CGL-125
SKU # 2344030
$373.50 / Each
$759.51/Each
Bussmann CGL-125 Key Features
Brand: Bussmann
Amperage Rating: 125 A
Body Type: Cartridge
Class: C
Interrupt Rating: 200 kAIC at 600 VAC, 40 kAIC at 250 VDC, 200/40
Series: CGL
Terminal Type: Blade, Blade End
Type: HRC Form II Current Limiting Non-Indicating
Voltage Rating: 600 VAC/250 VDC
Country of origin: MX
Material: Fiberglass
Mounting type: Stud
Manufacturer Name: Eaton
UNSPSC: 39121626
UPC: 00051712100465
$373.50 / Each
$759.51/Each
- Bussmann Tron Fuse, HRC Form II Current Limiting Non-Indicating, Series: CGL, 125 A, 600 VAC/250 VDC, 200 kAIC at 600 VAC, 40 kAIC at 250 VDC Interrupt, Class: C, Blade End Terminal, Stud Mount, Cartridge Body Type, Dual Element, Fiberglass, 1.5 in Dia x 5.31 in L Body SizeApplicationFor use with circuits subject to surge currents such as those caused by motors, transformers and other inductive loads Applications, Industrial Facilities and Factory Facilities, Safety and Security SystemsItem Features
- Current limiting HRCII-C fuses designed to withstand inrush currents on typical motor start-ups while offering high current limitation in the short circuit region
- Close sizing to loads allows using smaller and less costly switches
- Provides a higher degree of short circuit protection
- Helps protect motors against burnout from overloads
- https://www.youtube.com/watch?v=YMvqUyoETXk
StandardsCE Certified|CSA C22.2 No. 106SKU #2344030Part Number #CGL-125UNSPSC39121626UPC00051712100465
