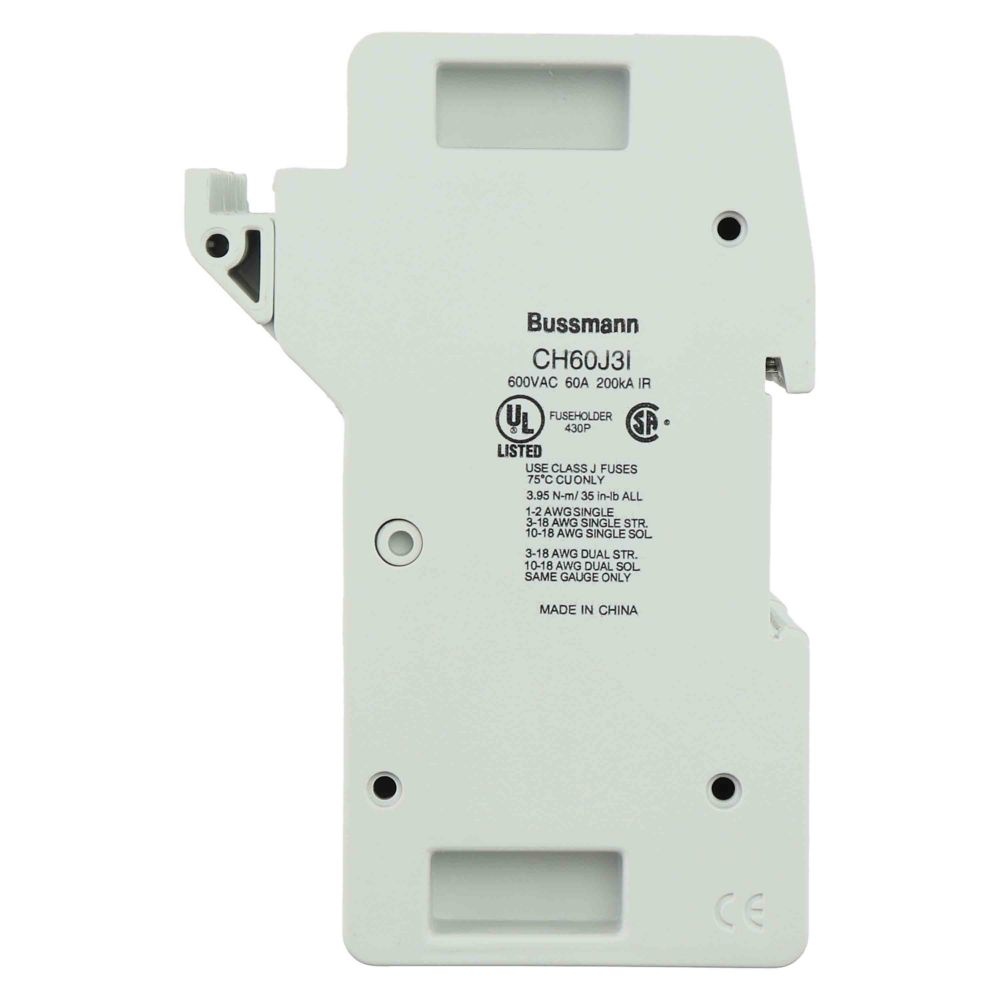

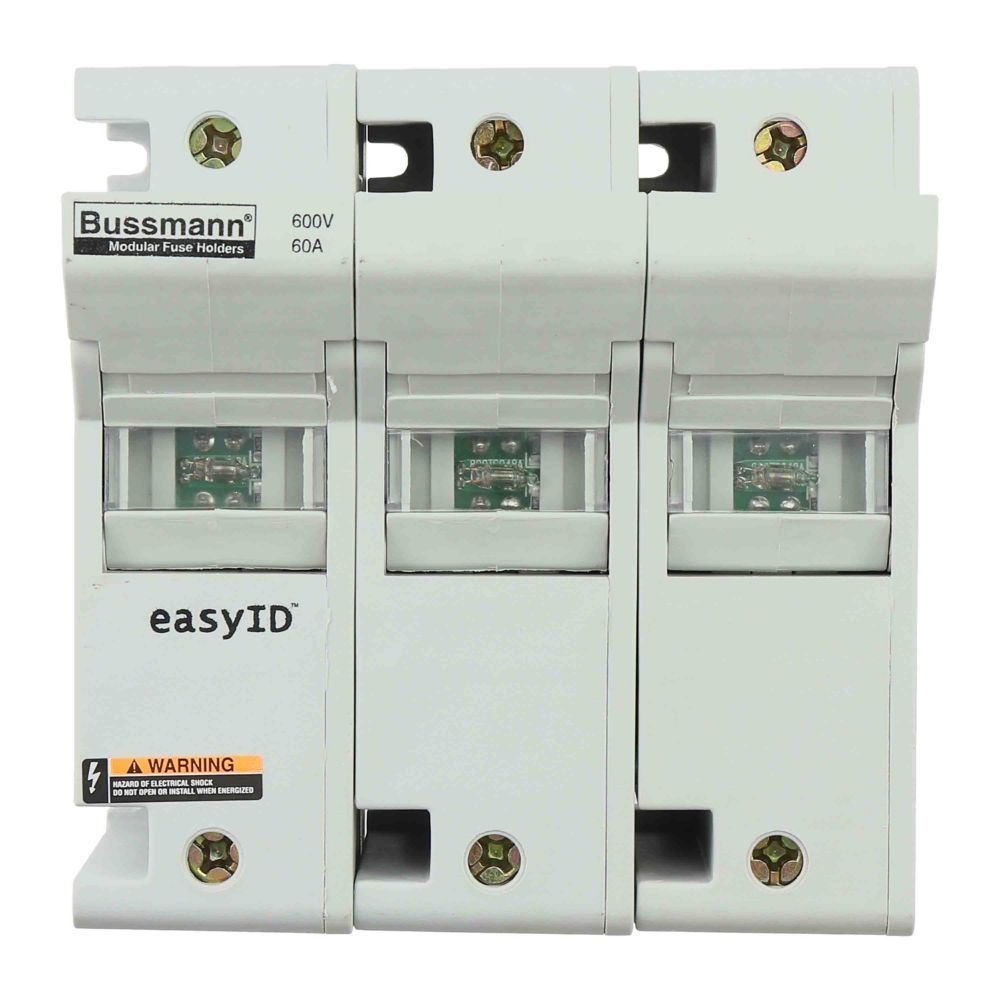

Bussmann CH60J3I Fuse Holder
Part Number # CH60J3I
SKU # 2152031
$629.58 / 2Each
$1280.24/Each
Bussmann CH60J3I Key Features
Brand: Bussmann
Part Number # CH60J3I
SKU #2152031
Amperage Rating: 60 A
Class: J
Dimensions: 4.72 in L x 3.31 in W x 4.88 in H
Fuse Diameter: 1.06, 1.06 in
Fuse Length: 2.38, 2.38 in
Number of Phases: 3
Number of Poles: 3
Series: CH Series
Suitable For Use With: LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed Class J Fuse, LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed J Fuse
Temperature Rating (Degrees F): 85, 85 deg C
Type: Finger Safe Modular
Voltage Rating: 600, 600 VAC/VDC
Wire Size: 18 to 1, 18 to 1 AWG
Color: White
Connection type: Box Lug
Material: Thermoplastic
Mounting type: DIN Rail/Panel
Manufacturer Name: Eaton
UNSPSC: 39121624
UPC: 00051712630948
$629.58 / 2Each
$1280.24/Each
Bussmann CH60J3I Fuse Holder
Brand: Bussmann
Part Number: CH60J3I
Bussmann easyID Fuse Holder, Finger Safe Modular, Series: CH Series, 600 VAC/VDC, 60 A, 3 Pole, 3, Class: J, Box Lug, 18 to 1 AWG Wire, DIN Rail/Panel Mount, 2.38 in Fuse Length, 1.06 in Fuse Dia, 85 deg C, For Use With: LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed J Fuse, Thermoplastic, White, 4.72 in L x 3.31 in W x 4.88 in H
Additional Description: BUSS-CH60J3I 60AJ INDICATOR FUSEHOLDER 3 POLE
Catalog Description: Eaton Bussmann series CH modular fuse holder, Neon lamp, 60 A, Three-pole, Class J, Tin-plated copper clip, Thermoplastic housing, Panel, 35 mm DIN rail, 600 Vac/dc
CH60J3I Application
Electrical Assemblies, Panels and OEMs ApplicationsCH60J3I Item Features
- Neon lamp open fuse indicator
- Improved electrical safety with IP20 finger safe construction with lockout or tagout feature
- 3 ph fuse extraction assures all phases are opened for service work
- Tin plated copper clip
- https://www.youtube.com/watch?v=YMvqUyoETXk
CH60J3I Standards
CE Certified|CSA C22.2 No. 39/6225-01|CSA File No. LR47235|IEC 60529|RoHS Compliant|UL 512|UL File No. E14853|UL Guide IZLTSKU #2152031Part Number #CH60J3IUNSPSC39121624UPC00051712630948
