- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 200, 200 A
Body Type: Cylindrical
Class: AR
Frequency Rating: 45 to 1000 Hz
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200 kA, 50/200
Rejection/Non-Rejection: Non-Rejection
Series: FWH
Terminal Type: Blade, Blade End
Type: Fast Acting
Voltage Rating: 500, 500 VAC
Country of origin: IN
Material: Ceramic
Mounting type: Stud
Manufacturer Name: Eaton
UNSPSC: 39121625
UPC: 00051712795869

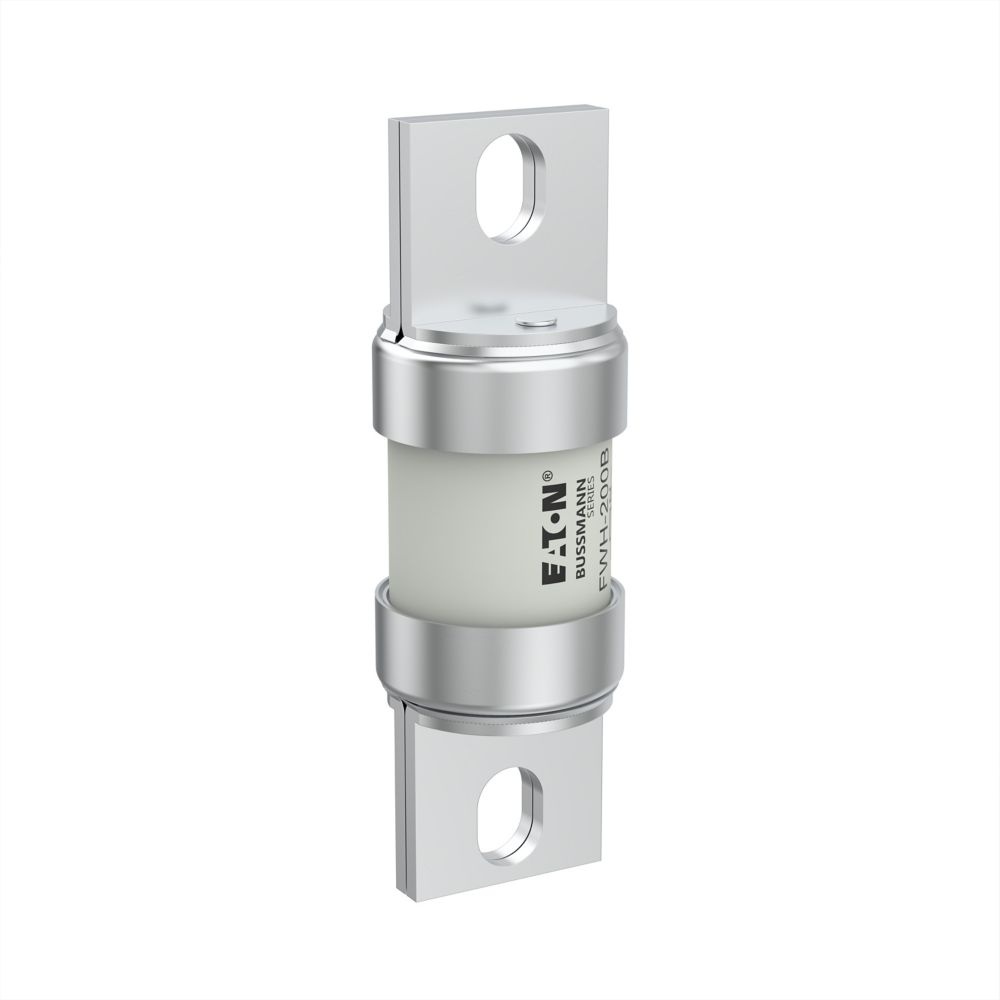

Bussmann FWH-200B High Speed Fuse
Bussmann High Speed Fuse, Fast Acting, Series: FWH, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 200 A, 500 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Cylindrical Body, Single Element, Ceramic, 1.156 in Dia x 3.625 in L Body Size
Additional Description: BUSS-FWH-200B 200A 500V AC TAG FUSE
Catalog Description: Eaton Bussmann series FWH high speed fuse, 500 Vac/dc (UL), 200A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, None, High speed fuse, Blade end X blade end, Class aR, Stud, White, Ceramic
Item FeaturesElectrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power
Item Features
Item FeaturesCE Marking|CSA Certified|RoHS Compliant|UL Listed File No. E91958
