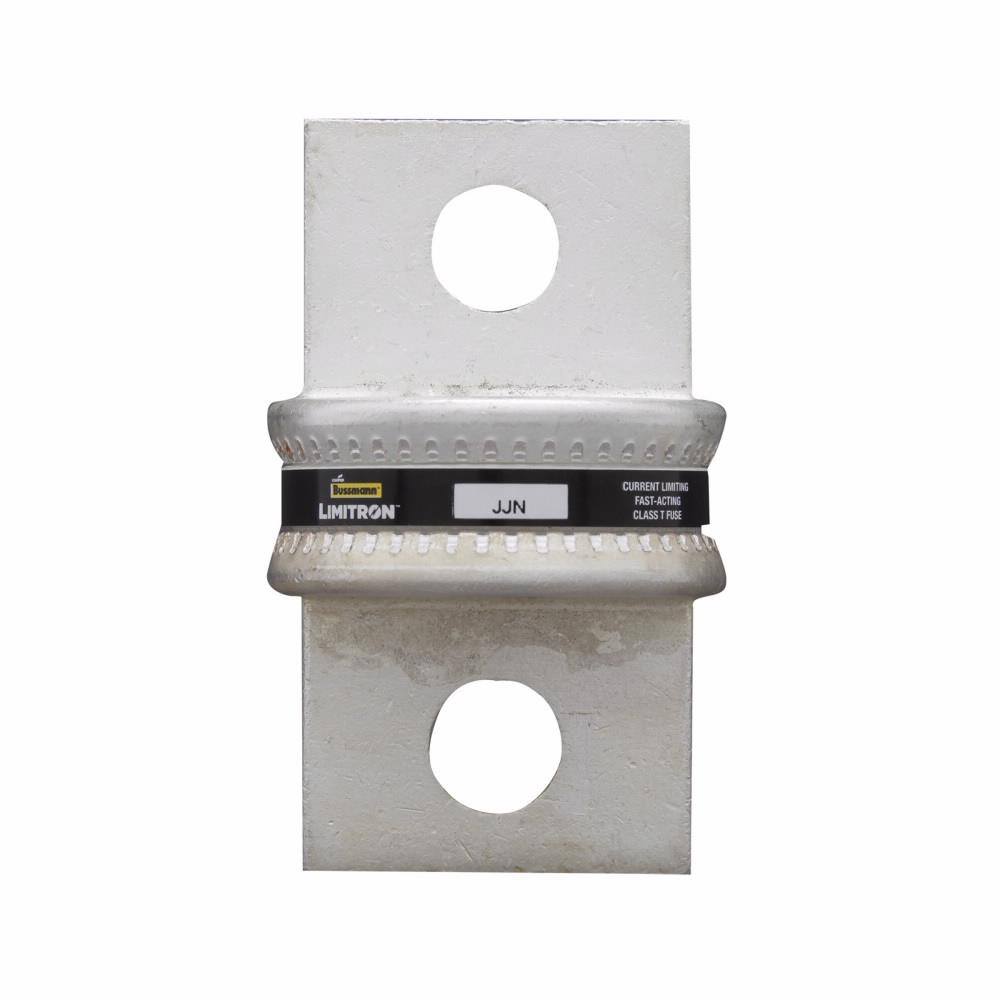

Bussmann JJN-800 Limitron T-Tron Fuse
Part Number # JJN-800
SKU # 2430249
Bussmann JJN-800 Key Features
Bussmann JJN-800 Limitron T-Tron Fuse
Brand: Bussmann
Part Number: JJN-800
Bussmann Limitron™ T-Tron® Fuse, Current Limiting Very Fast Acting, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 800 A, 300 VAC/170 VDC, 200/100 kAIC Interrupt, Class: T, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 1.75 in Dia x 3.38 in L Body Size
Additional Description: BUSS-JJN-800 TRON FAST ACTING FUSE
Catalog Description: Eaton Bussmann series JJN fuse, Current-limiting, VFD line protection, 800 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 100 kAIC at 170 Vdc, 200 kAIC at 300 V, Standard, 1, 300 V, 170 Vdc
JJN-800 Application
Industrial Facilities and Factories, Safety and Security Systems, Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection and Commercial ApplicationsJJN-800 Item Features
- Small footprint allows more efficient use of available space
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
- 200 kA interrupt rating complies with NEC section 110.9 for todays large capacity systems
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- Small, space saving fuses provide a high degree of current limitation on short circuits for excellent component protection
- https://www.youtube.com/watch?v=YMvqUyoETXk
JJN-800 Standards
CE Certified|CSA C22.2 File No.53787|RoHS Compliant|UL 248-15 File No.E4273SKU #2430249Part Number #JJN-800UNSPSC39121626UPC00051712627184
