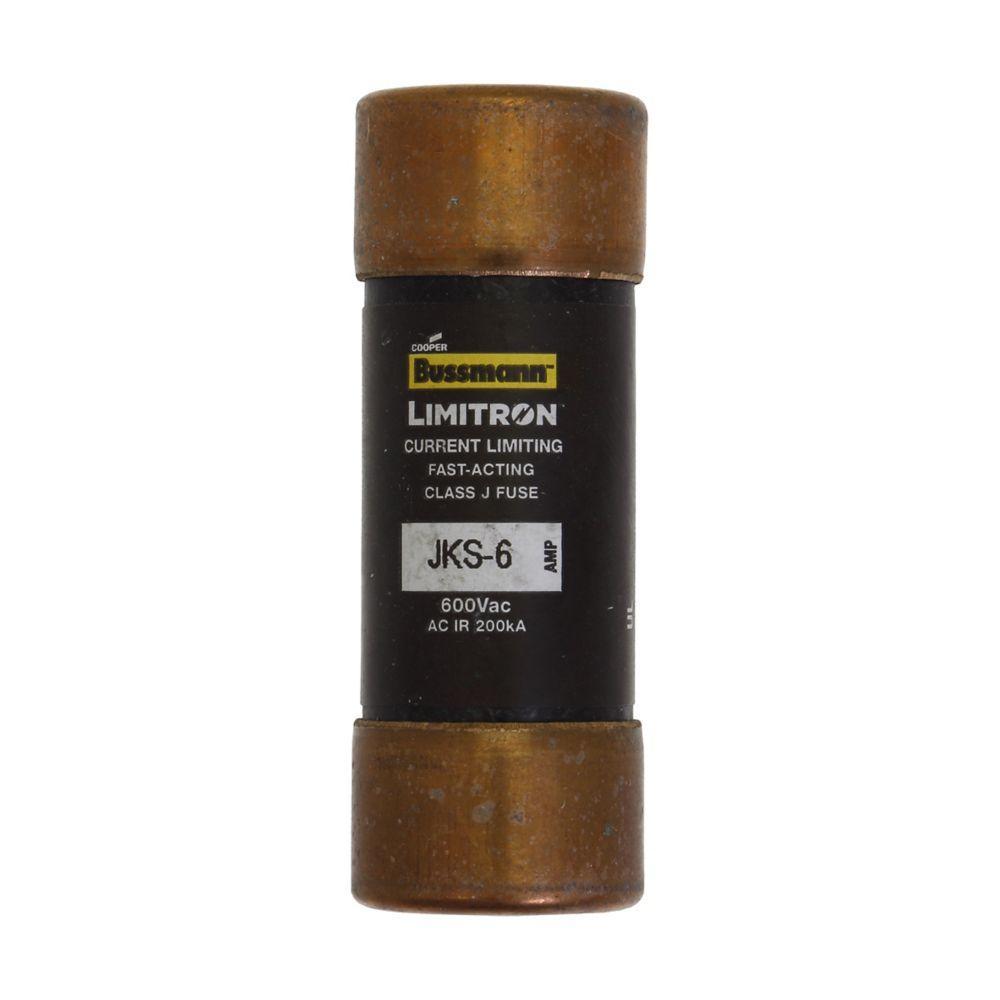

Bussmann JKS-6 Limitron Fuse
Part Number # JKS-6
SKU # 2421241
$908.60 / 10Each
$1684.10/Each
Bussmann JKS-6 Key Features
Brand: Bussmann
Part Number # JKS-6
SKU #2421241
Amperage Rating: 6 A
Body Type: Cylindrical
Class: J
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200 kAIC
Rejection/Non-Rejection: Non-Rejection
Series: JKS
Terminal Type: Ferrule End
Type: Current Limiting Fast Acting
Voltage Rating: 600 V
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121626
UPC: 00051712630061
$908.60 / 10Each
$1684.10/Each
Bussmann JKS-6 Limitron Fuse
Brand: Bussmann
Part Number: JKS-6
Bussmann Limitron™ Fuse, Current Limiting Fast Acting, Series: JKS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 6 A, 600 V, 200 kAIC Interrupt, Class: J, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.81 in Dia x 2.25 in L Body Size
Additional Description: BUSS-JKS-6 LIMITRON FAST ACTING FUSE CLASS J
Catalog Description: Eaton Bussmann Series Class J fuse, JKS, fast-acting, current limiting fuse, 6 A, rejection style fuse, interrupting rating of 200kA at 600Vac
JKS-6 Application
Industrial Facilities and Factories, Safety and Security Systems, Power Panelboards and Machinery Disconnect ApplicationsJKS-6 Item Features
- Provides component short circuit protection in compliance with NEC 110-10 where protection devices shall clear a fault without extensive damage to the circuit components
- High interrupt rating helps meet the requirements of future system expansion and the increases in available utility short circuit current
- Fuses can be selectively coordinated with ease
- Current limitation for non-inductive circuits provides class J current limiting response to maximum ground fault and short circuit conditions
- Economical solutions for high fault circuits
- Advanced protection
- 200 kA interrupt rating provides high ratings at all circuit locations
- Protects low interrupting capacity circuit breakers, limits the short circuit current to meet the interrupting capacity requirements of existing equipment
- Well suited for lighting and heating circuits and other non-inductive loads
- https://www.youtube.com/watch?v=YMvqUyoETXk
JKS-6 Standards
CE Certified|CSA C22.2 File No.53787|RoHS Compliant|UL 248-8 File No.E4273 Guide JDDZSKU #2421241Part Number #JKS-6UNSPSC39121626UPC00051712630061
