- Provides component short circuit protection in compliance with NEC 110-10 where protection devices shall clear a fault without extensive damage to the circuit components
- High interrupt rating helps meet the requirements of future system expansion and the increases in available utility short circuit current
- Fuses can be selectively coordinated with ease
- Current limitation for non-inductive circuits provides class J current limiting response to maximum ground fault and short circuit conditions
- Economical solutions for high fault circuits
- Advanced protection
- 200 kA interrupt rating provides high ratings at all circuit locations
- Protects low interrupting capacity circuit breakers, limits the short circuit current to meet the interrupting capacity requirements of existing equipment
- Well suited for lighting and heating circuits and other non-inductive loads
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 600, 600 A
Body Type: Cartridge
Class: J
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200, 200 kAIC
Rejection/Non-Rejection: Non-Rejection
Series: JKS
Terminal Type: Bolted Blade End, Knife Blade
Type: Current Limiting, Current Limiting Fast Acting
Voltage Rating: 600, 600 V
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121626
UPC: 00051712636001

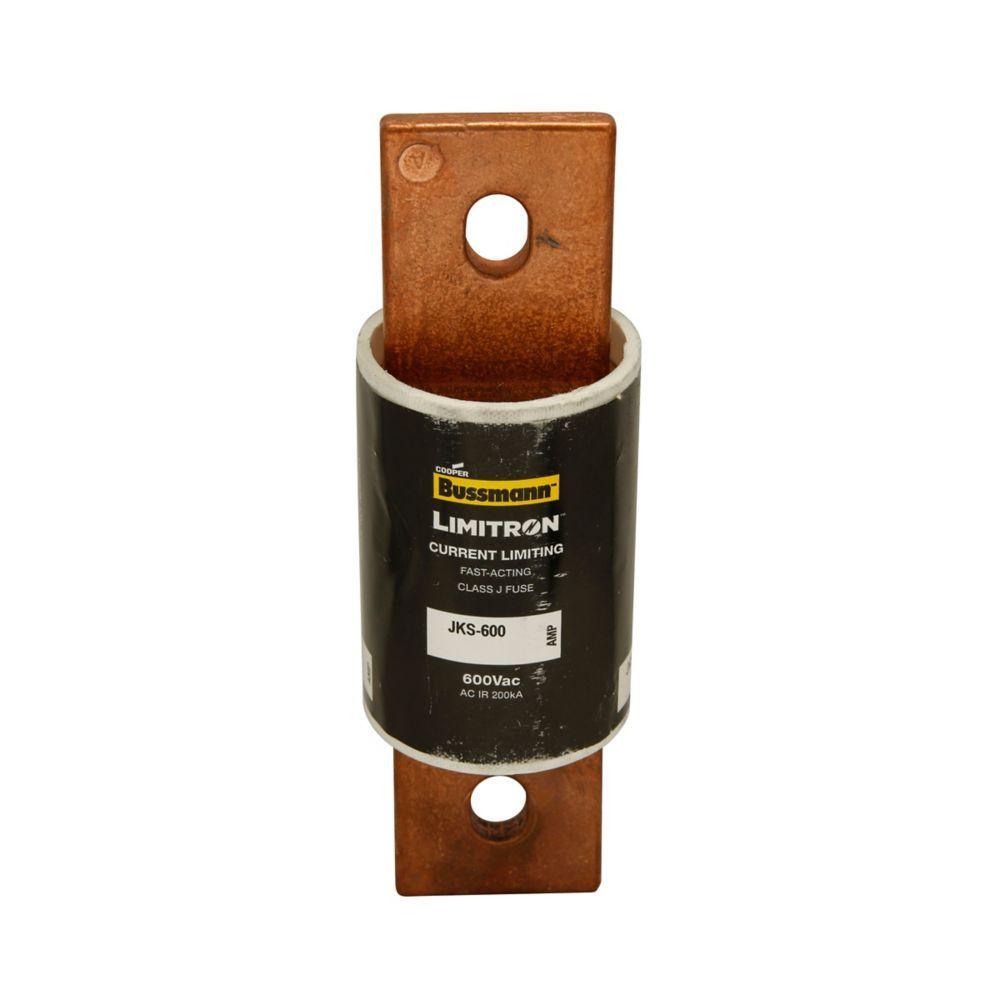

Bussmann JKS-600 Fast Acting Fuse
Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: JKS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 600 A, 600 V, 200 kAIC Interrupt, Class: J, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 2-1/2 in Dia x 8 in L Body Size
Additional Description: BUSS-JKS-600 LIMITRON FAST ACTING FUSE CLASS J
Catalog Description: Eaton Bussmann Series Class J fuse, JKS, fast-acting, current limiting fuse, 600 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Item FeaturesIndustrial Facilities and Factories, Safety and Security Systems, Power Panelboards and Machinery Disconnect Applications
Item Features
Item FeaturesCE Certified|CSA C22.2 File No.53787|RoHS Compliant|UL 248-8 File No.E4273 Guide JDDZ
