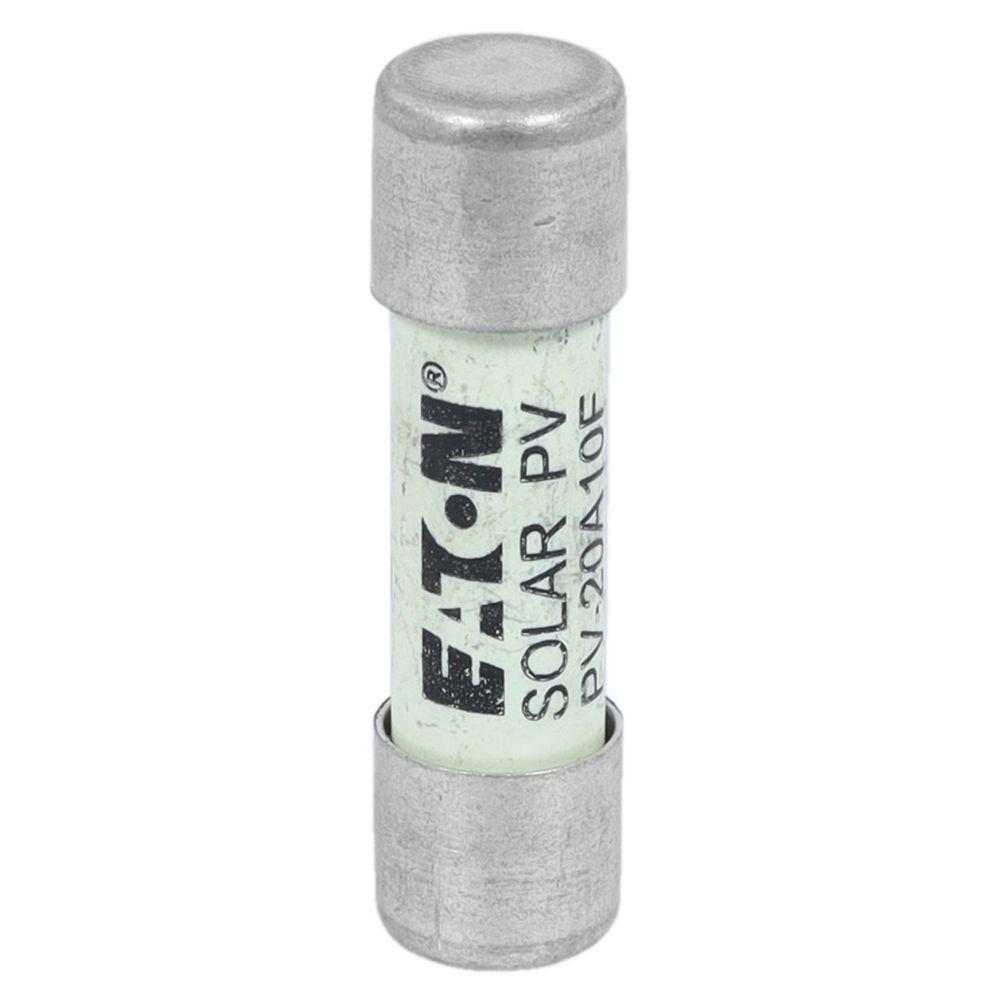

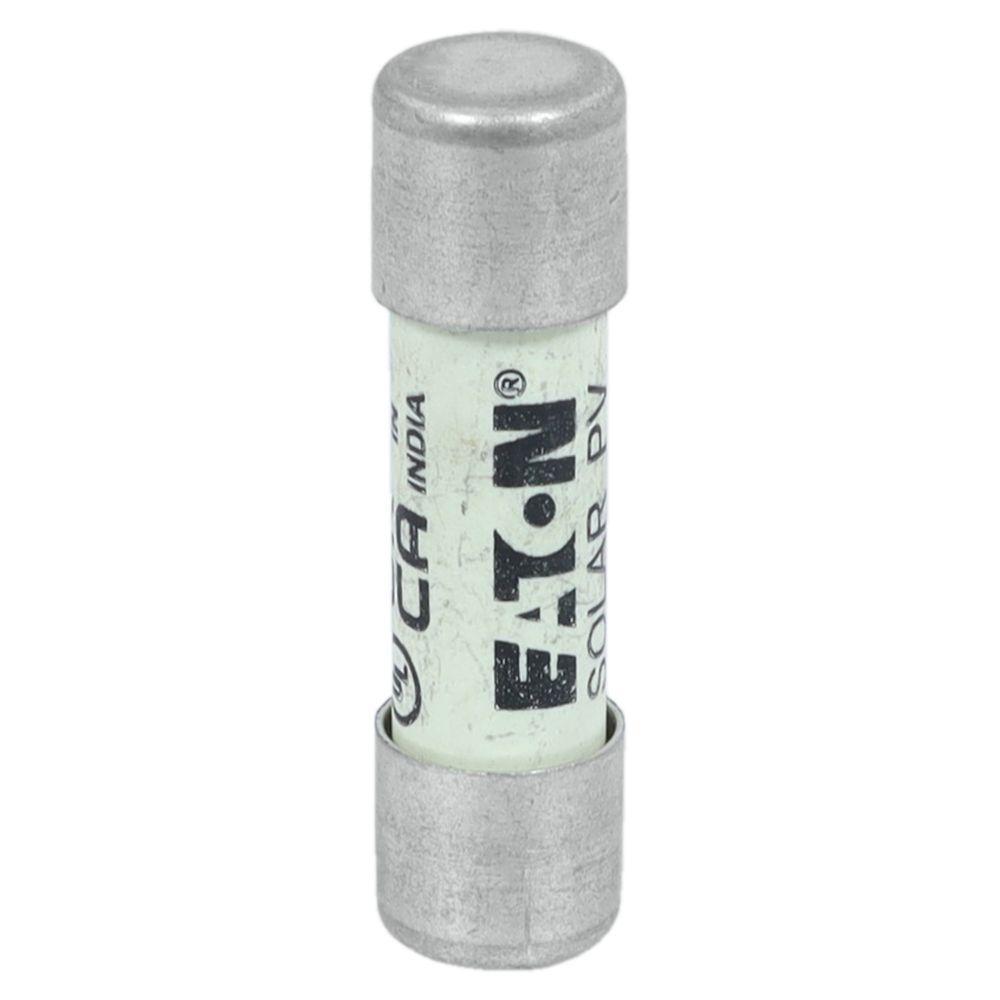

Bussmann PV-20A10F Fast Acting Fuse
Part Number # PV-20A10F
SKU # 2372230
$416.00 / 10Each
$845.90/Each
Bussmann PV-20A10F Key Features
Brand: Bussmann
Part Number # PV-20A10F
SKU #2372230
Amperage Rating: 20, 20 A
Body Type: Cylindrical
Class: gPV
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 50, 50 kA
Rejection/Non-Rejection: Non-Rejection
Response Time: 1 to 3, 1 to 3 ms
Series: PV Series
Terminal Type: Ferrule, Ferrule End
Type: High Speed Photovoltaic
Voltage Rating: 1000, 1000 VDC
Material: Ceramic
Manufacturer Name: Eaton
UNSPSC: 39121625
UPC: 00051712358231
$416.00 / 10Each
$845.90/Each
Bussmann PV-20A10F Fast Acting Fuse
Brand: Bussmann
Part Number: PV-20A10F
Bussmann High Speed Photovoltaic Fuse, Series: PV Series, Non-Indicating, Non-Rejection, 20 A, 1000 VDC, 50 kA Interrupt, Class: gPV, 1 to 3 ms Response, Ferrule End Terminal, Cylindrical Body, Single Element, Ceramic, 10.3 mm Dia x 38 mm L Body
Additional Description: BUSS-PV-20A10F 20AMP 1000V DC SOLAR FERRULE 10 X 38MM
Catalog Description: Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 20A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Ferrule end x ferrule end
PV-20A10F Application
Solar Panel Combiner Boxes, Inverters, PV Wire Harnesses, Renewable Energy Generation, Alternative Energy Generation, Solar Renewable Energy Generation and Storage Systems Renewable Energy ApplicationsPV-20A10F Item Features
- Meets UL and IEC photovoltaic standards for global acceptance
- Low wattage loss performance for energy efficiency
- Low temperature rise performance for more precise sizing
- In-line crimp terminal version is easy to apply in wire harness construction
- 1 to 3 min time constant
- https://www.youtube.com/watch?v=YMvqUyoETXk
PV-20A10F Standards
CCC Marked|CE Marking|CSA Certified|IEC 60269-6|RoHS Compliant|UL 2579 Guide NKCR2SKU #2372230Part Number #PV-20A10FUNSPSC39121625UPC00051712358231
