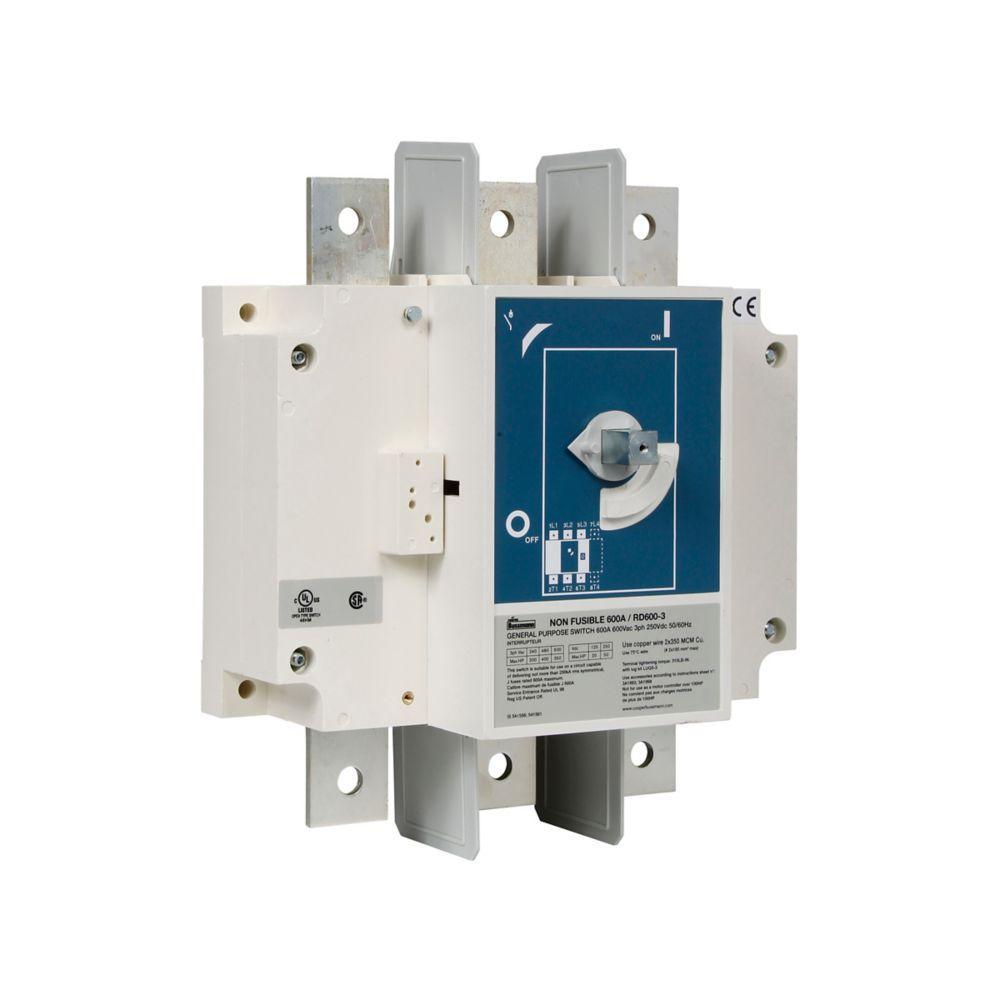

Bussmann RD600-3 Open Rotary Disconnect Switch
Part Number # RD600-3
SKU # 2289465
$2783.03 / Each
$5659.29/Each
Bussmann RD600-3 Key Features
Brand: Bussmann
Part Number # RD600-3
SKU #2289465
Actuator Type: Front Handle
Amperage Rating: 600, 600 A
Contact Form: 1NO-1NC
Dimensions: 5-1/2 in L x 11 in W x 12 in H
Horsepower: 240 hp at 220/240/400 to 440/480 VAC, 350 hp at 600 VAC
Number of Poles: 3
Phase: 3, 3 ph
Series: RD Series
Short Circuit Current Rating (kA): 200, 200 kA
Temperature Rating (Degrees F): -20 to 70 deg C
Type: Non-Fused Standard
Voltage Rating: 600 VAC, 250 VDC, 600 VAC/250 VDC
Country of origin: FR
Manufacturer Name: Eaton
UNSPSC: 39122205
UPC: 00051712402569
$2783.03 / Each
$5659.29/Each
- Bussmann Open Rotary Disconnect Switch, Non-Fused Standard, Series: RD, 600 VAC, 250 VDC, 600 A, 240 hp at 220/240/400 to 440/480 VAC, 350 hp at 600 VAC, 3 ph, 3 Pole, 200 kA Short Circuit, 1NO-1NC Contact Form, Front Handle Actuator, -20 to 70 deg C, 5-1/2 in L x 11 in W x 12 in H Dimensions
RD600-3 Application
General Purpose, Main Disconnect, Branch Circuit Protection, Service Entrance, Stationary Machinery Equipment in Factory and Robotics ApplicationsRD600-3 Item Features
- Most disconnect switches can be operated with a front, side, flange or direct mount handle mechanisms for increased flexibility and reduced inventory
- Easy to install modular accessories make it simple to configure each disconnect switch for the desired application
- Lockout/tagout up to three 1/4 in padlocks on external handles, most disconnect switches also provide an on-switch lockout point for additional flexibility
- Fingersafe with terminal shroud accessories
- Endurance tested at or beyond the stringent levels of the UL standards to ensure durability
- https://www.youtube.com/watch?v=YMvqUyoETXk
RD600-3 Standards
CE Marking|CSA C22.2 No. 257020|IEC 60947-3|RoHS Compliant|UL 94 V-0 Flammability Rated|UL 98 File No. E155130 Guide WHTY/WHTY7SKU #2289465Part Number #RD600-3UNSPSC39122205UPC00051712402569
