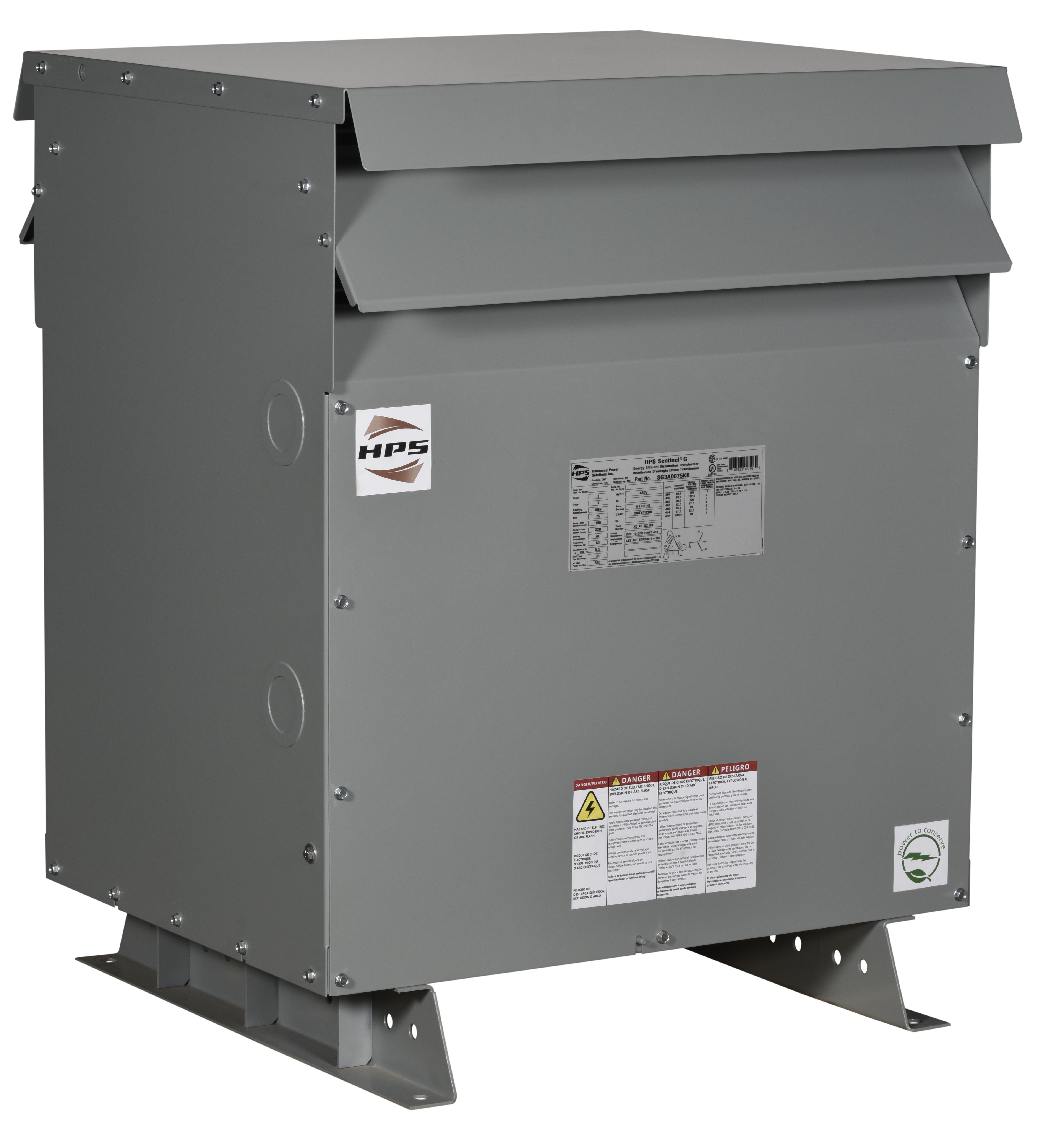

Hammond Power Solutions SG3A0150KB G Distribution Transformer
Image Disclaimers Message
Hammond Power Solutions SG3A0150KB G Distribution Transformer
Hammond Power Solutions SG3A0150KB G Distribution Transformer
Part Number # SG3A0150KB
SKU # 2335938
Hammond Power Solutions SG3A0150KB Key Features
Hammond Power Solutions SG3A0150KB G Distribution Transformer
Brand: Hammond Power Solutions
Part Number: SG3A0150KB
HPS Sentinel G Distribution Transformer, Energy Efficient General Purpose, 480 Delta VAC Primary, 208Y/120 VAC Secondary, 150 kVA, 60 Hz, 3 ph, Lug/Pad, Floor Mount, DH4-N3R - Indoor/Outdoor, 30 deg C, 98.83 % Efficiency, 29-1/2 in L x 31-1/2 in W x 44-1/2 in H
Additional Description: HPS -SG3A0150KB D16 SNTL-G 3PH 150kVA 480D-208Y/120V AL 60Hz 150C 3R AL
Catalog Description: 600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient Distribution Transformer, 480D PV, 208Y/120 SV, 150 kVA, 3PH, Aluminum Wound
ApplicationSupplying Appliance, Lighting, Heating, Motorized Machine and Power Loads from Electrical Distribution System ApplicationsItem Features- Aluminum winding
- Meets latest U.S. DOE 10 CFR part 431 efficiency standards
- Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment
- Cores are precision cut to close tolerances which eliminates burrs and improves performance
- Core is coated to prevent the ingress of moisture
- Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short circuit conditions
- Robust interface between core and coils for better short circuit performance
- Standard 150 deg C temperature rise and 220 deg C insulation class
- ANSI 61 gray, UL50 enclosure finish
- Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation
- Side knockouts standard on all units bottom entry provision conduit entry
- Typically 3.5% to 6.5% impedance
- Generation 3 current design
- Delta primary, wye-N secondary phase
- 40 deg C maximum temperature
- ST-20 standards sound level
- SCD 19 standard primary taps
- DH4 case style
StandardsRoHS Compliant|UL File No.E112313|CSA File No. LR3902SKU #2335938Part Number #SG3A0150KBUNSPSC39121001UPC00803423123673
