Brand: Hammond Power Solutions

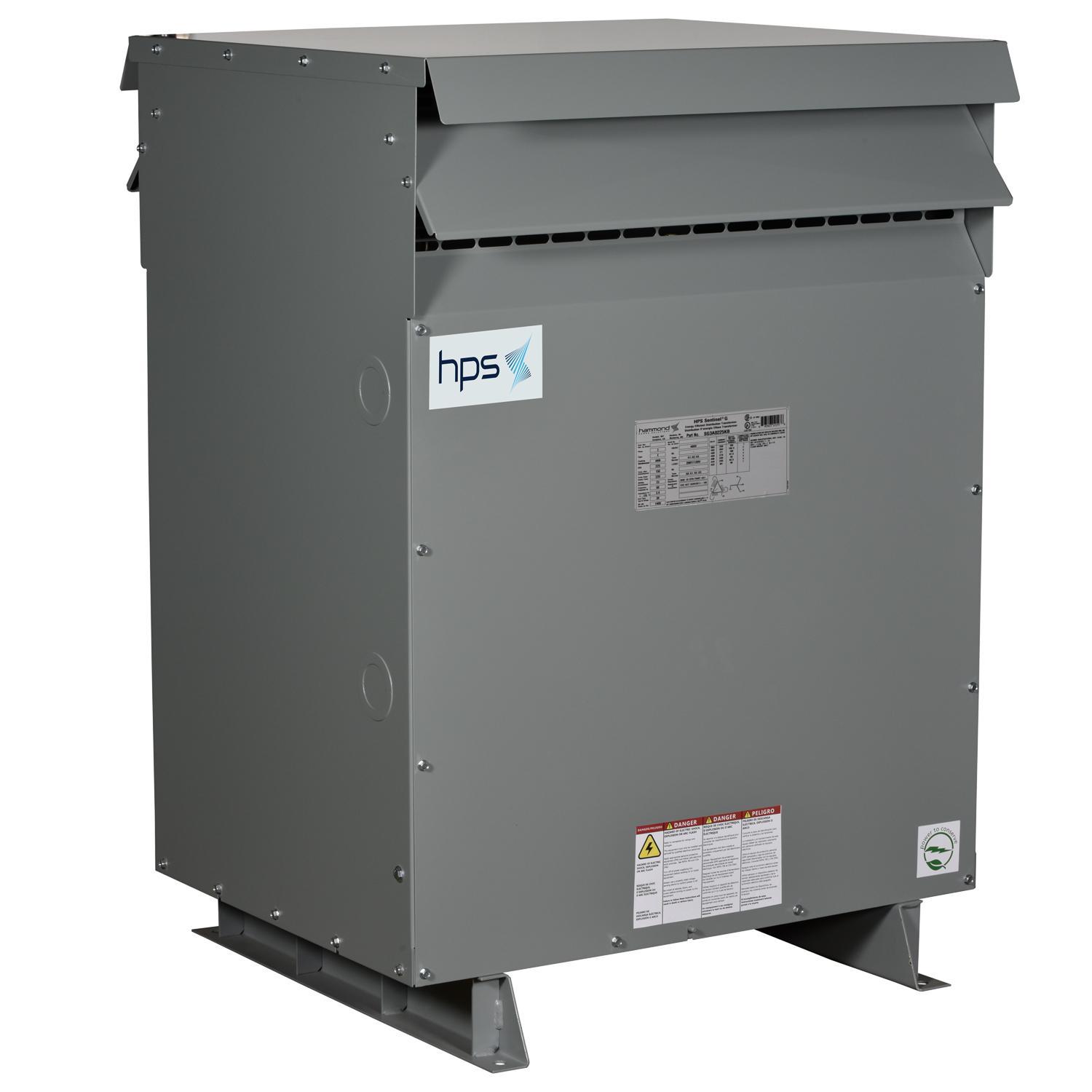

Hammond Power Solutions SG3A0300KB G Distribution Transformer
Part Number # SG3A0300KB
SKU # 2347453
$15958.84 / Each
$22610.00/Each
Hammond Power Solutions SG3A0300KB Key Features
Brand: Hammond Power Solutions
Part Number # SG3A0300KB
SKU #2347453
Dimensions: 52 in H x 37-1/2 in W x 34 in D
Efficiency: 99.02, 99.02 %, 99.02%
Enclosure Type: NEMA 3R
Frequency Rating: 60, 60 Hz
Phase: 3
Power Rating: 300, 300 kVA
Primary Voltage: 480 Delta VAC
Secondary Voltage: 208Y/120 VAC
Series: Sentinel G
Temperature Rating (Degrees F): 30, 30 deg C
Type: Energy Efficient General Purpose
Connection type: Lug/Pad
Country of origin: CA|IN|MX|US
Mounting type: Floor
Manufacturer Name: Hammond Power Solutions
UNSPSC: 39121001
UPC: 00803423123765
$15958.84 / Each
$22610.00/Each
- HPS, SG3A0300KB, Distribution Transformer, Energy Efficient General Purpose, Series: Sentinel G, 480 Delta VAC Primary, 208Y/120 VAC Secondary, 300 kVA Power, 60 Hz Frequency, 3 ph, Lug/Pad Connection, Floor Mounting, NEMA 3R Enclosure, 30 deg C, 99.02 % Efficiency, 52 in H x 37-1/2 in W x 34 in D Dimensions
SG3A0300KB Application
Supplying Appliance, Lighting, Heating, Motorized Machine and Power Loads from Electrical Distribution System ApplicationsSG3A0300KB Item Features
- Aluminum winding
- Meets latest U.S. DOE 10 CFR part 431 efficiency standards
- Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment
- Cores are precision cut to close tolerances which eliminates burrs and improves performance
- Core is coated to prevent the ingress of moisture
- Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short circuit conditions
- Robust interface between core and coils for better short circuit performance
- Standard 150 deg C temperature rise and 220 deg C insulation class
- ANSI 61 gray, UL50 enclosure finish
- Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation
- Side knockouts standard on all units bottom entry provision conduit entry
- Typically 3.5% to 6.5% impedance
- Generation 3 current design
- Delta primary, wye-N secondary phase
- 40 deg C maximum temperature
- ST-20 standards sound level
- SCD 19 standard primary taps
- DH5 case style
SG3A0300KB Standards
RoHS Compliant|UL File No.E112313|CSA File No. LR3902SKU #2347453Part Number #SG3A0300KBUNSPSC39121001UPC00803423123765
