Part #:HBL2620AR
SKU #: 215195
Sale Price: $57.57/EA
Key Features
Part #:HBL2620AR
SKU #: 215195
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 3.14 in W x 4.58 in H, 4.77 in L x 2.85 in W x 3.14 in H
Enclosure: IP20
Horsepower: 2, 2 hp
NEMA Rating: NEMA L5-30R, NEMA L6-30R
Sale Price: $57.57/EA
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are easily visible even when in use
- Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments
- 3-wire grounding
- Galvanized steel mounting plate material
- Gray Valox 357U housing and flange material
- Steel rivet material
- 0.031 in brass ground contact
- Zinc plated steel mounting screws
- 0.031 in brass spring binding plate
- Impact modified PBT housing
- 0.031 in brass contact spring
- Natural white nylon body contact carrier material
- 30 A 10 AWG terminal accommodation
- 2000 VAC minimum dielectric voltage withstand
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
- Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
- V2 or better per UL94/CSA 22.2 No 0.17 flammability
- -40 to 75 deg C maximum continuous (without impact) operating temperature
- https://youtu.be/1DnPJu3QNw0
Specifications
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 3.14 in W x 4.58 in H, 4.77 in L x 2.85 in W x 3.14 in H
Enclosure: IP20
Horsepower: 2, 2 hp
NEMA Rating: NEMA L5-30R, NEMA L6-30R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Back Wired/Screw, Screw
Type: 1-Phase 1-Gang Angled Grounding Heavy Duty Standard Single, Angled Shrouded Single
Voltage Rating: 250, 250 VAC
Color: Gray, Gray/White
Material: Composite/Thermoplastic, PBT
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585234328

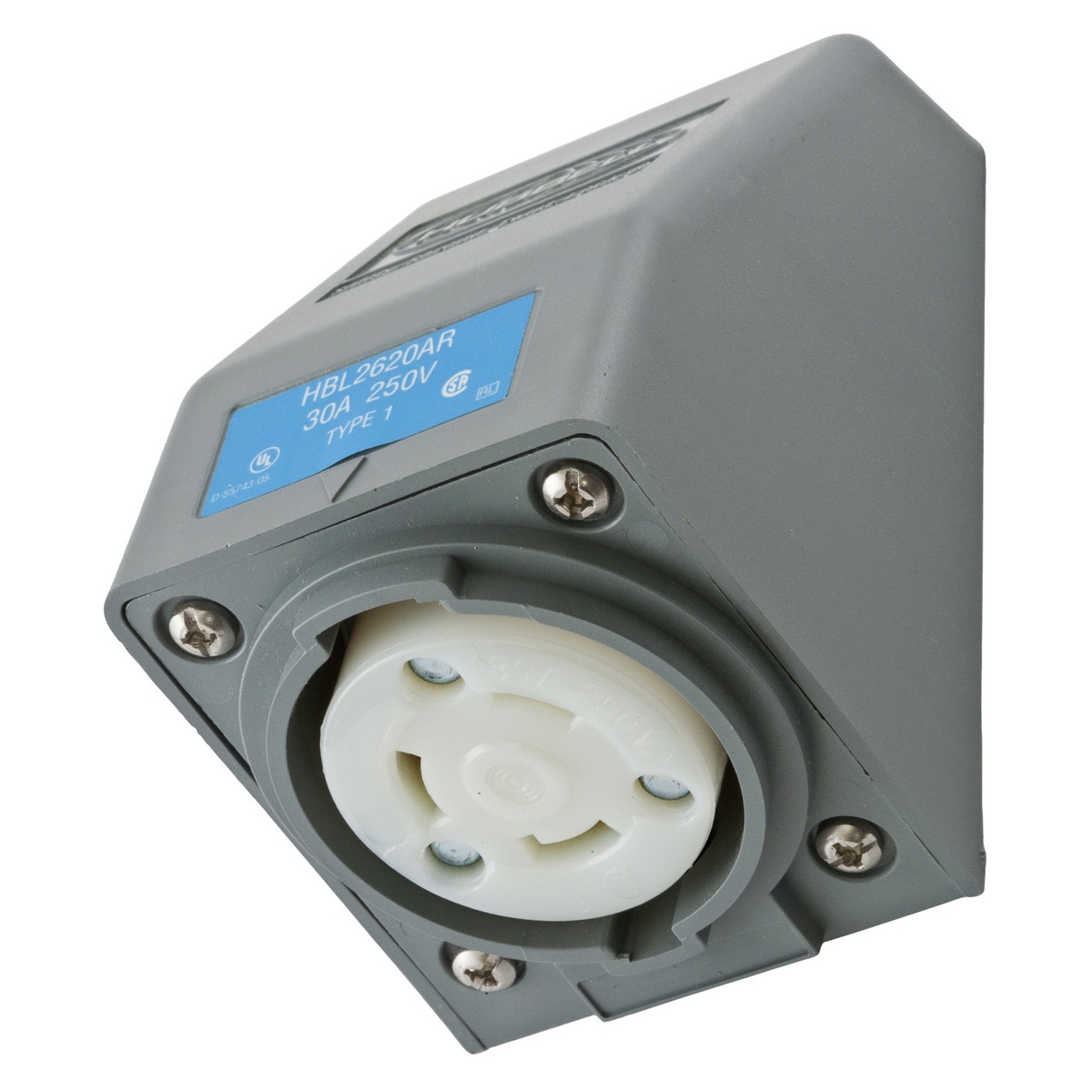

Hubbell HBL2620AR Locking Receptacle
Hubbell Twist-Lock Locking Receptacle, Angled Shrouded Single, 250 VAC, 30 A, 2 hp, 2 Poles, 3 Wires, NEMA L6-30R, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, PBT, Gray, 3.14 in W x 4.58 in H
Additional Description: HUBW-HBL2620AR LKG S/SHRD RCPT, L6-30R, ANG SRF MT,GY L6-30R
Catalog Description: Locking Devices, Twist-Lock®, Safety-Shroud® Receptacle, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, RPT angle housing, One Gang, Gray
Item Features
Item FeaturesCSA C22.2 No. 42|Federal Specification W-C-596, UL 498
