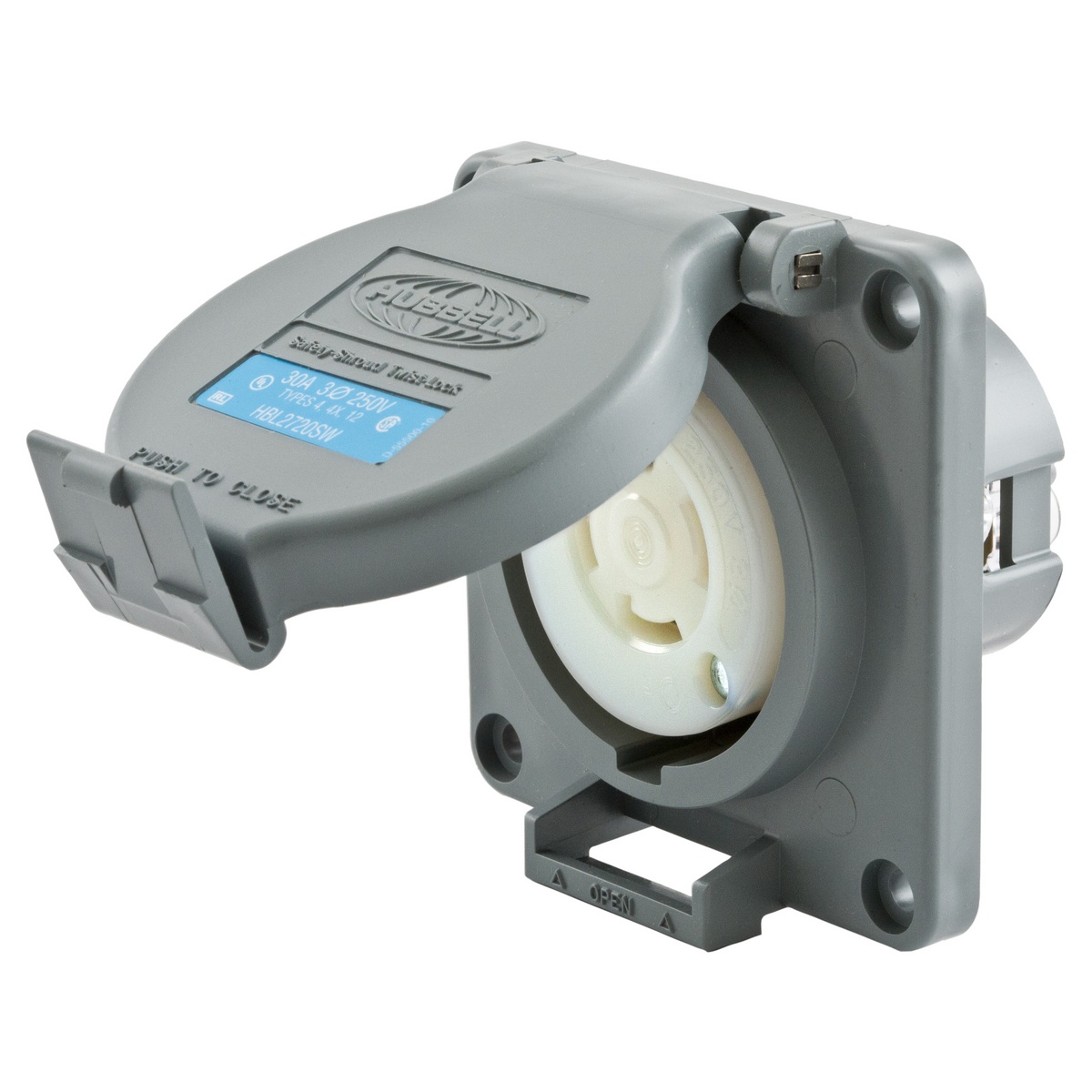

Hubbell HBL2720SW Locking Receptacle
Hubbell HBL2720SW Locking Receptacle
Part Number # HBL2720SW
SKU # 219068
$150.00 / Each
$194.00/Each
Hubbell HBL2720SW Key Features
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 3.75 in L x 3.75 in W x 2.91 in D, 3.75 x 3.75 x 2.9 in
Enclosure: NEMA 4/4X/12/IP66
Horsepower: 3, 3 hp
NEMA Rating: L15-30R, NEMA L15-30R
Number of Poles: 3
Number of Wires: 4
Series: HBL
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Screw
Type: 3-Phase Grounding Heavy Duty Watertight Single Screw Mount, Grounding Heavy Duty Safety Shroud Watertight Single
Voltage Rating: 250, 250 VAC
Color: Gray/White
Country of origin: PR, US
Material: Composite/Thermoplastic, Valox, Valox™
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585231822
$150.00 / Each
$194.00/Each
Hubbell HBL2720SW Locking Receptacle
Brand: Hubbell
Part Number: HBL2720SW
Wiring Device-Kellems Twist-Lock Safety-Shroud Locking Receptacle, 3-Phase Grounding Heavy Duty Watertight Single Screw Mount, 250 VAC, 30 A, 3 hp, 3 Pole, 4 Wires, L15-30R NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 75 deg C, Screw Terminal, Valox , Gray/White, 3.75 x 3.75 x 2.9 in
Additional Description: HUBW-HBL2720SW LKG WT S/SHRD RCPT, 30A3P 250V,L15-30R
Catalog Description: Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-30R, Screw Terminal, PBT housing and flange, Gray.
IncludesLocking CoverItem Features- High impact, thermoplastic housing for heavy-duty industrial environments
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
StandardsUL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS CompliantSKU #219068Part Number #HBL2720SWUNSPSC39121406UPC00783585231822
