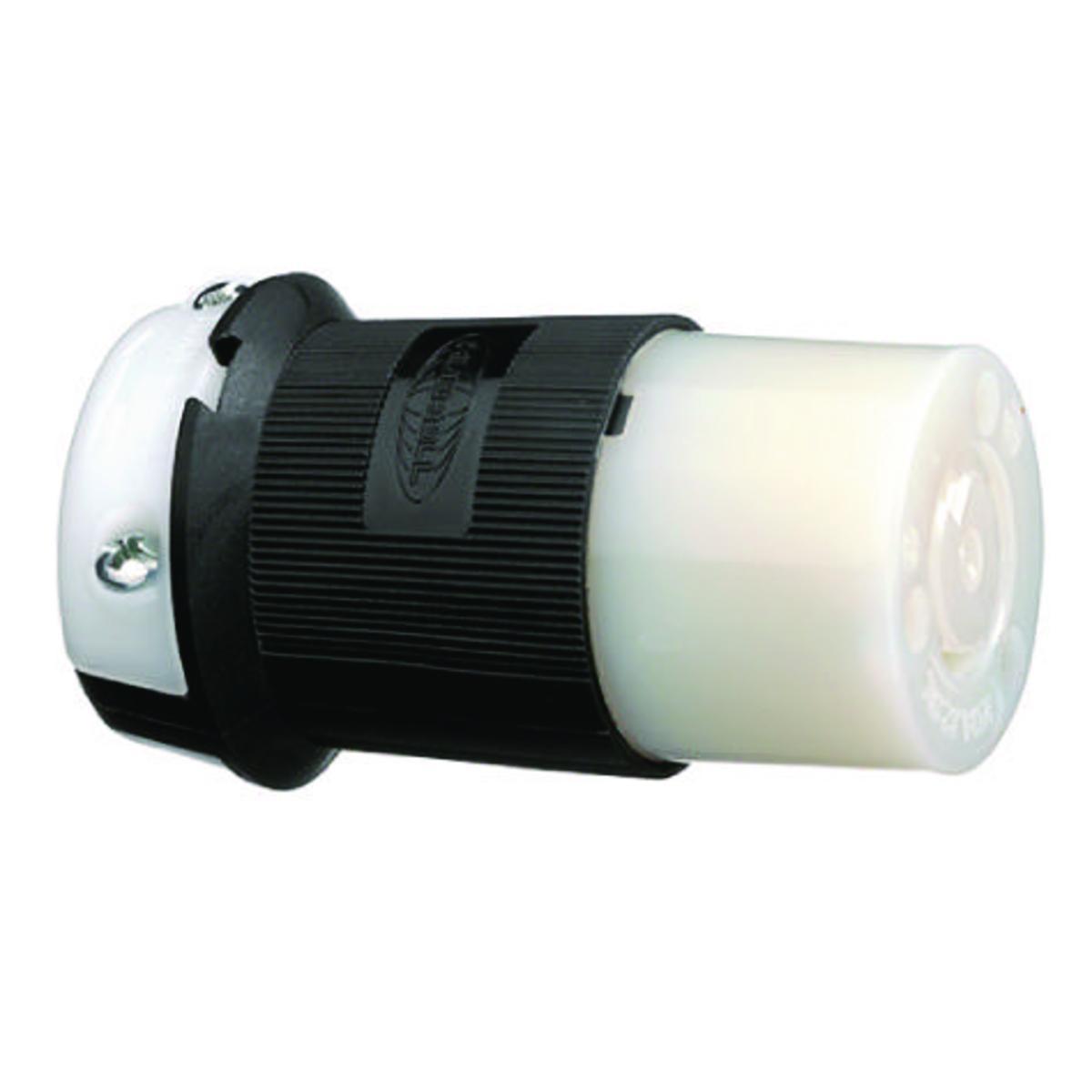

Hubbell HBL2733 Locking Connector
Hubbell HBL2733 Locking Connector
Part Number # HBL2733
SKU # 256901
$115.21 / Each
$176.00/Each
Hubbell HBL2733 Key Features
Brand: Hubbell
Amperage Rating: 30, 30 A
Cord Diameter: 0.63 to 1.2, 0.63 to 1.2 in
Dimensions: 2.33 x 2.33 x 3.86, 2.33 x 2.33 x 3.86 in, 3.84 in L x 2.22 in W
Enclosure: IP20
Horsepower: 10, 10 hp
NEMA Rating: L16-30R, NEMA L16-30R
Number of Poles: 3
Number of Wires: 4
Series: HBL
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Pressure Screw
Type: Heavy Duty Grounding, Heavy Duty Grounding Cord Mount
Voltage Rating: 480, 480 VAC
Color: Black/White
Country of origin: PR, US
Material: Composite, Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121421
UPC: 00783585039336
$115.21 / Each
$176.00/Each
Hubbell HBL2733 Locking Connector
Brand: Hubbell
Part Number: HBL2733
Wiring Device-Kellems Twist-Lock Insulgrip Locking Connector, Heavy Duty Grounding Cord Mount, 480 VAC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.63 to 1.2 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 3.86 in
Additional Description: HUBW-HBL2733 LKG CONN, 30A 3P 480V, L16-30R, B/W 30A 3 PHASE 480V AC
Catalog Description: Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-30R, Screw Terminal, Black and White
Item Features- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
- https://youtu.be/1DnPJu3QNw0
StandardsUL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS CompliantSKU #256901Part Number #HBL2733UNSPSC39121421UPC00783585039336
