Brand: Hubbell

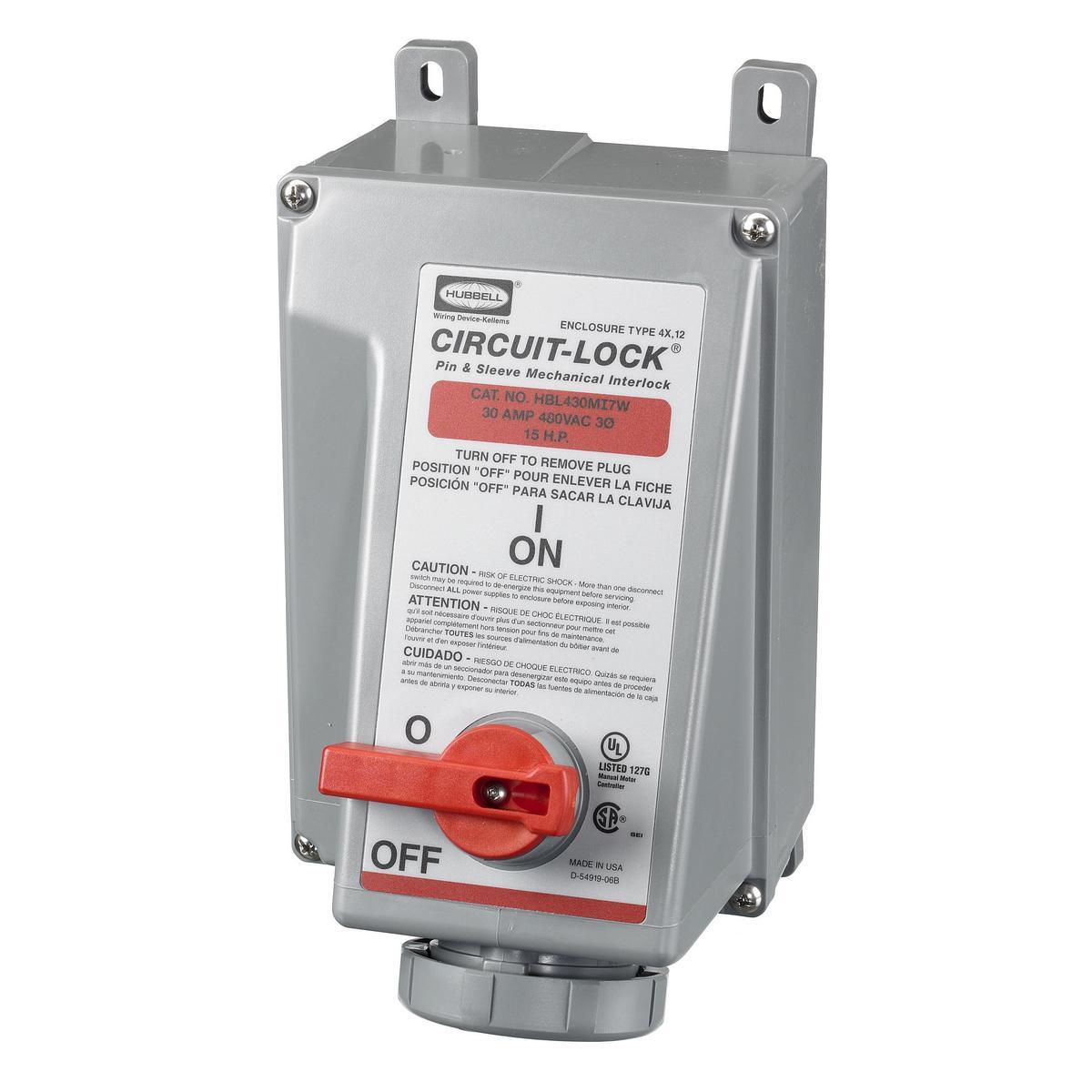

Hubbell HBL430MI7W Mechanical Interlock Device
Part Number # HBL430MI7W
SKU # 187224
$1435.71 / Each
$2724.00/Each
Hubbell HBL430MI7W Key Features
Brand: Hubbell
Part Number # HBL430MI7W
SKU #187224
Amperage Rating: 30 A
Dimensions: 8-3/4 in W x 11 in H
Enclosure: NEMA 4X/12/IP67
Hub Size: 1 in
Mounting: Threaded
Number of Poles: 3
Number of Wires: 4
Power Rating: 14400 W
Type: 3-Phase Female Grounding Non-NEMA Standard Watertight Pressure Screw Terminal
Voltage Rating: 480 VAC
Color: Red
Country of origin: PR, US
Material: Thermoplastic
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585405971
$1435.71 / Each
$2724.00/Each
Hubbell HBL430MI7W Mechanical Interlock Device
Brand: Hubbell
Part Number: HBL430MI7W
Wiring Device-Kellems Mechanical Interlock Device, 3-Phase Female Grounding Non-NEMA Standard Watertight Pressure Screw Terminal, 480 VAC, 30 A, 14400 W Power, 3 Pole, 4 Wires, NEMA 4X/12/IP67 Enclosure, Threaded Mounting, Thermoplastic, Red, 8-3/4 in W x 11 in H
Additional Description: HUBW-HBL430MI7W PS, IEC, MECHINT, 3P4W, 30A 3P 480V, W/T 480V, W/T RCPT
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Mechanically Interlocked Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws
HBL430MI7W Application
High Ampacity Watertight Connection ApplicationsHBL430MI7W Item Features
- Large gears enclosed in a gear box
- Pre-wired IEC Pin and Sleeve receptacle
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL430MI7W Standards
UL 498|IEC 309-1/309-2|CSA Certified|RoHS CompliantSKU #187224Part Number #HBL430MI7WUNSPSC39121406UPC00783585405971
