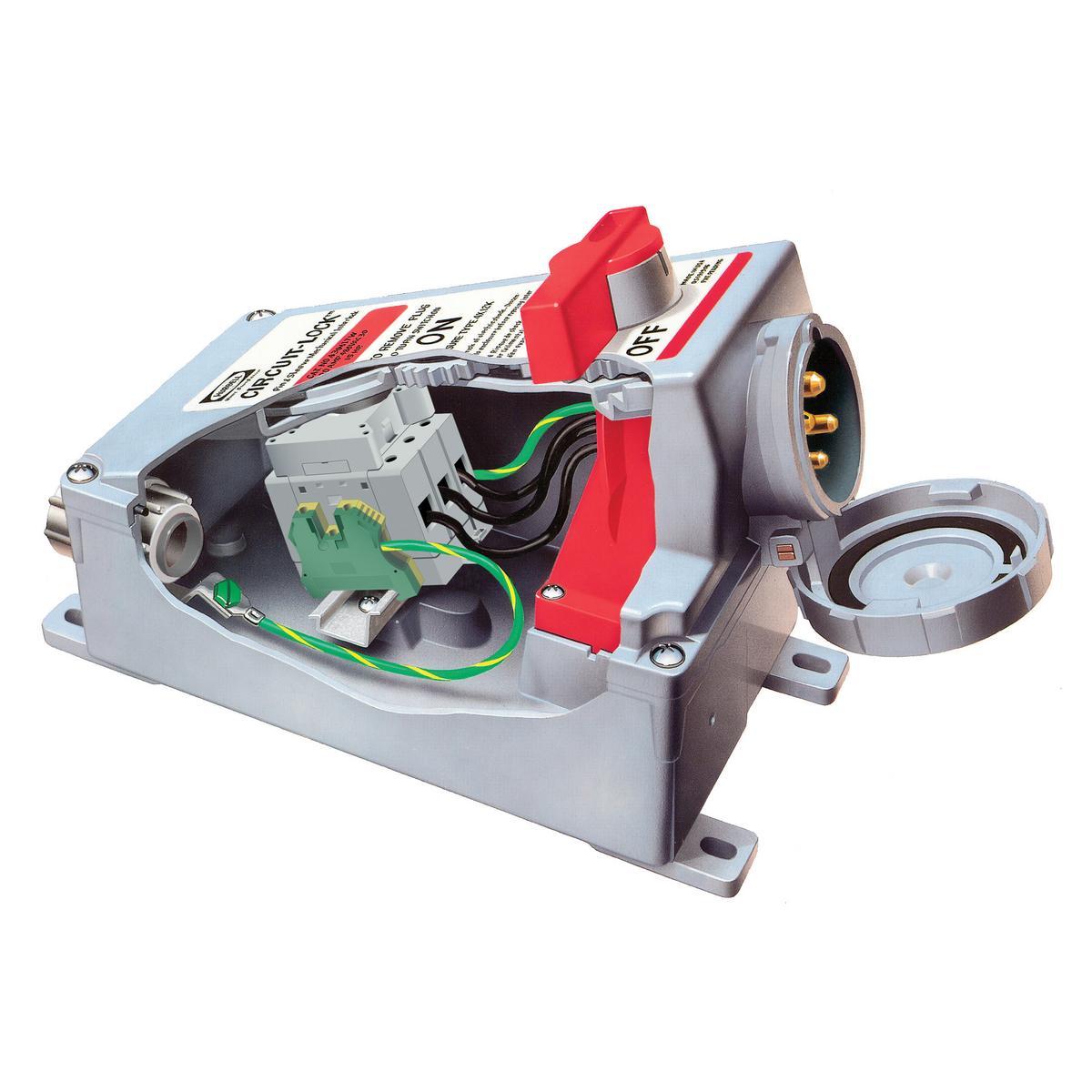

Hubbell HBL430MI7WR Pin and Sleeve Mechanical Interlock
Hubbell HBL430MI7WR Pin and Sleeve Mechanical Interlock
Part #:HBL430MI7WR
SKU #: 1061839
Key Features
Part #:HBL430MI7WR
SKU #: 1061839
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 8-3/4 in L x 7-3/4 in W x 11-1/2 in H
Enclosure: NEMA 4X/12K/IP67
Mounting: Threaded
Number of Poles: 3
- Insulated non-metallic housing, super tough, non-conductive and chemical-resistant for heavy duty industrial environments
- IEC pin and sleeve devices are color coded by voltage for easy identification
- Self-closing gasketed cover, detents into position to fully close automatically
- Lockable handle to meet OSHA lockout tagout regulations
- 2-stage interlocking mechanism to help defeat tampering
- Watertight conduit hub and grounding plate for use on metallic conduit
- Color coded rating pad and receptacle mount to signify voltage
- Large gears enclosed in a gear box assembled on one plane to eliminate possible gear jumping
- Horsepower rated disconnect switch handles large motor loads
- DIN rail mounted switch for easy installation and replacement
- Replaceable spring loaded lift cover with neoprene gasket for a watertight seal
- Reverse service has dependable solid brass pins for longer life and reliable electrical contact
- Comes with brass inserts and stainless steel screws for higher torque and better sealing
- Three molded-in conduit drill points are located on the top, bottom and back surface of enclosure
- Adjustable mounting feet are ductile to allow mounting on irregular surfaces
Hubbell HBL430MI7WR Pin and Sleeve Mechanical Interlock
Wiring Device-Kellems HBL Circuit-Lock Pin and Sleeve Mechanical Interlock, 3-Phase Female Grounding Non-NEMA Reversed Standard UnFusible Watertight Pressure Screw Terminal, 480 VAC, 30 A, 14400 W Power, 3 Pole, 4 Wires, NEMA 4X/12K/IP67 Enclosure, Threaded Mounting, Thermoplastic, Red, 8-3/4 in L x 7-3/4 in W x 11-1/2 in H
Additional Description: HUBW-HBL430MI7WR PS, IEC, MECHINT, 3P4W, 30A 3P 480V, REV MECH.INTLK. RVS REVERSE SERVICE MECHANICAL INTERLOCK
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws
