- Rynite SST35 gland cap
- Withstands 3000 VAC dielectric voltage
- Up to 1000 connect and disconnect cycles at full rated current and voltage endurance
- Nickel plated brass clamp nut
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
- Terminals identified in accordance with UL 1686 (1, 2, 3, green) terminal identification
- All portable cord
- 10 to 8 AWG wire size
- Cord mounted
- Non-NEMA rating
- Brass ground, phase sleeve
- 0.68 in to 1.05 in cord clamp range and 3/8 to 1.2 in outer diameter cable
- Neoprene grommet/glands
- Brass ground standoff
- Nickel plated spring bronze ground bracket
Specifications
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 7.54 in L
Enclosure: NEMA 3/4/4X
Frequency Rating: 50 to 400 Hz
NEMA Rating: 3/4/4X, NEMA 3/4/4X
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Pressure Screw
Type: Type 2 Grounding Male Non-NEMA Portable Standard Watertight, Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount
Voltage Rating: 600 VAC, 250 VDC, 600 VAC/250 VDC
Color: Black/Gray
Material: Composite
UNSPSC: 39121402
UPC: 00783585010182

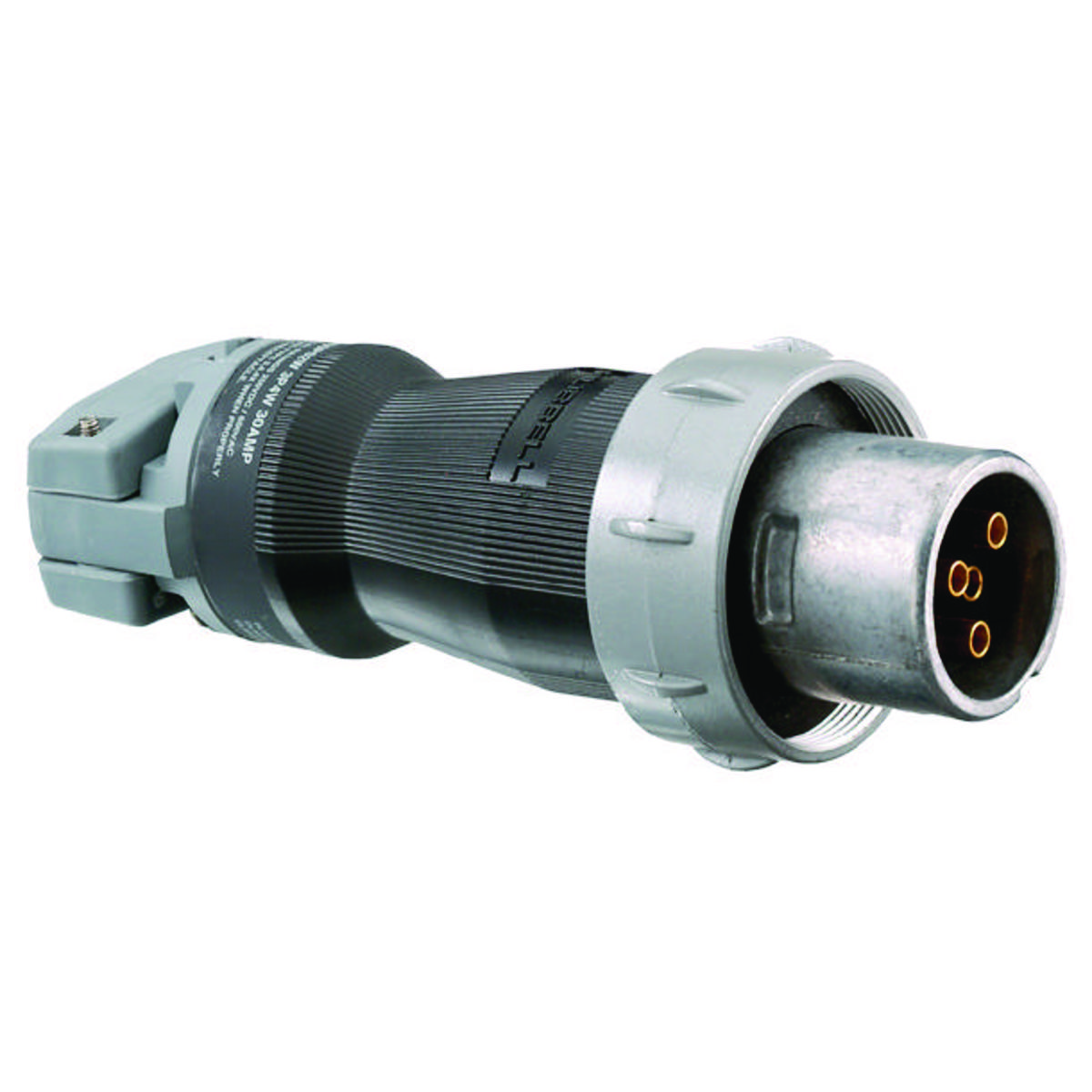

Hubbell HBL430PS2W Pin and Sleeve Plug
Wiring Device-Kellems Insulgrip Pin and Sleeve Plug, Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 600 VAC/250 VDC, 30 A, 3 Pole, 4 Wires, 3/4/4X NEMA Rating, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 7.54 in L
Additional Description: HUBW-HBL430PS2W PS, INS, PLUG, 3P4W, 30A 600V, S2
Catalog Description: Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 30A 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Gray and Black, Watertight
Item Features
