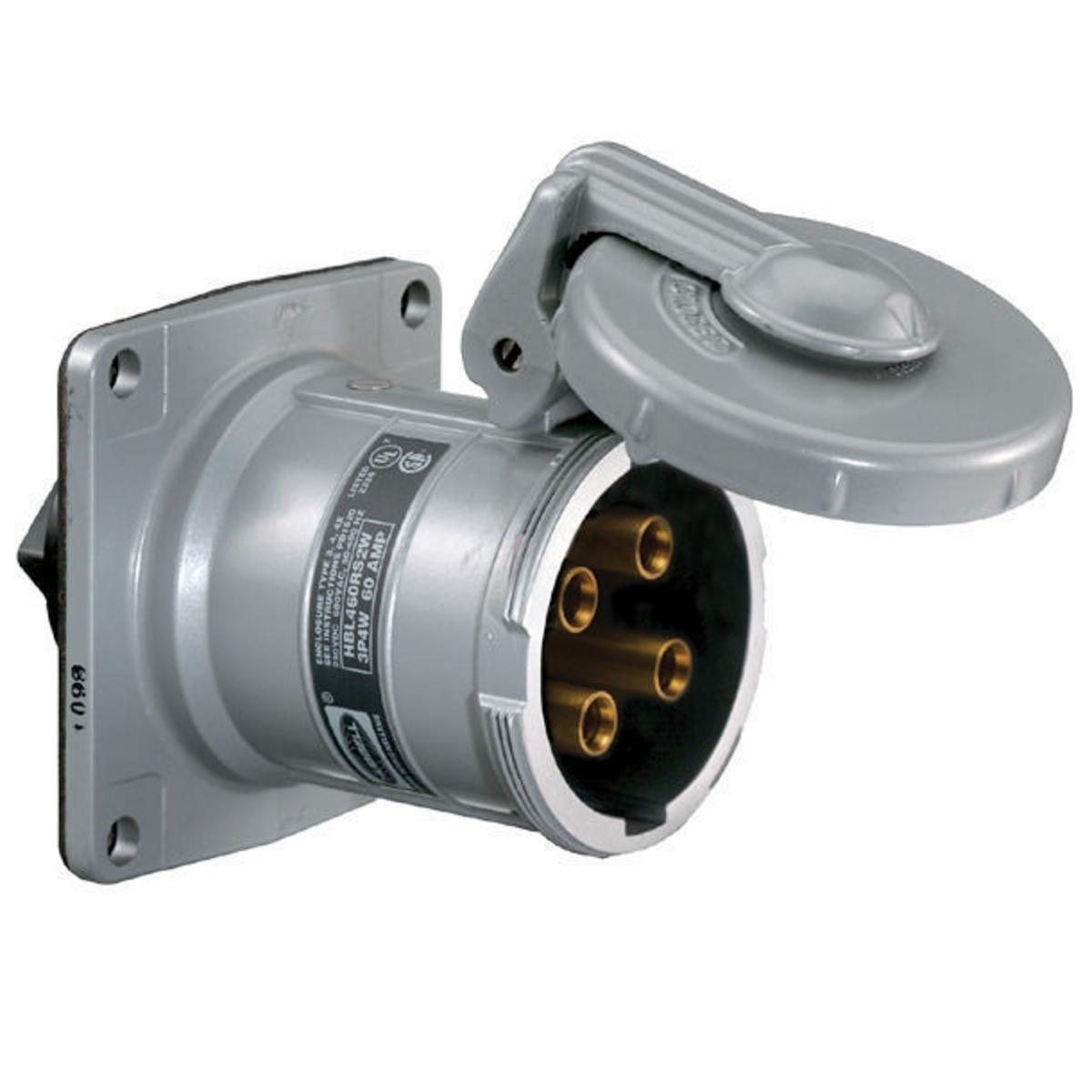

Hubbell HBL530RS1WR Pin and Sleeve Receptacle
![PDP image](https://do1jvmih5t6vs.cloudfront.net/userfiles/ad/large/wiring_device-kellems_hbl530rs1wr.jpg)
Image Disclaimers Message
Hubbell HBL530RS1WR Pin and Sleeve Receptacle
Hubbell HBL530RS1WR Pin and Sleeve Receptacle
Part #:HBL530RS1WR
SKU #: 2141413
Key Features
Part #:HBL530RS1WR
SKU #: 2141413
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 3.89 in L x 3.4 in W
Number of Poles: 4
Number of Wires: 5
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
- Thermoplastic housing provides excellent insulating, impact, corrosion and UV resistant properties
- Protects users and internal components in the roughest of environments
- Locking ring provides a UL type 4X watertight and dust tight seal when the male and female devices are connected
- Sleeve O-ring seal provides a watertight and dust tight seal around the sleeves, assures that contamination will not enter wire chamber
- All brass sleeve contacts provide reliable electrical contact with mating pins, also with minimum heat build-up over time
- Catalog number and rating visible while in use
- Markings are color coded differentiating style I and style II devices
- Housing seal provides a watertight and dust tight seal when mated with receptacle or connector
- Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts
- Shroud protects contact sleeves from deforming from physical abuse
- Molded thermoset polyester provides high resistance to electrical tracking
- Withstands higher temperatures which may result from overload or arcing
- Thermoset properties provide dimensional stability for this critical assembly
- Maintains high unit pressure on mating sleeves
- Ensures reliable electrical contact while minimizing heat rise due to normal pin wear over time
- Closure cap with neoprene gasket provides a 4X watertight seal while not in use
- All brass sleeve contacts provide reliable electrical contact with mating pins
- Watertight neoprene sealing glands for reliable seal
- Spring loaded, gasketed cover for dust tight seal
- Pin chamber confines arcing within the interior chamber
Hubbell HBL530RS1WR Pin and Sleeve Receptacle
Wiring Device-Kellems HBL Insulgrip Pin and Sleeve Receptacle, 3-Phase Grounding Style 1 Reversed Single Flanged Standard Screw Mount Watertight, 600 VAC, 30 A, 4 Pole, 5 Wires, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Black/Gray, 3.89 in L x 3.4 in W
Additional Description: HUBW-HBL530RS1WR PS, INS, RECP, 4P5W, 30A 600V, S1 REV RVS.RECEPTACLE
Catalog Description: Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 30A 600V AC, 3- Pole 4-Wire Grounding Style 1, Terminal Screws Gray and Black
