- Accommodates 20/30 A Twist-Lock receptacle
- Zinc 3/4 in watertight conduit hub
- Neoprene enclosure gasket
- 600 Vrms maximum working voltage
- Withstands 3000 VAC minimum dielectric voltage
- Lockable handle meets OSHA lockout requirements
- 2-position 30 A contact
- 60 Hz frequency rating
- 6000 cycles operating
- Without receptacle
- Type 3R rainproof or 12K dust-tight
- NEMA 4X/IP54 enclosure rating
- Molded Valox resists abuse, corrosion and enhances safety
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- 30 A, 10 AWG terminal accommodation
- Terminals identified in accordance with UL 498 (X, Y, Z, white, green) terminal identification
- PBT base, top, handle and shaft
Specifications
Brand: Hubbell
Amperage Rating: 30 A
Dimensions: 11.38 x 4.88 x 4.5 in, 12-1/4 in H x 5-3/4 in W x 4-3/8 in D
Frequency Rating: 60 Hz
Horsepower: 15 hp
NEMA Rating: 4X
Number of Poles: 3
Number of Wires: 5
Specifications: 600 VAC, 30 A, NEMA 4X
Suitable For Use With: Switches and Lighting Controls
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Screw
Type: 2-Position Extra Heavy Duty Lever Actuated Standard Sized Foot Mount, 3-Pole Extra Heavy Duty Lever Actuated Standard Sized
Voltage Rating: 600 VAC
Color: Gray
Material: Composite, PBT
UNSPSC: 39122205
UPC: 00783585006055

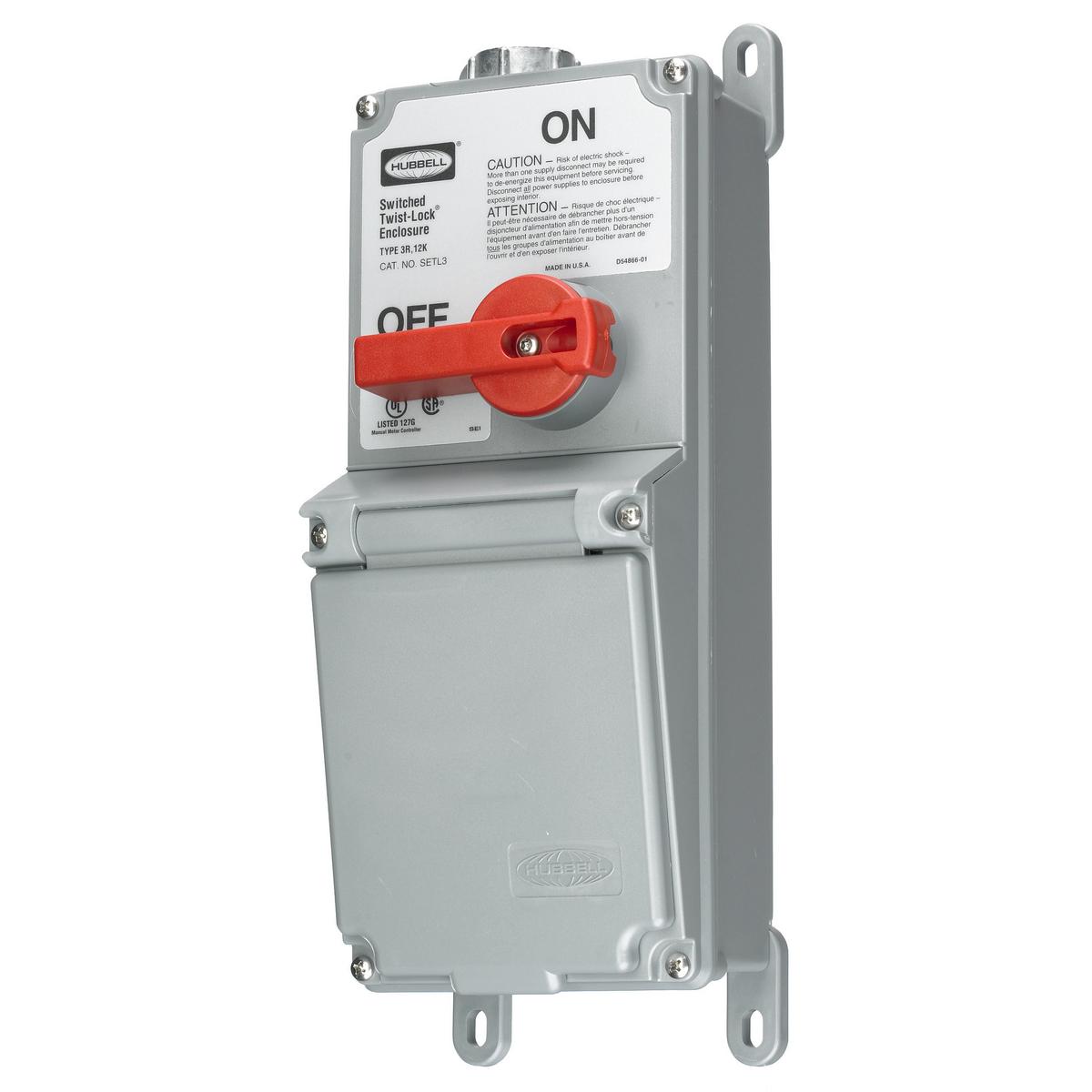

Hubbell SETL3 Switched Enclosure
Wiring Device-Kellems Twist-Lock Switched Enclosure, 2-Position Extra Heavy Duty Lever Actuated Standard Sized Foot Mount, 600 VAC, 30 A, 60 Hz Frequency, 3 Pole, 4X NEMA Rating, -40 to 75 deg C, Composite, Gray, 11.38 x 4.88 x 4.5 in
Additional Description: HUBW-SETL3 SWITCHED ENCLOSURE, W/O RCPT
Catalog Description: Switches and Lighting Controls, Industrial Grade, Lever Actuated, Switched Enclosure, Three Pole, 30A 600V AC Max, Terminal Screws, Gray.
