- Nylon cord connector resists most common industrial corrosives
- 0.7 in L thread
- 1.01 in Dia throat
- They provide durable performance and a clean attractive look without adding unwanted weight
- Provides effective pullout protection
- Lightweight design
- Suitable for use in wet locations when used with a listed nylon washer between box and fitting
- Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
- Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
- Patented GOTCHA ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
- Orchid color code
- 1.36 to 1.41 in recommended knockout hole
Specifications
Brand: Hubbell
Cable Openings: 0.75 to 0.88, 0.75 to 0.88 in
Dimensions: 1.88 in L x 1.88 in W x 2.45 in H
Finish: Smooth
Number of Conductors: 1
Series: SHC
Temperature Rating (Degrees F): -30 to 225, -30 to 225 deg F
Trade Size: 1 in, 1 in NPT
Type: Form 4 Standard Duty, Form 4 Standard Duty Straight
Cable type: Jacketed
Color: Gray/Orchid
Connection type: MNPT, Straight Male
Material: Nylon
UNSPSC: 39121431
UPC: 00783585208145

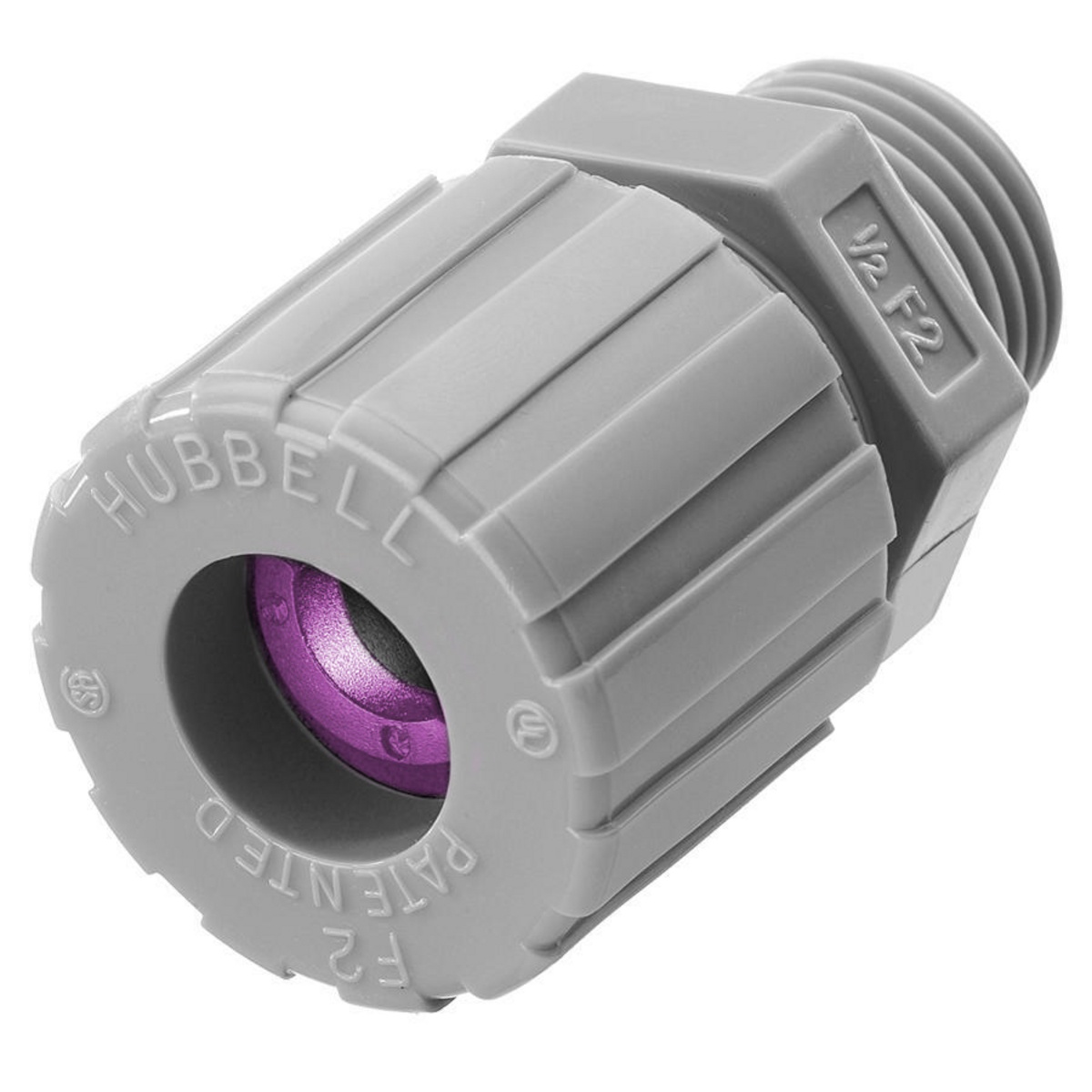

Hubbell SHC1042CR Cord Connector
Wiring Device-Kellems Cord Connector, Form 4 Standard Duty Straight, 1 in Trade, 1 Conductor, Cable Openings: 0.75 to 0.88 in, Jacketed Cable, MNPT Connection, Nylon, Smooth, Gray/Orchid, -30 to 225 deg F, 1.88 in L x 1.88 in W x 2.45 in H Dimensions
Additional Description: HUBW-SHC1042CR CORDCON, STR ML, .75-.88, 1"", NYL, GY"" NYL, GY GY
Catalog Description: Kellems Wire Management, Cord Connectors, Straight Male, .75-.88"", 1"", Nylon""
