- One piece design with machined threads
- 1.39 in Dia throat
- Suitable for use in wet locations when used with a listed nylon washer between box and fitting
- The zinc plated steel cord connectors offers the strength of steel and the corrosion resistance of zinc plating
- These heavy duty connectors hold up to most manufacturing chemicals including acid solutions, solvents and other corrosive materials
- Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
- Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
- Patented GOTCHA ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
- 1.97 to 2.02 in recommended knockout hole
- 0.74 in L thread
Specifications
Brand: Hubbell
Cable Openings: 1 to 1.13, 1 to 1.13 in
Dimensions: 2.4 in Dia x 2.44 in L
Finish: Machined, Machined/Zinc Plated
Number of Conductors: 1
Series: SHC
Temperature Rating (Degrees F): -30 to 225, -30 to 225 deg F
Trade Size: 1-1/2, 1-1/2 in, 1-1/2 in NPT
Type: Form 5 Standard Duty, Form 5 Standard Duty Straight
Cable type: Jacketed
Color: Metallic/White
Connection type: MNPT, Straight Male
Material: Malleable Iron, Zinc Plated Steel
UNSPSC: 39121431
UPC: 00783585210575

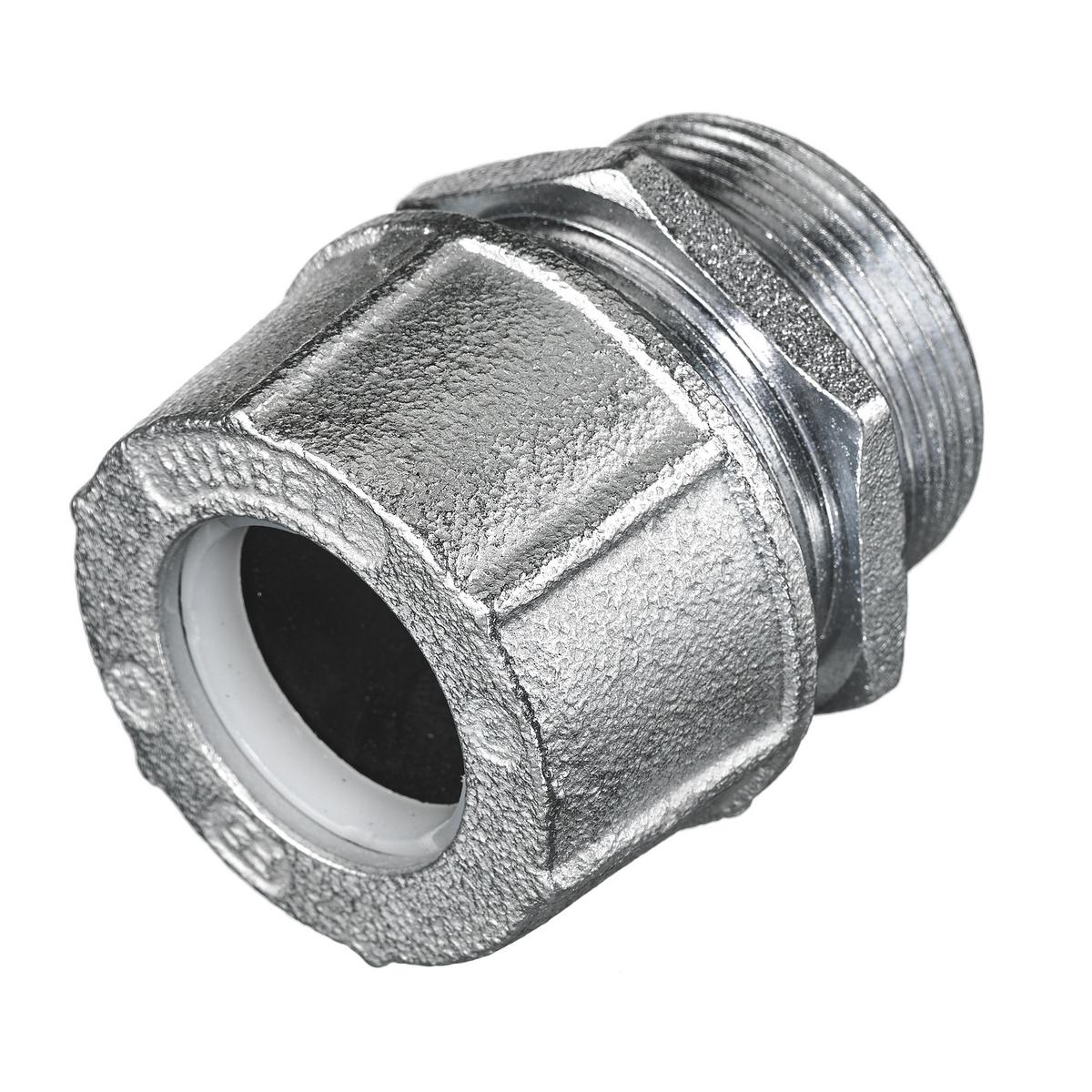

Hubbell SHC1057ZP Cord Connector
Wiring Device-Kellems Cord Connector, Form 5 Standard Duty Straight, 1-1/2 in Trade, 1 Conductor, Cable Openings: 1 to 1.13 in, Jacketed Cable, MNPT Connection, Malleable Iron, Machined/Zinc Plated, Metallic/White, -30 to 225 deg F
Additional Description: HUBW-SHC1057ZP CORDCON, STR ML, 1.00-1.13, 1 1/2"", STL"" 1/2"", STL 1/2"; STL 1/2", STL 1-1.25 CORD
Catalog Description: Kellems® Straight Male Cord Connector, 1.00-1.13, 1½"" Iron""
