- Nylon cord connector resists most common industrial corrosives
- 0.55 in L thread
- 0.77 in Dia throat
- Hubbells nylon cord connectors resist most common industrial corrosive and provide effective pullout protection in a lightweight design
- They are ideal for any application where weight, conductivity or corrosion may be an issue
- Suitable for use in wet locations when used with a listed nylon washer between box and fitting
- Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
- Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
- Patented GOTCHA ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
- Yellow color code
- 1.09 to 1.14 in recommended knockout hole
Specifications
Brand: Hubbell
Cable Openings: 0.63 to 0.75, 0.63 to 0.75 in
Dimensions: 1.56 in Dia x 2.15 in L
Finish: Smooth
Number of Conductors: 1
Series: SHC
Temperature Rating (Degrees F): -30 to 225, -30 to 225 deg F
Trade Size: 3/4, 3/4 in, 3/4 in NPT
Type: Form 3 Standard Duty, Form 3 Standard Duty Straight
Cable type: Jacketed
Color: Black/Yellow
Connection type: MNPT, Straight Male
Material: Nylon
UNSPSC: 39121431
UPC: 00783585451725

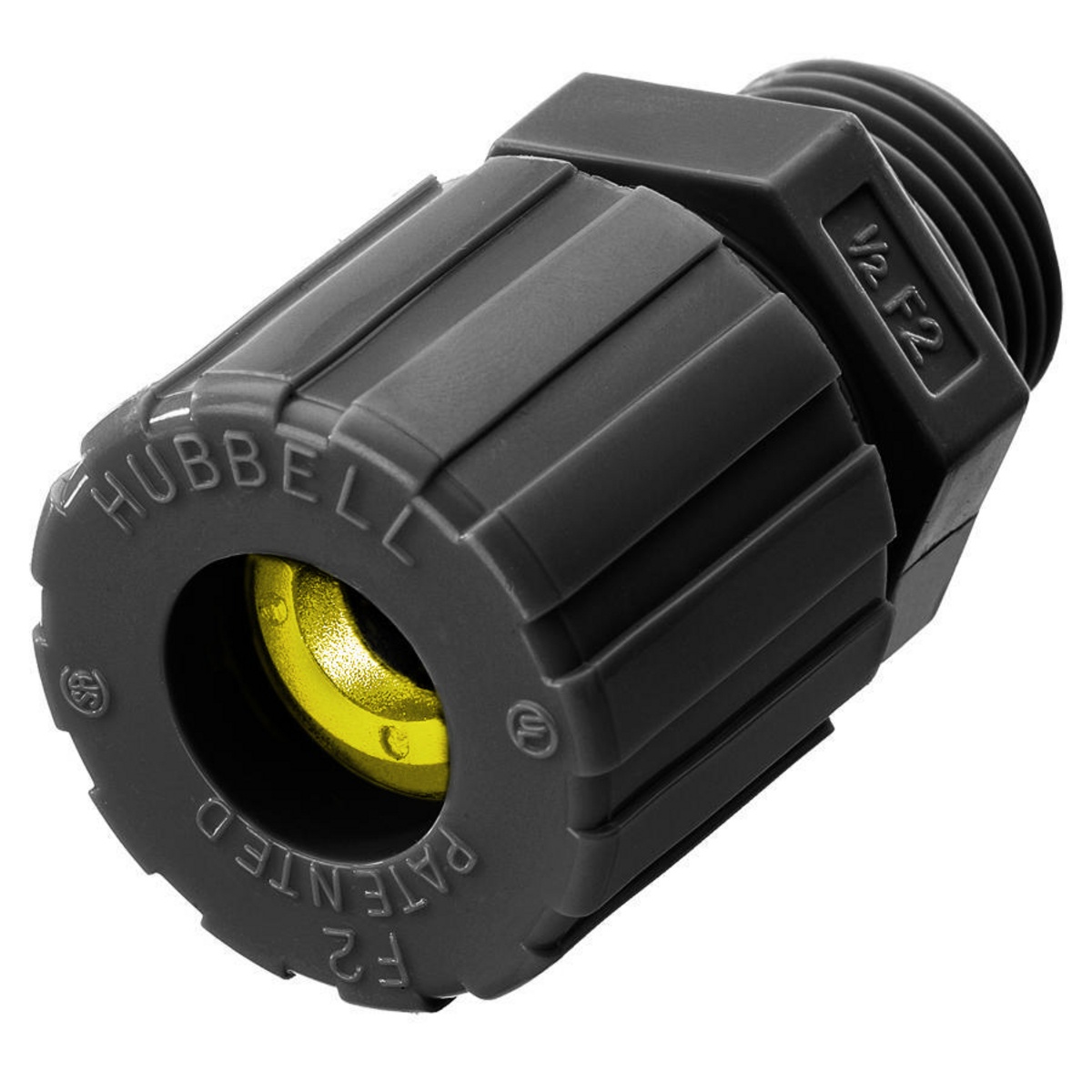

Hubbell SHC2037CR Cord Connector
Wiring Device-Kellems Cord Connector, Form 3 Standard Duty Straight, 3/4 in Trade, 1 Conductor, Cable Openings: 0.63 to 0.75 in, Jacketed Cable, MNPT Connection, Nylon, Smooth, Black/Yellow, -30 to 225 deg F
Additional Description: HUBW-SHC2037CR CORDCON, STR ML, .63-.75, 3/4"", NYL, BK"" NYL, BK NYL 3/4NPT
Catalog Description: Kellems Wire Management, Cord Connectors, Straight Male, .63-.75, 3/4"", Nylon""
