Brand: Hubbell

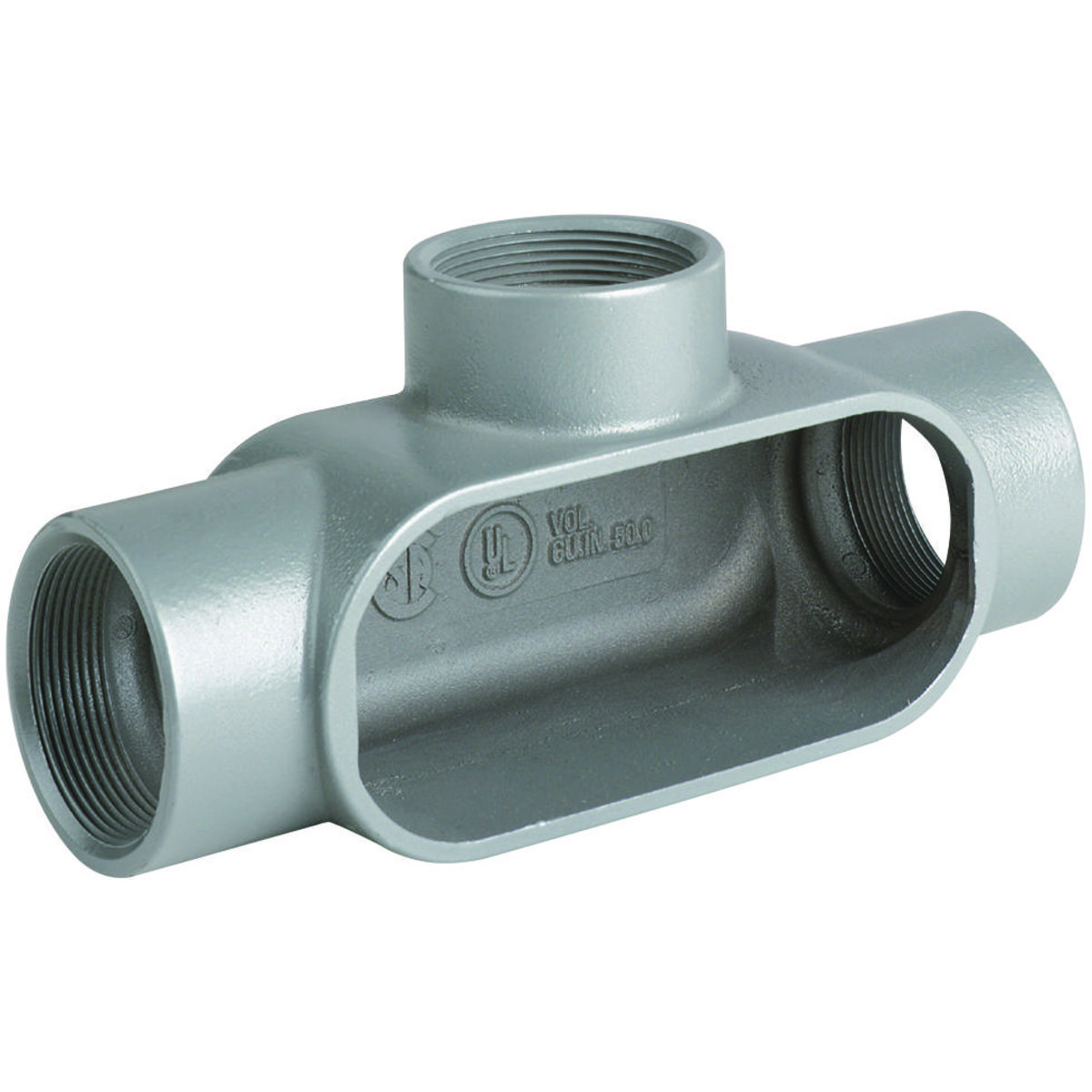

Hubbell T27 Duraloy 7 Conduit Body
Image Disclaimers Message
Brand: Hubbell
Hubbell T27 Duraloy 7 Conduit Body
Brand: Hubbell
Hubbell T27 Duraloy 7 Conduit Body
Part #:T27
SKU #: 2271536
$36.17/EA
Key Features
Part #:T27
SKU #: 2271536
Brand: Hubbell
Capacity: 9.5, 9.5 cu-in
Dimensions: 6-5/16 in L x 2-3/4 in W x 2-1/16 in H
Enclosure: NEMA 3
Finish: Tri-Coated
Form: 7
$36.17/EA
- Intermateability UL Listed and CSA Certified interchangeability with competitive products
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 seal
- Innovative spring clip design for installation ease and repeat usage
- Smooth integral wire bushings protects cable from damage when wires are pulled through opening
- Flat back design for greater wiring capacity and mounting stability
- Ten standard hub configurations
- Suitable for wet locations when used with gasketed covers
- Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
Specifications
Brand: Hubbell
Capacity: 9.5, 9.5 cu-in
Dimensions: 6-5/16 in L x 2-3/4 in W x 2-1/16 in H
Enclosure: NEMA 3
Finish: Tri-Coated
Form: 7
Hub Size: 3/4, 3/4 in
Type: Type T
Color: Gray
Connection type: NPT
Country of origin: IN
Material: Iron
Manufacturer Name: Hubbell
UNSPSC: 39131708
UPC: 00783936011318
Hubbell T27 Duraloy 7 Conduit Body
Killark Duraloy 7 Conduit Body, Type T, 3/4 in Hub, 3 Hubs, 9.5 cu-in, 7, NPT, Iron, Tri-Coated, Gray, 6-5/16 in L x 2-3/4 in W x 2-1/16 in H
Additional Description: KILL-T27 DURALOY7 3/4"" T COND. BDY FE
Catalog Description: 3/4" T Hub, Iron Form 7 Conduit Body
Item FeaturesFor to provide access to conductors for pulling, splicing and maintenance and threaded for rigid conduit and IMC
Item Features
Item FeaturesUL File No. E3397|CSA File No. LR11852|Federal Specification W-C-586D/A-A 50563|NEC 501.10(b)/502.10/503.10 Class I Div 2
