Brand: Legrand-Pass & Seymour

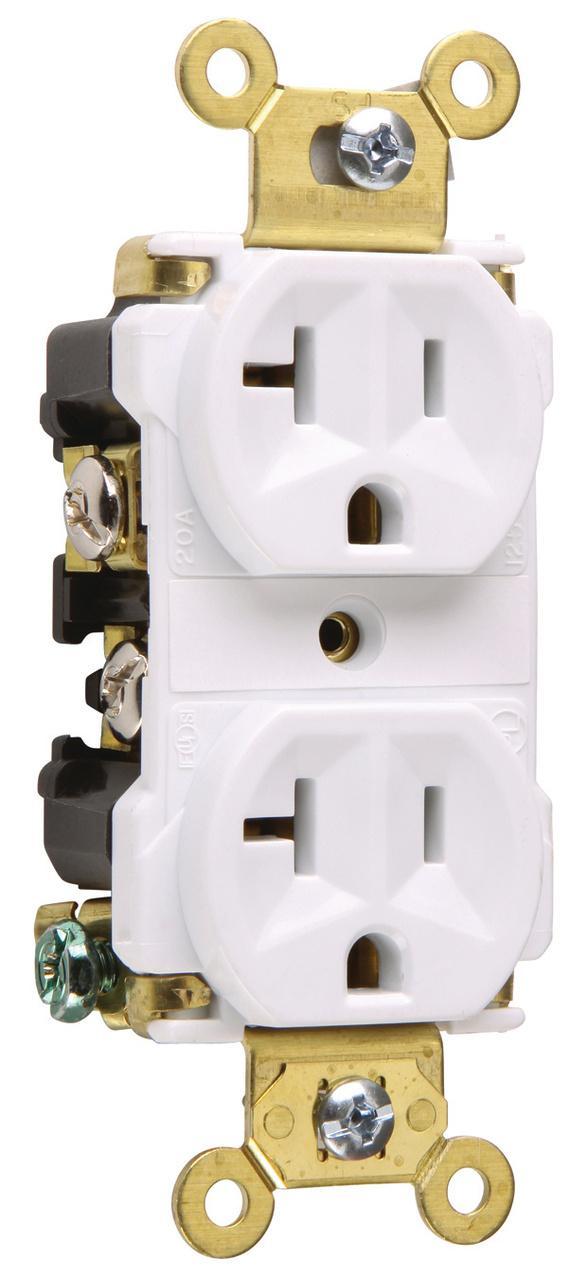

Legrand-Pass & Seymour 5362-AW Straight Blade Receptacle
Part Number # 5362-AW
SKU # 2388289
$34.81 / Each
$40.62/Each
Legrand-Pass & Seymour 5362-AW Key Features
Brand: Legrand-Pass & Seymour
Part Number # 5362-AW
SKU #2388289
Amperage Rating: 20 A
Dimensions: 1.625 in L x 0.9 in W x 3.281 in H
NEMA Rating: NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 60 deg C
Terminal Type: Back/Side Wire
Type: Duplex Extra Heavy Duty
Voltage Rating: 125 VAC
Color: White
Country of origin: MX
Material: Nylon
Manufacturer Name: Legrand
UNSPSC: 39121406
UPC: 00785007528190
$34.81 / Each
$40.62/Each
Legrand-Pass & Seymour 5362-AW Straight Blade Receptacle
Brand: Legrand-Pass & Seymour
Part Number: 5362-AW
Pass & Seymour Straight Blade Receptacle, Duplex Extra Heavy Duty, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, White, 1.625 in L x 0.9 in W x 3.281 in H Dimensions
Additional Description: PS -5362-AW DUP RECEPT 20A/125VAC W
Catalog Description: Industrial Extra Heavy-Duty Spec Grade Duplex Receptacle Back and Side Wire 20A 125V
5362-AW Application
Industrial and Institutional Applications5362-AW Item Features
- Auto-ground clip assures positive ground
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
- 0.036 in THK, brass triple wipe power contacts for lasting retention
- Oversized #10 deep tri-drive head brass terminal and ground screws
- Exclusive patented feature, external screw pressure plate back wire clamp-on ground terminal for faster, easier installation
- Line terminals accept 14 to 10 AWG stranded or solid copper clad conductors
- Strap tabs wrap-around and lock down on face to prevent strap from separating from face and back body
- Withstands 2000 VAC minimum dielectric voltage
- Wattage of electrical power is expressed in amperage and voltage
- One-piece brass mounting strap with integral ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
5362-AW Standards
CSA C22.2 No. 42|cULus Listed|ECCN: EAR99|UL 498|UL 94 V-2 Flammability RatedSKU #2388289Part Number #5362-AWUNSPSC39121406UPC00785007528190
