Part #:7113000
SKU #: 44944
Key Features
Part #:7113000
SKU #: 44944
Brand: Rittal
Dimensions: 18 in L x 15 mm W x 5 mm H
Specifications: 200, 200 A
Suitable For Use With: DK, TS, TS IT, SE Series 600/800 mm W Enclosure
Type: Horizontal
Material: Electro Copper
30 - Day Returns
24/7 Technical Support
ISO 9001 Certified
- Potential equalization rail
- Current carrying capacity approximate 200 A

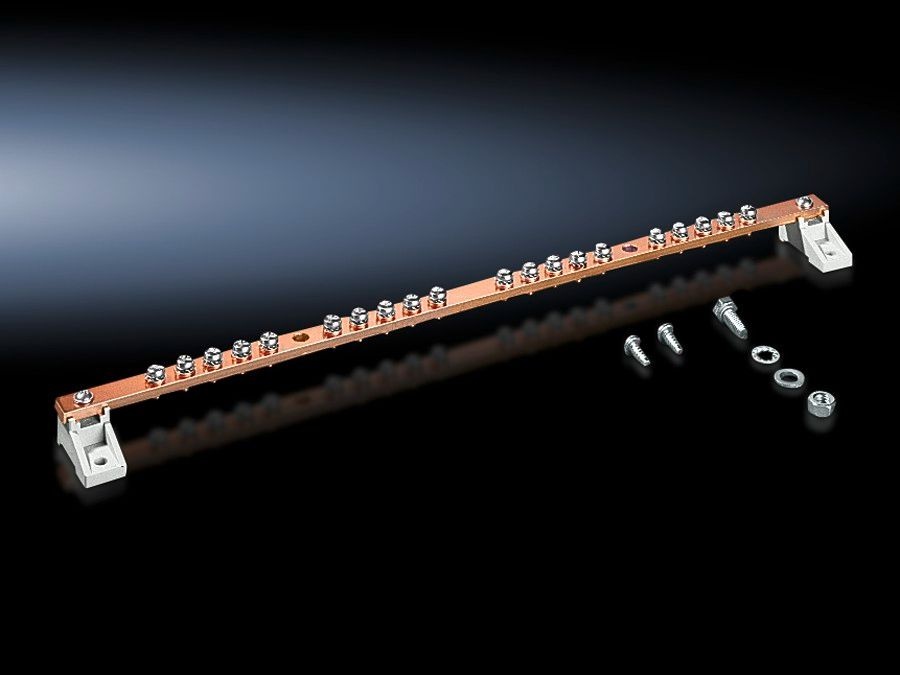

Rittal 7113000 Ground Rail
Brand: Rittal
Part Number: 7113000
Rittal Ground Rail, Horizontal, For Use With: DK, TS, TS IT, SE Series 600/800 mm W Enclosure, Specifications: 200 A, Electro Copper, 18 in L x 15 mm W x 5 mm H Dimensions
Additional Description: RTL -7113000 17 72 GROUNDING RAIL CABINETS 7113000
Catalog Description: Earth rail, horizontal, for TS, TS IT, SE, supply includes: Earth rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm, 20 connection points with M5 screws, 2 earth connections 25 mm², 2 isolators, Assembly parts, description: Potential equalisation rail, current carrying capacity approx. 200 A.
