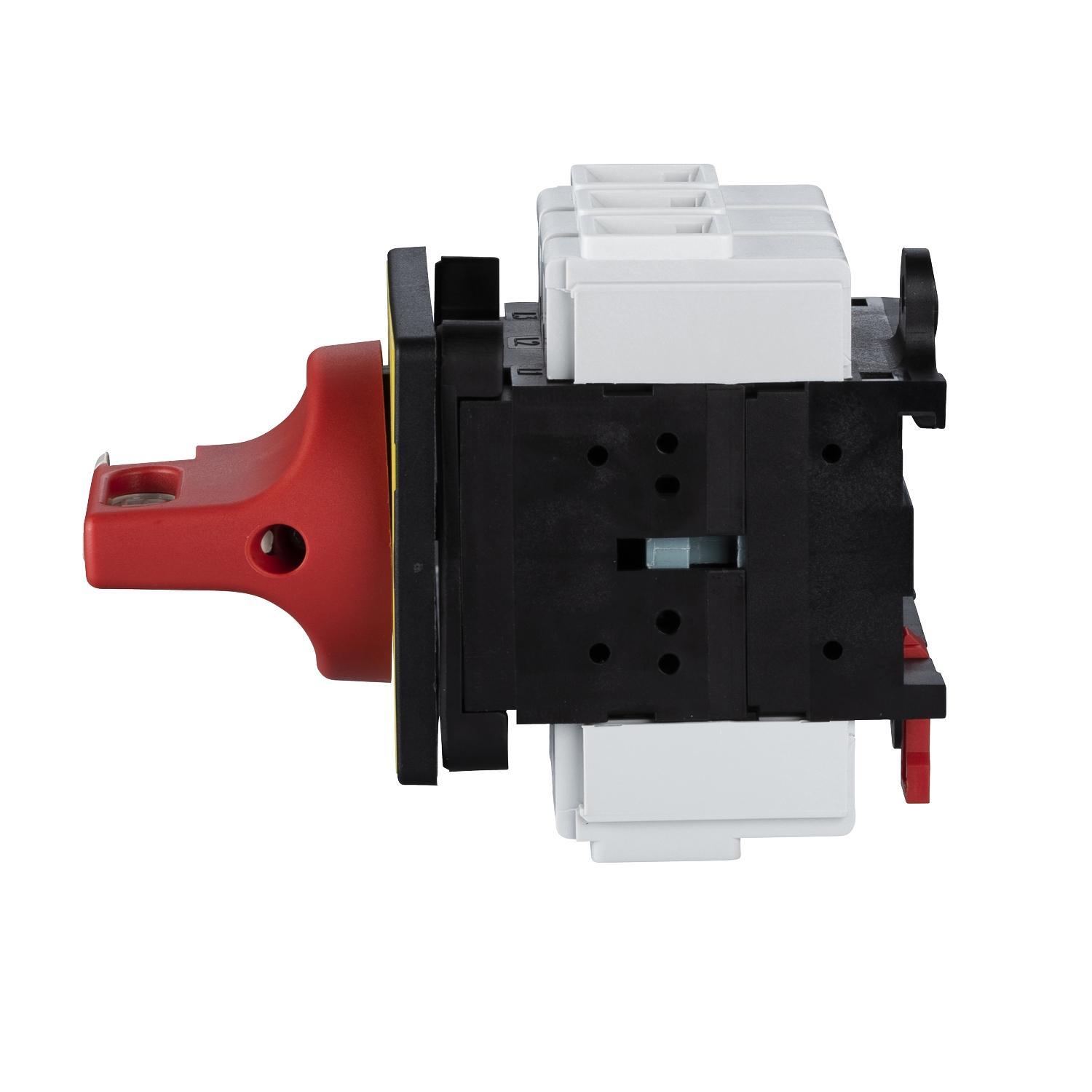

Schneider Electric VCF3 Tesys Vario Disconnect Switch
Part Number # VCF3
SKU # 833488
$254.36 / Each
$279.18/Each
Schneider Electric VCF3 Key Features
Brand: Schneider Electric
Part Number # VCF3
SKU #833488
Actuator Type: Padlockable Rotary Handle
Amperage Rating: 41.5 A, 63
Contact Form: 3NO
Dimensions: 2.36 in W x 3.27 in H, 60 mm W x 60 mm D x 83 mm H
Enclosure Type: IP20/IP65/Open
Frequency Rating: 50/60, 50/60 Hz
Number of Poles: 3
Short Circuit Current Rating (kA): 10, 10 kA
Temperature Rating (Degrees F): -20 to 50 deg C, -4 to 122
Terminal Type: Screw Clamp
Type: Emergency Stop High Performance Main
Voltage Rating: 690, 690 VAC
Color: Red/Yellow
Country of origin: DE
Mounting type: Clip/Surface, Surface/Clip
Manufacturer Name: Schneider Electric
UNSPSC: 39122233
UPC: 00785901104926
$254.36 / Each
$279.18/Each
Schneider Electric VCF3 Tesys Vario Disconnect Switch
Schneider Electric Square D TeSys Vario Disconnect Switch, Emergency Stop High Performance Main, 690 VAC, 41.5 A, 50/60 Hz Frequency, 3 Pole, 10 kA Short Circuit, 3NO Contact Form, Padlockable Rotary Handle Actuator, IP20/IP65/Open Enclosure, Clip/Surface Mounting, Screw Clamp Terminal, -20 to 50 deg C, 60 mm W x 60 mm D x 83 mm H Dimensions, Red/Yellow
Additional Description: SQD -VCF3 MAIN/EMERGENCY SWITCH 63A
Catalog Description: Switch disconnector,TeSys Control,for ON/emergency stop,63A,4 screws fixing,for mounting on door
VCF3 Application
Main Switch Disconnection ApplicationsVCF3 Item Features
- Available in open or enclosed version
- Local motor control
- Add on contact modules available
- Low profile handle available
VCF3 Standards
CCC Certified|CE Certified|CSA File No. LR81630 Class 3211 05|ECCN EAR99|GL Certified|IEC 60947-3/60529-2-1|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL File No. E164864 CCN NLRVSKU #833488Part Number #VCF3UNSPSC39122233UPC00785901104926
