Brand: Siemens

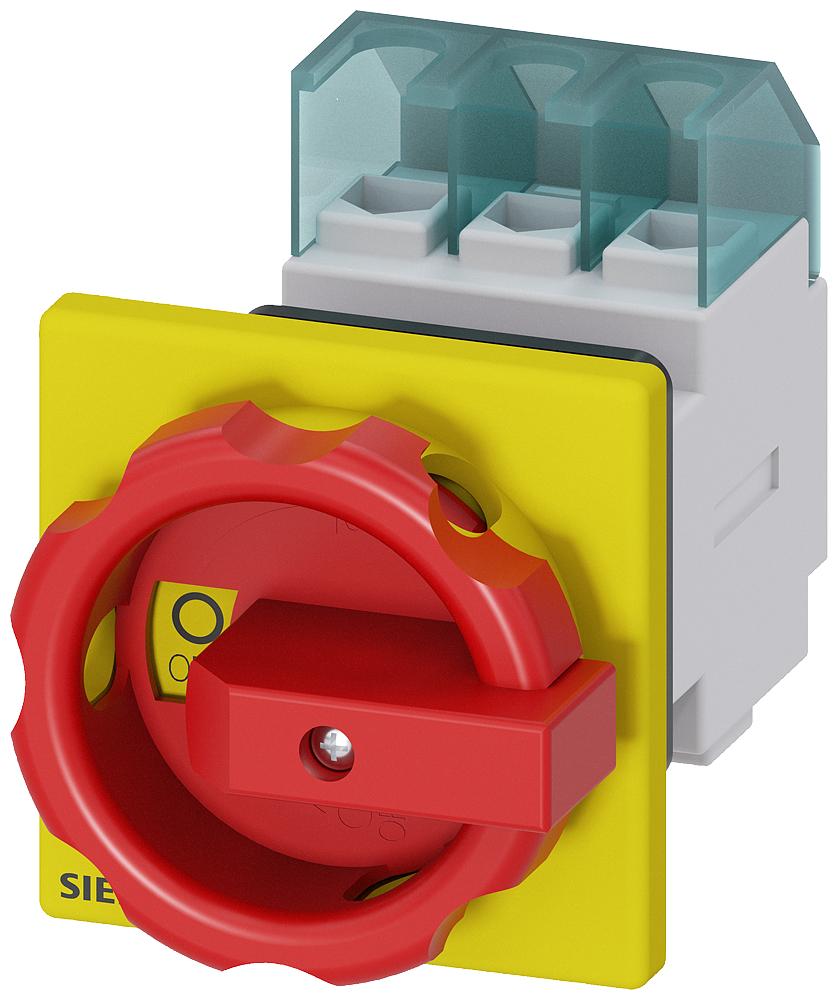

Siemens 3LD2254-0TK53 Sentron Disconnect Switch
Part Number # 3LD2254-0TK53
SKU # 2277053
$147.50 / Each
$209.00/Each
Siemens 3LD2254-0TK53 Key Features
Brand: Siemens
Part Number # 3LD2254-0TK53
SKU #2277053
Actuator Type: Rotary, Rotary Knob
Amperage Rating: 32, 32 A
Dimensions: 2.8 x 3.2 x 4.5, 2.8 x 3.2 x 4.5 in
Enclosure Type: IP65
Frequency Rating: 50/60, 50/60 Hz
Number of Poles: 3
Series: 3LD
Short Circuit Current Rating (kA): 50, 50 kA
Temperature Rating (Degrees F): -20 to 120, -20 to 120 deg F
Terminal Type: Box
Voltage Rating: 690, 690 VAC
Color: Red/Yellow Handle
Country of origin: DE
Mounting type: Center Hole/Front
Manufacturer Name: Siemens
UNSPSC: 39122233
UPC: 00754554729930
$147.50 / Each
$209.00/Each
Siemens 3LD2254-0TK53 Sentron Disconnect Switch
Brand: Siemens
Part Number: 3LD2254-0TK53
Sentron Disconnect Switch, Series: 3LD, 690 VAC, 32 A, 50/60 Hz Frequency Rating, 3 Pole, 50 kA Short Circuit, Rotary Actuator, IP65 Enclosure, Center Hole/Front Mount, Box Terminal, -20 to 120 deg F Temperature Rating, 2.8 x 3.2 x 4.5 in Dimensions, Red/Yellow Handle Color
Additional Description: SIEM-3LD2254-0TK53 DISC SW 32A ROT HDL 1HOLE R/Y 3P DOOR
Catalog Description: DISC SWITCH 3P R/Y ROTARY 32A 1HOLE DOOR ROTARY ACTUATOR RED/YELLOW CENTRAL-HOLE MOUNTING FRONT MOUNTING IU=32, P/AC-23A AT 400V=11,5KW EMGNCY MAIN CNTRL SWITCH 3-POLE
3LD2254-0TK53 Application
For switching main and auxiliary circuits, also for switching induction motors and other loads during maintenance and repair work3LD2254-0TK53 Item Features
- 3LD2 type switches are pad lockable in the OFF position
- For OEM disconnects
3LD2254-0TK53 Standards
ARRA Compliant|Buy American Act and RoHS Compliant|CCC, CE|CSA Certified|UL ListedSKU #2277053Part Number #3LD2254-0TK53UNSPSC39122233UPC00754554729930
