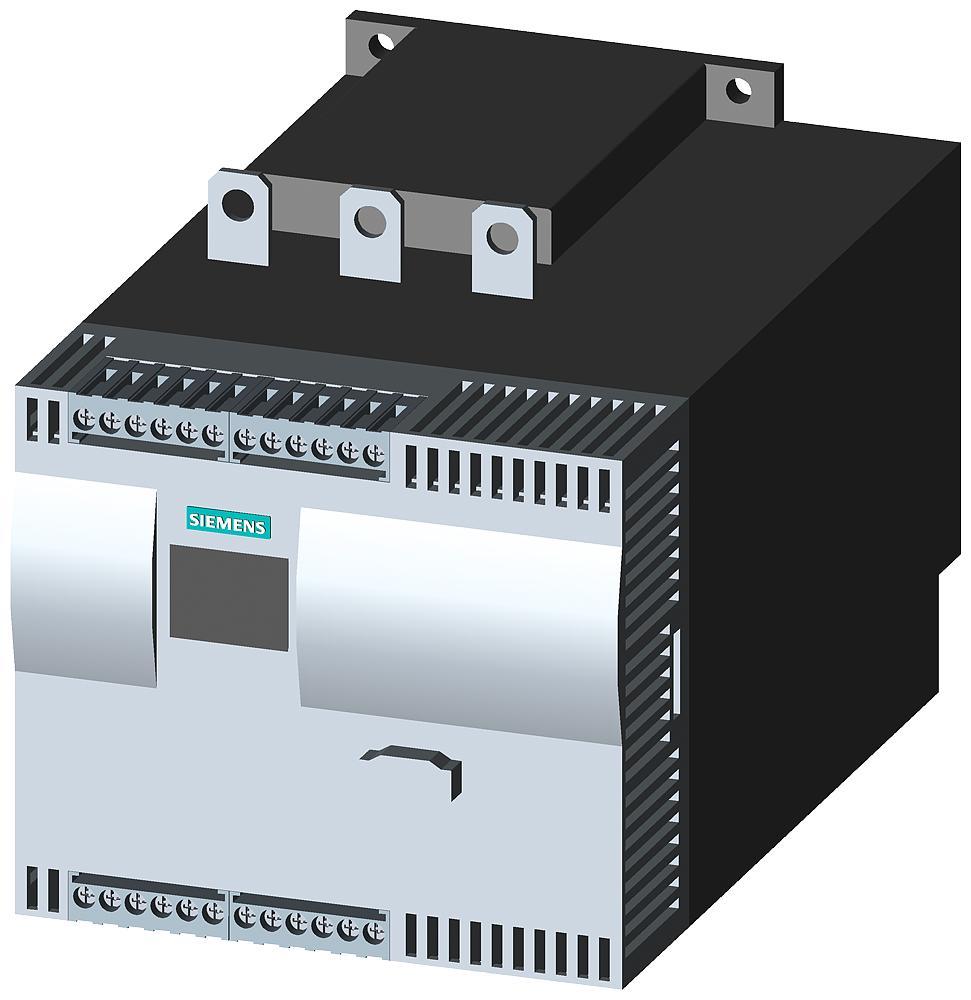

Siemens 3RW4435-6BC34 SIRIUS Soft Starter
Part Number # 3RW4435-6BC34
SKU # 2234569
$5522.63 / Each
$8404.00/Each
Siemens 3RW4435-6BC34 Key Features
Brand: Siemens
Part Number # 3RW4435-6BC34
SKU #2234569
Amperage Rating: 117/203, 117/203 A
Auxiliary Contact Rating: B300/R300, B300/R300 B300/R300
Coil Voltage: 115, 115 VAC
Dimensions: 200 mm H x 170 mm W x 270 mm D
Enclosure Type: IP00
Frequency Rating: 50/60, 50/60 Hz
Motor Power: 75 hp, 150 hp
Number of Poles: 3
Operating Temperature: 60, 60 deg C
Phase: 3
Series: 3RW44
Type: High Performance End Version 4
Voltage Rating: 200 to 460, 200 to 460 VAC
Wattage: 132, 132 kW
Connection type: Screw Terminal
Country of origin: CZ
Manufacturer Name: Siemens
UNSPSC: 39121521
UPC: 00754554923086
$5522.63 / Each
$8404.00/Each
Siemens 3RW4435-6BC34 SIRIUS Soft Starter
Brand: Siemens
Part Number: 3RW4435-6BC34
Siemens SIRIUS Soft Starter, High Performance End Version 4, Series: 3RW44, 200 to 460 VAC, 117/203 A, 50/60 Hz Frequency, 132 kW Wattage, 75 hp, 150 hp Motor, 115 VAC Coil, 3 Pole, 3 ph, Screw Terminal Connection, B300/R300 B300/R300 Auxiliary, IP00 Enclosure, 60 deg C Operating, 200 mm H x 170 mm W x 270 mm D Dimensions
Additional Description: SIEM-3RW4435-6BC34 SOFT START,117A,30/40/75HP,120V,SCRW
Catalog Description: Screw terminals 200-460 V AC, 115 V AC, common-3 203a, 150hp, standard 117a, 75hp, values with 460 V, 50 deg., SIRIUS soft starter
3RW4435-6BC34 Application
Pumps, Ventilators, Compressors, Cooling Systems, Industrial Refrigerating Systems, Water Transport, Conveying Systems, Hydraulics, Machine Tools and Mills3RW4435-6BC34 Item Features
- Equipped with modern, ergonomic user prompting the 3RW44 soft starters can be commissioned quickly and easily using a keypad and a menu prompted, multi-line graphic display with background lighting
- Soft starting with breakaway pulse, torque control or voltage ramp, adjustable torque or current limiting as well as any combination of these, depending on load type
- Integrated bypass contact system to minimize power loss
- Various setting options for the starting parameters such as starting torque, starting voltage, ramp up and ramp down time and much more in three separate parameter sets
- Start up detection, inside delta circuit for savings in terms of size and equipment costs
- Various ramp down modes selectable, free ramp down, torque controlled pump ramp down, combined DC braking
- Solid state motor overload and intrinsic device protection
- Interface for communication with the PC for more accurate setting of the parameters as well as for control and monitoring
- Simple integration to the motor feeder
- Simple mounting and commissioning
- Display of operating states and fault messages
- Connection to PROFIBUS and PROFINET with optional PROFIBUS DP or PROFINET module
- External display and operator module
3RW4435-6BC34 Standards
UL Listed|CCC Certified|CE Certified|CSA Certified|C-Tick Certified|IEC 60947-4-2SKU #2234569Part Number #3RW4435-6BC34UNSPSC39121521UPC00754554923086
