- Base box size requirements for P2 panels with standard line lugs, and fewer than 55 poles of 1 in module (BL, BQD, ED, xGB) branch breakers and provisions
- Unit spaces range from 9 in to 45 in (in 6 in increments)
- Boxes range from 26 in to 74 in high (in 6 in increments)
- Inclusion of optional modifications may require size increases that must be added to these base values to calculate the final box size for the panel

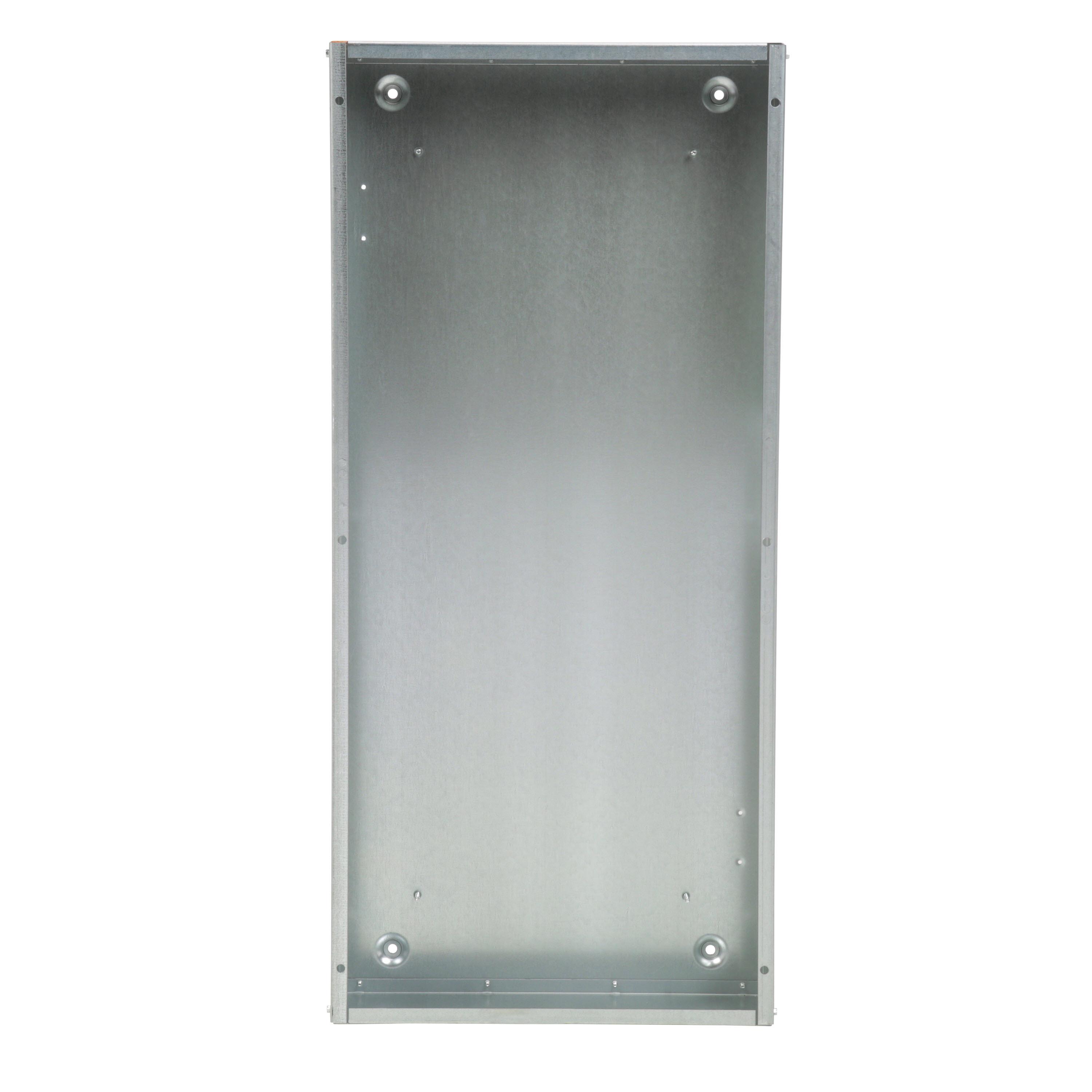

- Indoor enclosure
- Without ground bus enclosure
- For use with P2 Panelboard kit
Specifications
Brand: Siemens
Gauge: 16, 16 ga
NEMA Rating: NEMA 1
Type: Type 1, Type P2
Country of origin: CA
Depth: 5-3/4, 5-3/4 in
Height: 44, 44 in
Material: Steel
Mounting type: Surface
Width: 20, 20 in
Manufacturer Name: Siemens
UNSPSC: 39121103
UPC: 00783643189195
Item FeaturesLight Panel Applications
Item FeaturesBox and Hardware
Item Features
Item FeaturesARRA Compliant|Buy American Act Compliant|RoHS Compliant, PB1/UL50/50E/67
