Brand: Siemens

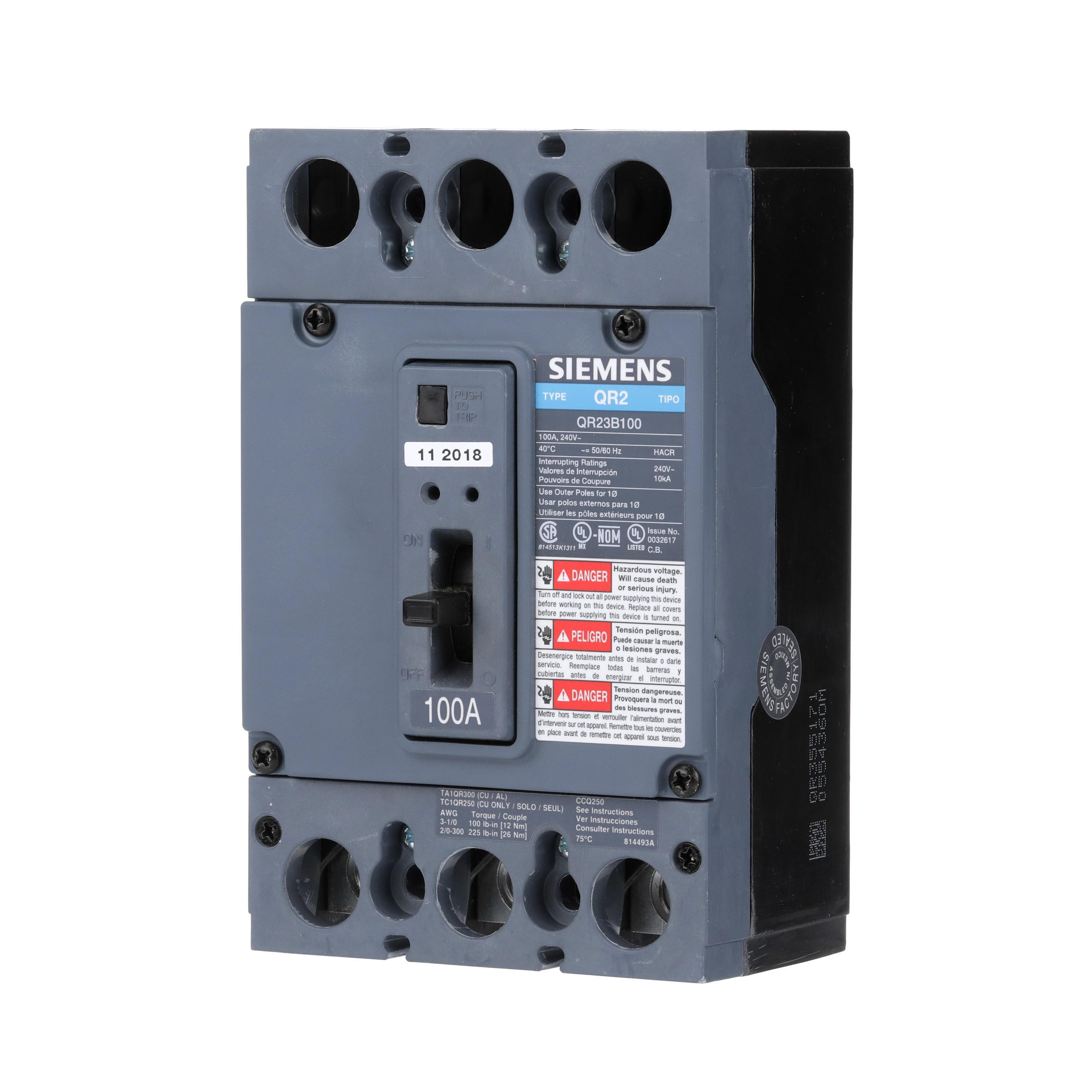

Siemens QR23B100 Molded Case Circuit Breaker
Part Number # QR23B100
SKU # 2335677
$830.09 / Each
$2846.00/Each
15 In Stock
Ships in 1 Business Day
Siemens QR23B100 Key Features
Brand: Siemens
Part Number # QR23B100
SKU #2335677
Amperage Rating: 100, 100 A
Dimensions: 7 in H x 4.5 in W x 2.53 in D
Enclosure Type: NEMA 1/3R
Frame: QR
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 10, 10 kA
Number of Poles: 3
Temperature Rating (Degrees F): 40, 40 deg C
Trip Type: Thermal Magnetic, Thermal/Magnetic
Type: Low Voltage
Voltage Rating: 240, 240 VAC
Wire Size: 3 AWG to 300 kcmil Cu
Connection type: Load Lug
Country of origin: MX
Mounting type: Flush
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00804766136627
$830.09 / Each
$2846.00/Each
Siemens QR23B100 Molded Case Circuit Breaker
Brand: Siemens
Part Number: QR23B100
Siemens Molded Case Circuit Breaker, Low Voltage, 240 VAC, 100 A, 50/60 Hz Frequency, 10 kA Interrupt, QR Frame, Thermal/Magnetic Trip, 3 Pole, Load Lug Connection, 3 AWG to 300 kcmil Cu Wire, NEMA 1/3R Enclosure, Flush Mounting, 40 deg C, 7 in H x 4.5 in W x 2.53 in D Dimensions
Additional Description: SIEM-QR23B100 BREAKER QR 3P 100A 240V 10KA
Catalog Description: SIEMENS LOW VOLTAGE MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. QR FRAME STANDARD 40C BREAKER. 100A 3-POLE (10KA AT 240V). SPECIAL FEATURES NO LUGS INSTALLED.
QR23B100 Application
Reverse Feed ApplicationsQR23B100 Item Features
- No lugs installed
QR23B100 Standards
UL 489|HACR RatedSKU #2335677Part Number #QR23B100UNSPSC39121601UPC00804766136627
