$203.42/EA
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Straight in wiring to help minimize service cable installation
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating enclosure
Specifications
Brand: Square D
Amperage Rating: 200, 200 A
Breaker Mounting: Panel
Breaker Type: QOM2
Dimensions: 14.25 in W x 3.75 in D x 29.86 in H
Enclosure Box Size: 9
Enclosure Type: NEMA 1
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 22, 22 kA
Number of Circuits: 30
Number of Poles: 1
Number of Spaces: 30
Type: 1-Phase Convertible Neutral
Voltage Rating: 120/240, 120/240 VAC
Wire Size: 4 AWG to 250 kcmil
Wiring Configuration: 3-Wire
Country of origin: US
Housing material: Steel
Mounting type: Plug-On
Manufacturer Name: Schneider Electric
UNSPSC: 39121101
UPC: 00785901242536

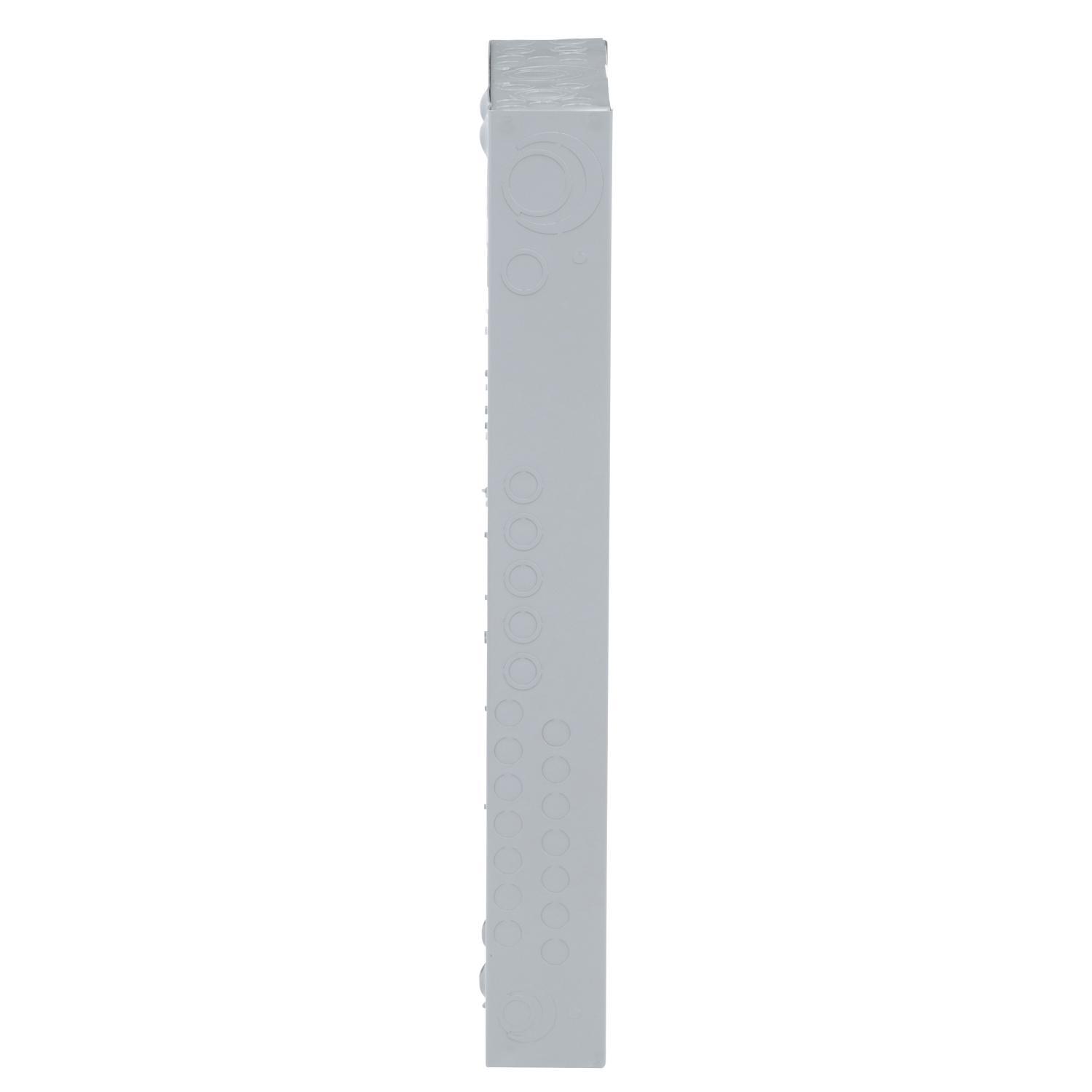

Square D QO130M200P Qo Main Breaker Load Center
Square D QO Main Breaker Load Center, 1-Phase Convertible Neutral, 120/240 VAC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 30 Circuits, QOM2 Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 30 Spaces, 4 AWG to 250 kcmil Wire, Plug-On Mounting, NEMA 1 Enclosure, 9 Enclosure Box, Steel Housing Material, 14.25 in W x 3.75 in D x 29.86 in H Dimensions
Additional Description: SQD -QO130M200P QO PLUG-ON NEUT LC N1 1PH MB 240V 200A
Catalog Description: Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main breaker, PoN, NEMA1, UL
Item FeaturesFor residential, commercial and industrial requirements to protect electrical systems, equipment and people applications
Item Features
Item FeaturesRoHS Compliant|UL Listed|NOM Certified|CSA Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
