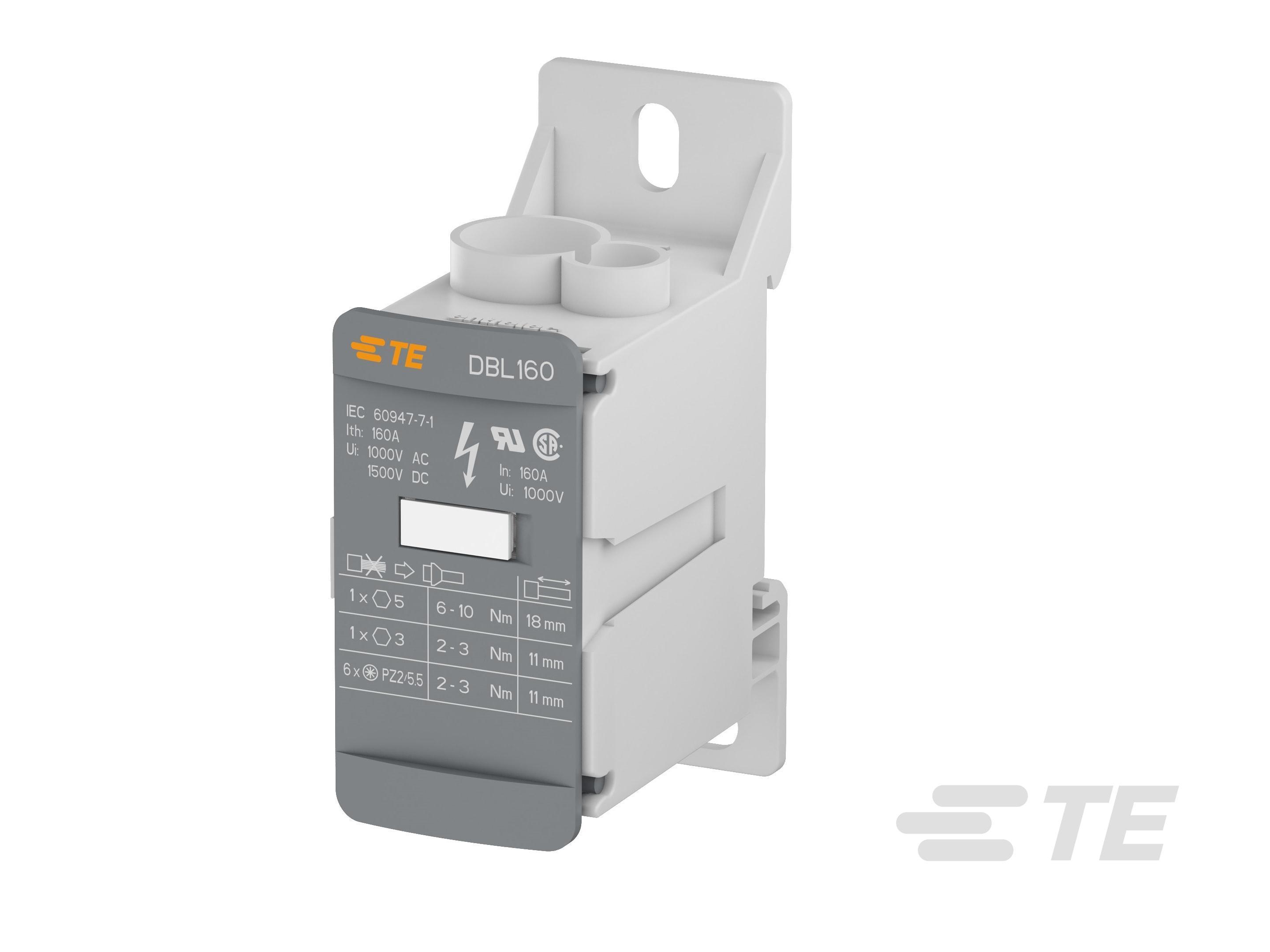

TE Connectivity 1SNL316010R0000 Power Distribution Terminal Block
Image Disclaimers Message
TE Connectivity 1SNL316010R0000 Power Distribution Terminal Block
TE Connectivity 1SNL316010R0000 Power Distribution Terminal Block
Part Number # 1SNL316010R0000
SKU # 2320598
$31.18 / Each
$54.15/Each
22 In Stock
Ships in 1 Business Day
ENTRELEC 1SNL316010R0000 Key Features
Brand: ENTRELEC
Amperage Rating: 135/160 A, 160 A
Dimensions: 2.645 in H x 0.995 in W x 1.788 in D, 28.2 mm W x 50.7 mm D x 75 mm H
Number of Poles: 1
Series: DBL160, SNK
Short Circuit Current Rating (kA): 100 kA
Type: DIN Rail Feed-Through Screw Clamp, Single Pole
Voltage Rating: 1000 V, 1000 VAC, 1500 VDC, 1000 VAC/1500 VDC
Wire Size: 2/0 AWG Stranded
Color: Gray, Grey
Country of origin: IN
Material: Polyamid, Polyamide
Manufacturer Name: ABB, TE Connectivity
UNSPSC: 39121410
UPC: 03472599856578
$31.18 / Each
$54.15/Each
TE Connectivity 1SNL316010R0000 Power Distribution Terminal Block
Brand: ENTRELEC
Part Number: 1SNL316010R0000
ABB Power Distribution Terminal Block, DIN Rail Feed-Through Screw Clamp, Series: DBL160, 1000 VAC, 1500 VDC, 135/160 A, 1 Pole, 2/0 AWG Stranded Wire, 100 kA Short Circuit, Polyamid, Gray, 28.2 mm W x 50.7 mm D x 75 mm H Dimensions
Additional Description: TEC -1SNL316010R0000 DBL160 Screw Clamp Power Distribution Blocks 1SNL316010R0000
Catalog Description: Power Distribution Blocks, Single Pole, 1 Pole, 160 A Current Rating (UL), 8 Position, Wire & Cable, Power, DIN Rail, -55 – 110 °C [-67 – 230 °F]
ApplicationFor PowerItem Features- 3-configurations: distribute unipolar and multipolar power lines or combine several inputs
- Mount it on din rail or plate and save up to 50% rail space compared to conventional copper bars
- Reduce the assembly time by 80% by avoiding to use fastening and isolating components
- Increase the number of outputs by using the optional input and connecting two DBL together
- Easy identification with the reversible cover and delivered pre-printed markers L1, L2, L3, N, PE, +, -
- 135 A aluminum, 160 A copper
StandardsEU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|UL 94V-0|UL Listed|CSA Certified|IP10SKU #2320598Part Number #1SNL316010R0000UNSPSC39121410UPC03472599856578
