Thomas & Betts 161LR-D5250 Elastimold Loadbreak Elbow Connector
Part Number # 161LR-D5250
SKU # 2396327
$116.46 / Each
Thomas & Betts 161LR-D5250 Key Features
Brand: Thomas & Betts
Part Number # 161LR-D5250
SKU #2396327
Amperage Rating: 200, 200 A
Conductor Size: 2/0 AWG, 3/0 AWG
Conductor Type: Compact/Compressed/Solid/Stranded
Connector Type: Compression
Dimensions: 2.92 in Dia x 7.44 in W x 9.03 in H
Series: 161LR
Voltage Rating: 15, 15 kV
Color: Black
Country of origin: US
Material: EPDM Rubber
Insulation Diameter: 0.89 to 1.22, 0.89 to 1.22 in
Manufacturer Name: ABB
UNSPSC: 39121421
UPC: 00075114236300
$116.46 / Each
- Elastimold Loadbreak Elbow Connector, Series: 161LR, 15 kV, 200 A, 2/0 AWG, 3/0 AWG Conductor, Compact/Compressed/Solid/Stranded Conductor, 0.89 to 1.22 in Diameter Insulation, Compression Connector, EPDM Rubber, Black, 2.92 in Dia x 7.44 in W x 9.03 in H Dimensions
161LR-D5250 Application
For connecting to and operating 15 kV class, 200 A distribution apparatus, it provides a convenient method to connect/disconnect cable and equipment on power distribution systems161LR-D5250 Includes

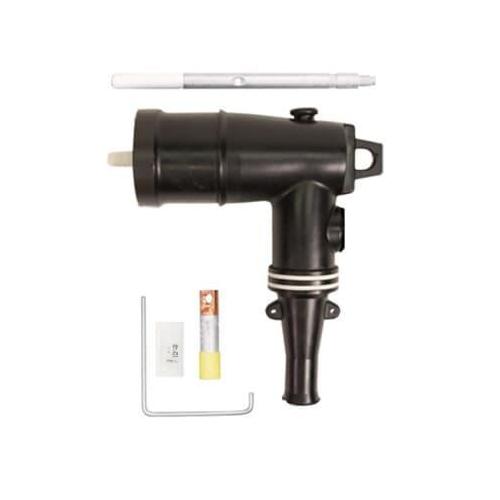

Elbow Connector Housing, Bi-Metal Compression Lug, Probe, Probe Wrench, Lubricant Tube, Crimp Chart and Installation Instructions161LR-D5250 Item Features
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Long bi-metal compression lug is standard
- Wide cable range with minimum number of cable sizes
- 2/0 AWG stranded, 3/0 AWG solid
161LR-D5250 Standards
ANSI/IEEE 386SKU #2396327Part Number #161LR-D5250UNSPSC39121421UPC00075114236300
