Brand: Thomas & Betts

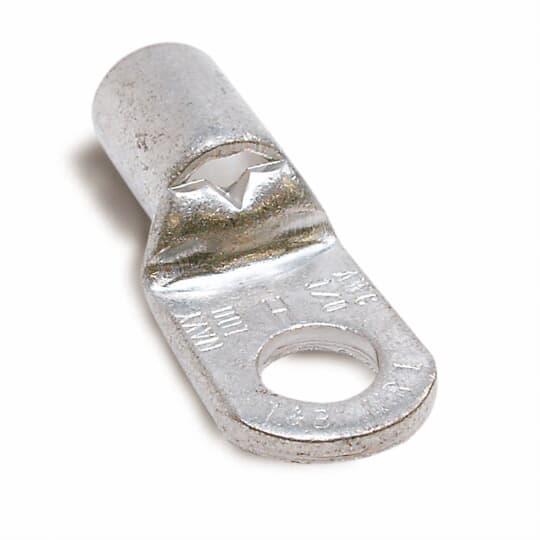

Thomas & Betts D10361 Sta-Kon Ring Terminal
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts D10361 Sta-Kon Ring Terminal
Brand: Thomas & Betts
Thomas & Betts D10361 Sta-Kon Ring Terminal
Part #:D10361
SKU #: 39191
$0.90/EA
Key Features
Part #:D10361
SKU #: 39191
Brand: Thomas & Betts
Barrel Type: Tubular
Conductor Size: 8, 8 AWG
Finish: TiN Coated
Series: D Series
Specifications: 0.28 in Clearance
$0.90/EA
- Non-insulated ring terminals are made of electrolytic copper for high conductivity/corrosion resistance
- Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Serrated barrel to increases grip-on wire
- 200 pieces/pack
Specifications
Brand: Thomas & Betts
Barrel Type: Tubular
Conductor Size: 8, 8 AWG
Finish: TiN Coated
Series: D Series
Specifications: 0.28 in Clearance
Temperature Rating (Degrees F): 150, 150 deg C
Tongue Size: 0.41 in W x 0.04 in THK
Tongue Type: Ring
Type: Non-Insulated
Voltage Rating: 600, 600 VAC
Color: Metallic
Country of origin: MX, US
Length: 1.15, 1.15 in
Material: Copper
Manufacturer Name: ABB
UNSPSC: 39121432
UPC: 00786210829555
Thomas & Betts D10361 Sta-Kon Ring Terminal
Sta-Kon Ring Terminal, Non-Insulated, Series: D Series, 8 AWG Conductor, #10 Stud, 1.15 in Length, Tubular Barrel, Ring Tongue, 0.41 in W x 0.04 in THK Tongue, 600 VAC, 0.28 in Clearance, 150 deg C, Copper, Tin Coated, Metallic
Additional Description: TB -D10361 NONINS - TUB RING TERM, 8, No10, ME METALLI
Catalog Description: Non-Insulated Tubular Ring Terminal, Length 1.15 Inches, Width .41 Inches, Bolt Hole #10, Wire Range 8/8AN, Copper, Tin Plated
Item FeaturesFor WT115A, TBM6, TBM6S and WT3185 tools
Item Features
Item FeaturesUL Listed|UL 94 V-0 Flammability Rated|UL File No. E9809|CSA Certified
