Brand: Thomas & Betts

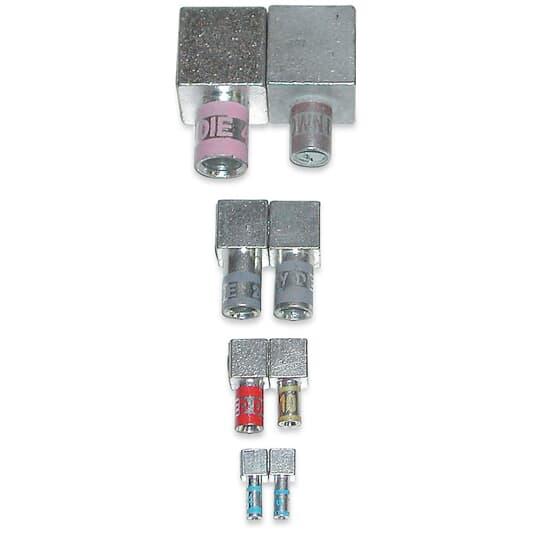

Thomas & Betts MD1M-2 Color-Keyed Kube Motor Lead Pigtail Disconnect
Part Number # MD1M-2
SKU # 2236275
$308.79 / 6Each
Thomas & Betts MD1M-2 Key Features
Brand: Thomas & Betts
Part Number # MD1M-2
SKU #2236275
Conductor Size: 1, 1 AWG
Conductor Type: Beryllium Copper
Dimensions: 1.23 in L x 1 in W
Insulation Type: Boot MDBOOT2
Specifications: Body Size 2, Tin Plated, Body Size 2, Tin Plated Finish
Type: 1-Load Male
Voltage Rating: 600, 600 VAC to 5 kV
Color code: Green
Country of origin: MX
Material: Copper
Manufacturer Name: ABB
UNSPSC: 39121447
UPC: 00786210796451
$308.79 / 6Each
- Color-Keyed Motor Lead Pigtail Disconnect, 1-Load Male, Beryllium Copper Conductor, 1 AWG Conductor, Die Code: 37, 600 VAC to 5 kV, 0.37 in Stud, Boot MDBOOT2 Insulation, 9/16 in Strip Length, Specifications: Body Size 2, Tin Plated, Copper, Green Color Code, 1.23 in L x 1 in W
MD1M-2 Application
For 600 VAC and 5 kVAC applicationsMD1M-2 Item Features
- One line to one load (2-wire)
- Fast, snap together assembly offers maximum labor savings
- Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot
- Quick disconnect, no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure
- Meet or exceed electrical and mechanical performance of bolted connections
- Constructed of high conductivity copper with tin plated finish
- Thermoplastic elastomer insulator
- Quick, reliable change out of electric motors with no bolting, taping or loose connections
- Total assembly fits into tight motor housings
MD1M-2 Standards
CSA Certified|UL File No. E9809SKU #2236275Part Number #MD1M-2UNSPSC39121447UPC00786210796451
