Brand: Thomas & Betts

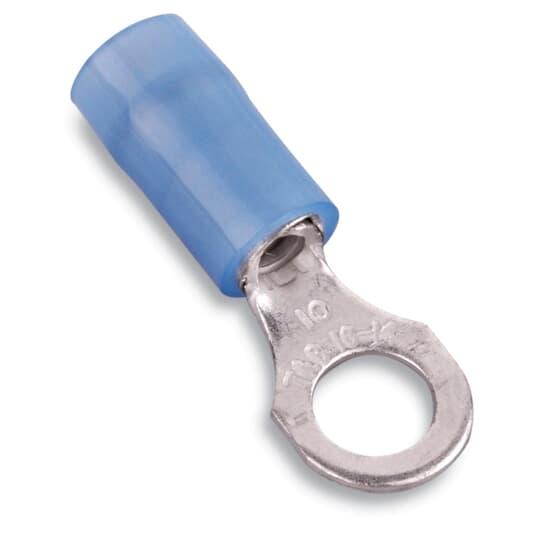

Thomas & Betts RB14-4 Sta-Kon Ring Terminal
Part Number # RB14-4
SKU # 2183328
$144.70 / 100Each
Thomas & Betts RB14-4 Key Features
Brand: Thomas & Betts
Part Number # RB14-4
SKU #2183328
Barrel Type: Insulation Grip Sleeve
Conductor Size: 18 to 14, 18 to 14 AWG
Finish: TiN Coated
Series: RB Series
Specifications: 0.162 in Dia Maximum Insulation, 0.14 in Clearance, Nylon Insulation
Temperature Rating (Degrees F): 105, 105 deg C
Tongue Size: 0.26 in W x 0.03 in THK
Tongue Type: Ring
Type: Insulated
Voltage Rating: 600, 600 VAC
Color: Blue
Country of origin: US
Length: 0.72, 0.72 in
Material: Copper
Manufacturer Name: ABB
UNSPSC: 39121432
UPC: 00786210803999
$144.70 / 100Each
Thomas & Betts RB14-4 Sta-Kon Ring Terminal
Brand: Thomas & Betts
Part Number: RB14-4
Sta-Kon Ring Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, #4 Stud, 0.72 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.26 in W x 0.03 in THK Tongue, 600 VAC, 0.162 in Dia Maximum Insulation, 0.14 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Blue
Additional Description: TB -RB14-4 INSNYL RING TERM 18-14 BOLT No4 BLU
Catalog Description: Nylon Insulated Ring Terminal, Length .72 Inches, Width .26 Inches, Maximum Insulation .162, Bolt Hole #4, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
RB14-4 Application
For WT2000, WT112M, WT145C, ERG4001, ERG4003 and WT145A toolsRB14-4 Item Features
- Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- 100 pieces/pack
RB14-4 Standards
UL Listed|UL 94 V-2 Flammability Rated|UL File No. E9809|CSA CertifiedSKU #2183328Part Number #RB14-4UNSPSC39121432UPC00786210803999
