Brand: Wago
WAGO 750-489 4-channel analog input
Image Disclaimers Message
Brand: Wago
WAGO 750-489 4-channel analog input
Brand: Wago
WAGO 750-489 4-channel analog input
Part #:750-489
SKU #: 2379251
$1439.51/EA
Key Features
Part #:750-489
SKU #: 2379251
Brand: Wago
Color: Blue
Connection technology: 16 x CAGE CLAMP®
Country of origin: DE
Depth: 67.8 mm / 2.669 inch
Height: 100 mm / 3.937 inch
$1439.51/EA
Specifications
Brand: Wago
Color: Blue
Connection technology: 16 x CAGE CLAMP®
Country of origin: DE
Depth: 67.8 mm / 2.669 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Intrinsic safety Ex i: Yes
Isolation: Acc. to EN/IEC 60079-11: 300 VAC system/supply; acc. to EN/UL 61010-2-201: 1200 VDC system/supply/channel
Marking: ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of analog inputs: 4
Protection type: IP20

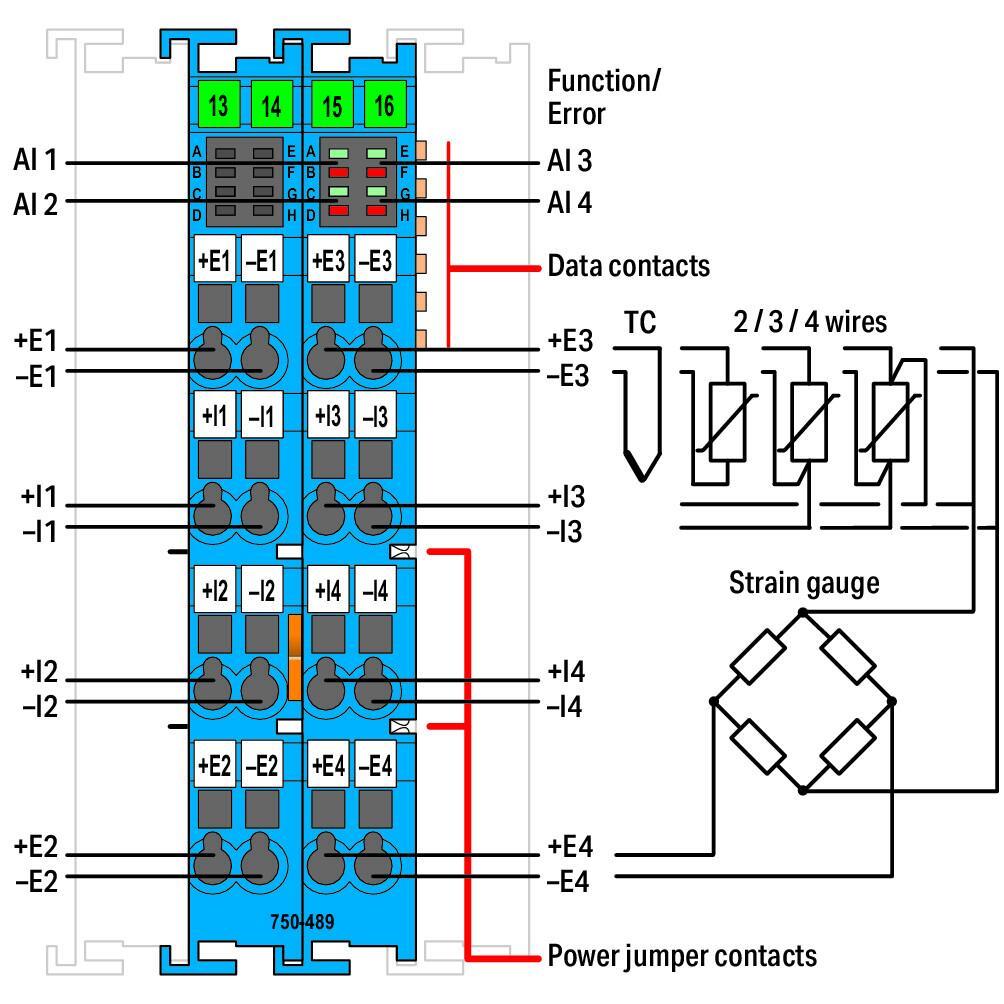

Sensor connection: 4 x (2-wire); RTD/R: 3 wires; 4 wires
Signal type: Resistance thermometers || Resistors || Potentiometer positions || Thermocouple || MV sensors
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Total number of channels (module): 4
Vibration resistance: 4g per IEC 60068-2-6
Weight: 99.300 g
Width: 24 mm / 0.945 inch
UNSPSC: 32151702
UPC: 04055143948029
WAGO 750-489 4-channel analog input
Additional Description: WAGO-750-489 4AI RTD/TC, BLUE 60421718
Catalog Description: 4-channel analog input; RTD/TC/Strain Gauge; 16 bits; Diagnostics; Intrinsically safe
