Specifications
Brand: Wago
Circuit type: 2-wire connection
Color: Gray
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
Depth: 94 mm / 3.701 inch
Mounting type: DIN-35 rail
Output voltage range: DC 0 … 30 V
Protection type: IP20
Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Standards/Specifications: EN 61000-6-2; EN 61000-6-3; EN 61373; EN 61010-2-201; UL 508
Status indicator: Yellow LED
Switching current (min.): 50 µA
Switching frequency: ≤ 20 Hz
Turn-off time: ≤ 10 ms
Turn-on time: ≤ 4.5 ms
Weight: 30.100 g
Width: 6 mm / 0.236 inch
UNSPSC: 43232306
UPC: 04045454835569

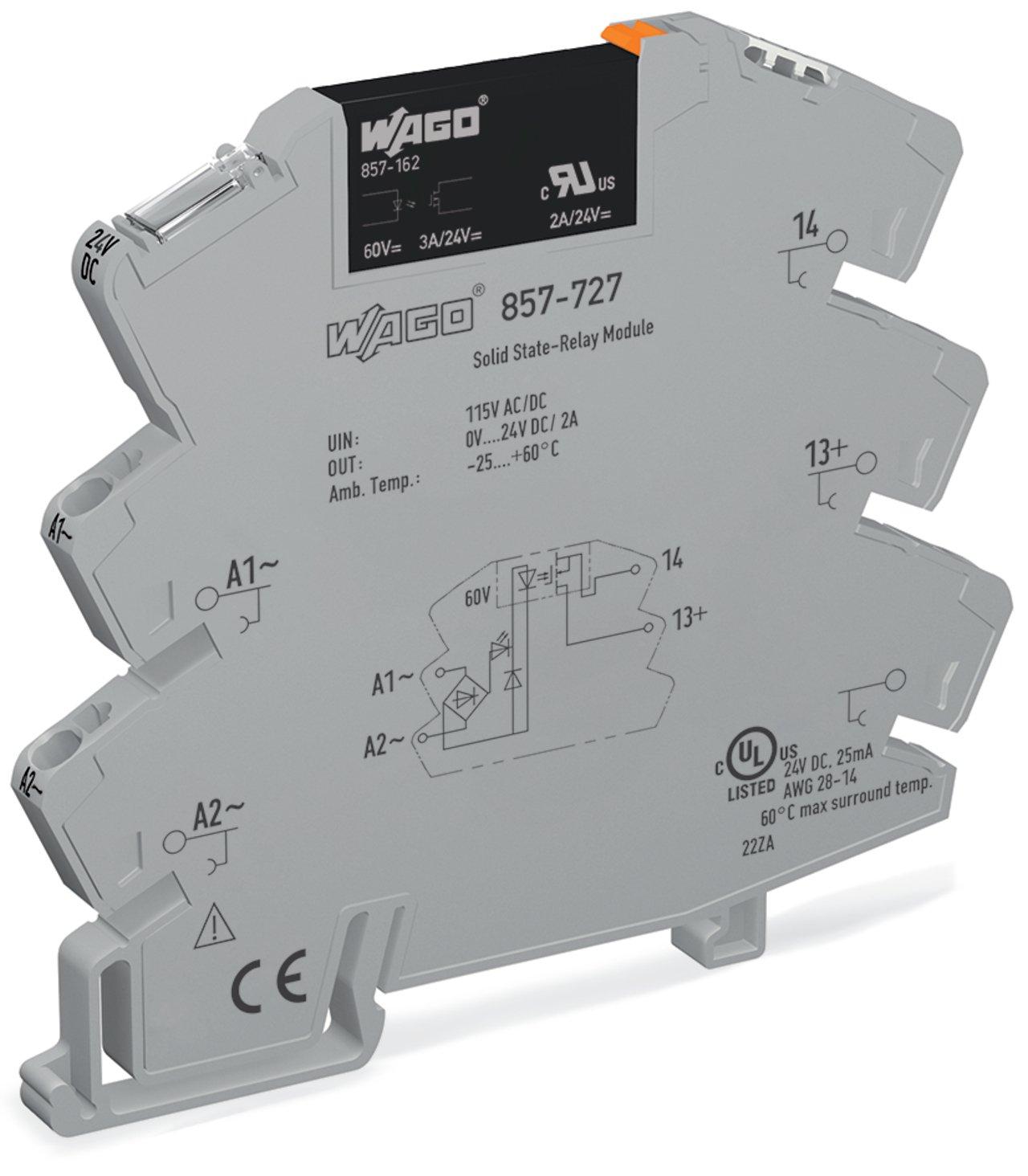

WAGO 857-727 Solid-state relay module
Additional Description: WAGO-857-727 relaymodl Noml Vlt 115VAC/DC GRA 8570727 08570727
Catalog Description: Solid-state relay module; Nominal input voltage: 115 V AC/DC; Output voltage range: 0 … 30 VDC; Limiting continuous current: 3 A; 2-wire connection; Yellow status indicator; Module width: 6 mm; gray
